ADR233B
3.14 Disturbance Record
Disturbance record is continuously recorded till the memory is available. Whenever the memory
gets full, the oldest record automatically gets erased and the new record will record on the
same. (Like First In First out Logic).
Disturbance record stores 12 samples per cycle. The same record can be shown in ASHIDA
Relay Talk System Version2. The following window shows the recorded disturbance record.
3.14.1 Show the Disturbance Record from Device
To View Disturbance Record right click on ‘Disturbance Record’.
Following window will appear on screen.

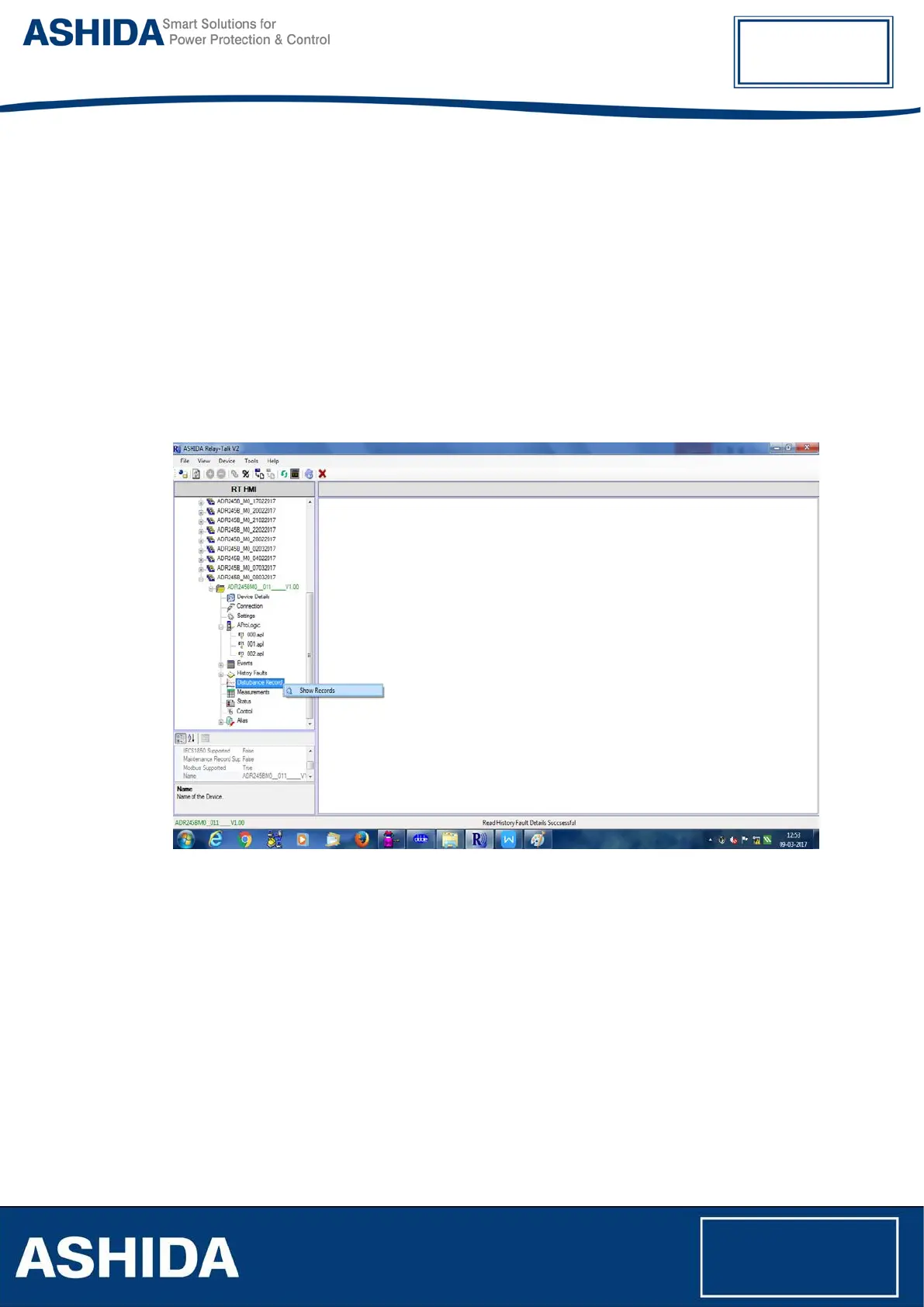

Figure 48: Show Disturbance Record
