ADR233B
3.18.18 GOOSE subscriber functionality can be globally enabled or disabled

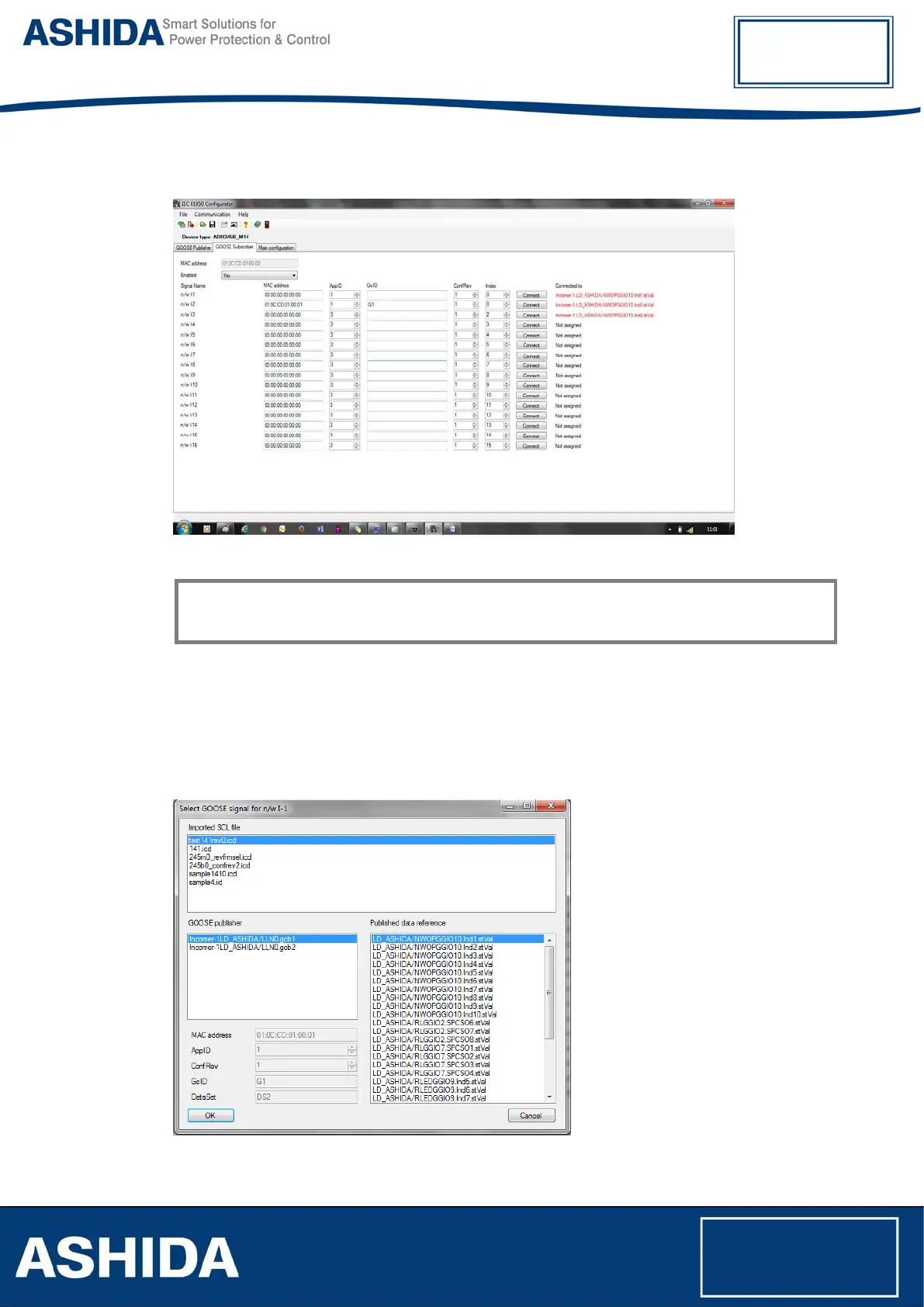

Figure 60: Goose Subscriber
Note: Network Input 1(n/w I -1) signal is Subscriber which can be used to receive configured signal
from any other IED’s
To facilitate configuration parameters of data published by other devices can be imported from
SCL files using Import SCL... option from File menu. Imported signals can assigned to inputs by
clicking Connect button. After that dialog window will popup allowing user to select published
signal by reference. After accepting the selection AppID, Index and MAC Address for subscriber
will be updated.
