Ashida ADR233B - Ethernet Network; Ethernet Switch

Doc ID : ADR233B/IM/01
Ref ID : ADR233B/IM/CS
Rev No. : 05
Page No. : 186 of 479
ADR233B
Port 1:
Port 1 is the Ethernet port. Ethernet port can be used for interfacing of relay with Ethernet
network. ADR233B Ethernet port options include single or dual copper Ethernet port
configuration. The Port 1 can be assigned as a “fixed”, “failover”, “switch” mode options. Dual
port option can be assigned for redundancy purpose or it can also be assigned as an

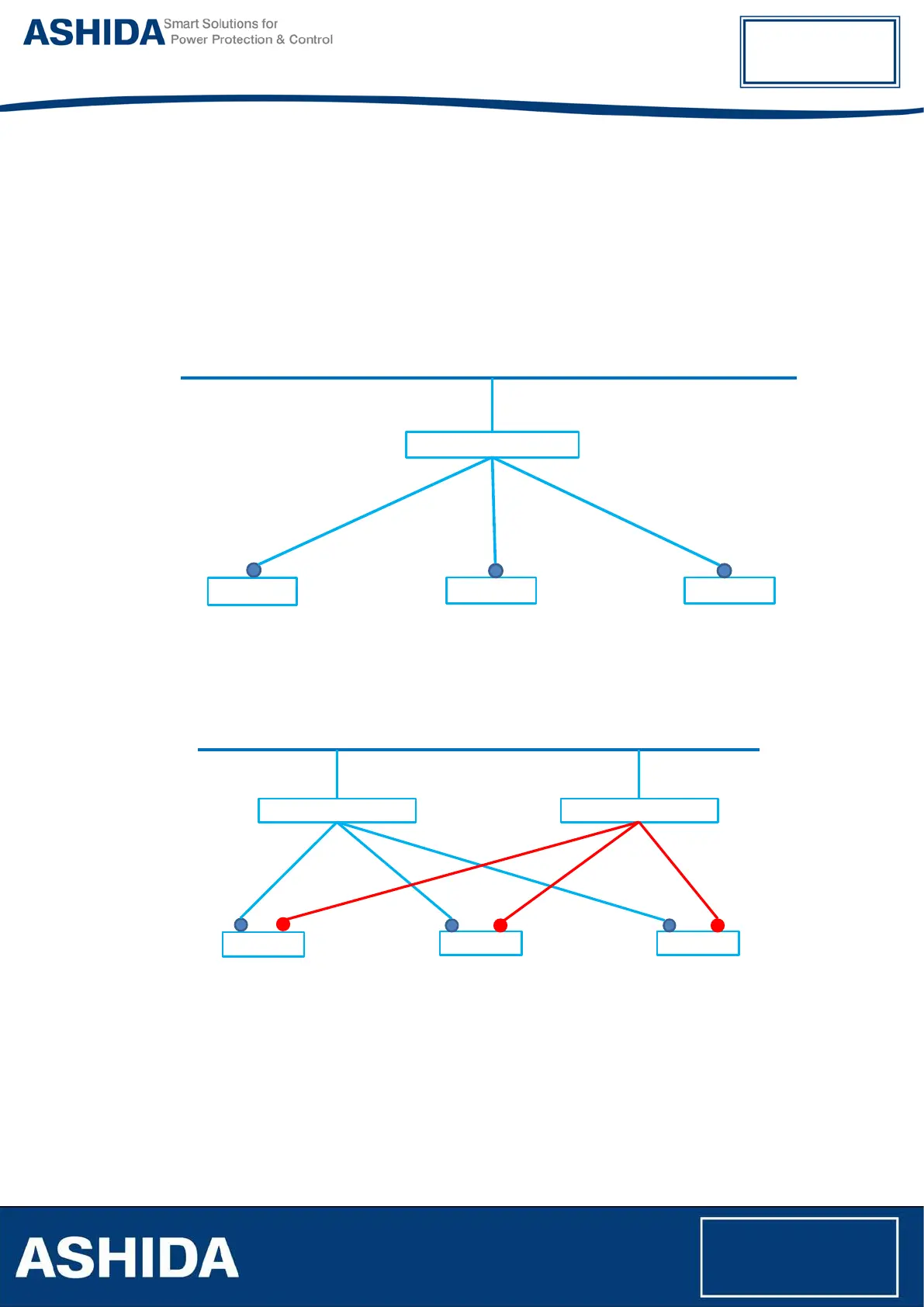

unmanaged switch”. Below communication structures explains configuration in
ETHERNET NETWORK
ETHERNET SWITCH
ADR233B
ADR233B ADR233B
Port 1
Port 1 Port 1
Fixed Mode Option
ETHERNET NETWORK
ETHERNET SWITCH
ADR233B
ADR233B ADR233B
Port 1A
Port 1A
Port 1A
Fail Over Mode Option : If Primary port fails then
data transfer through Secondary port
ETHERNET SWITCH
Port 1B
Port 1B Port 1B
