Ashida ADR233B - Thermal Overload

ADR233B
Doc ID : ADR233B/IM/01
Ref ID : ADR233B/IM/PS
Rev No. : 05
Page No. : 151 of 479
0.1
1.0
10.0
100.0
1000.0
1.0 10.0
A
B
C
D
E
TIME IN SECONDS
THERMAL OVERLOAD
MULTIPLE OF THERMAL THRESHOLD SETTING
Te = 10, K = 1.05
A : THERMAL STATE = 0%,
B : THERMAL STATE = 30%,
C : THERMAL STATE = 50%,
D: THERMAL STATE = 70%,
E : THERMAL STATE = 90%

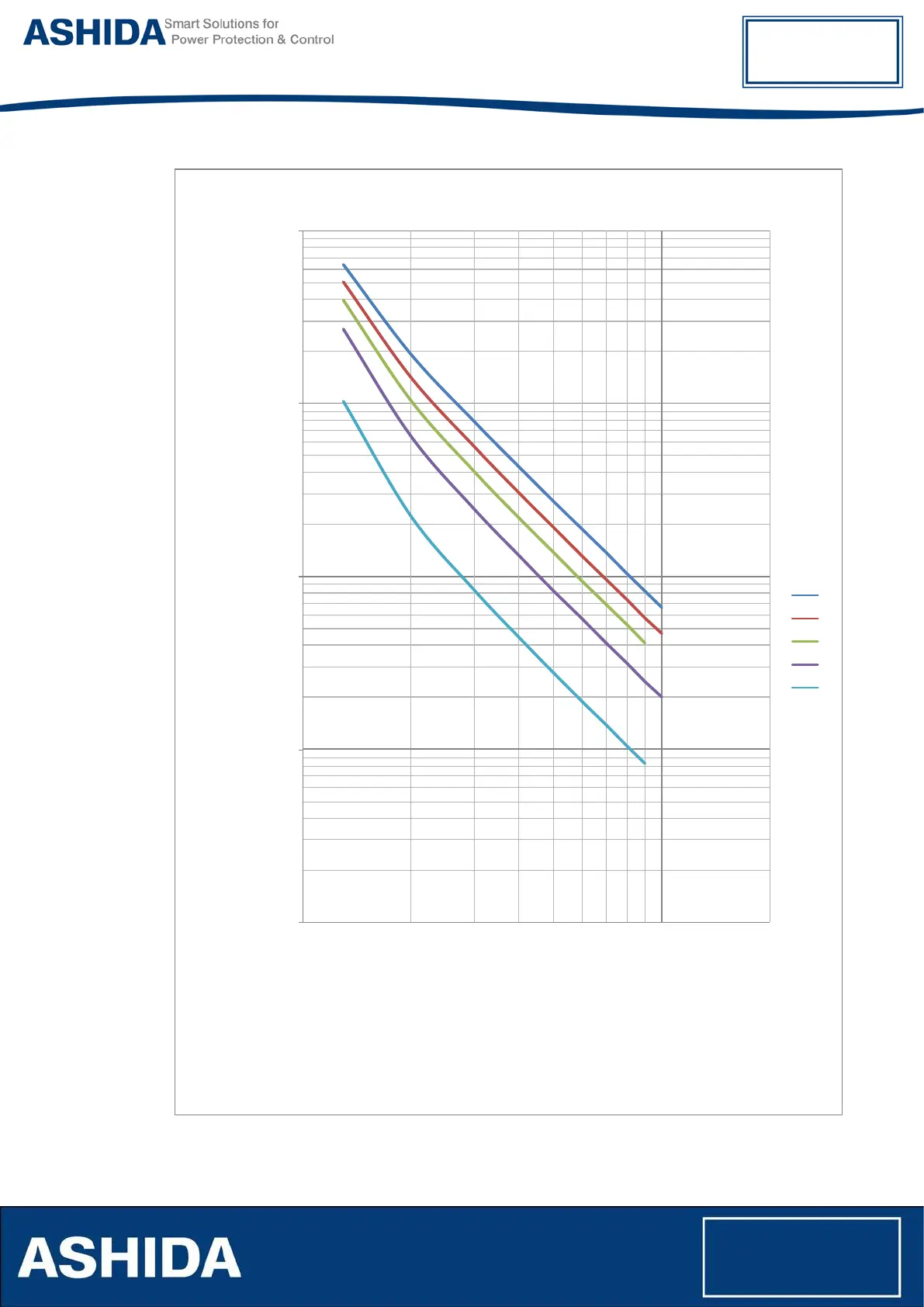

Figure 28: Thermal Overload Characteristics
