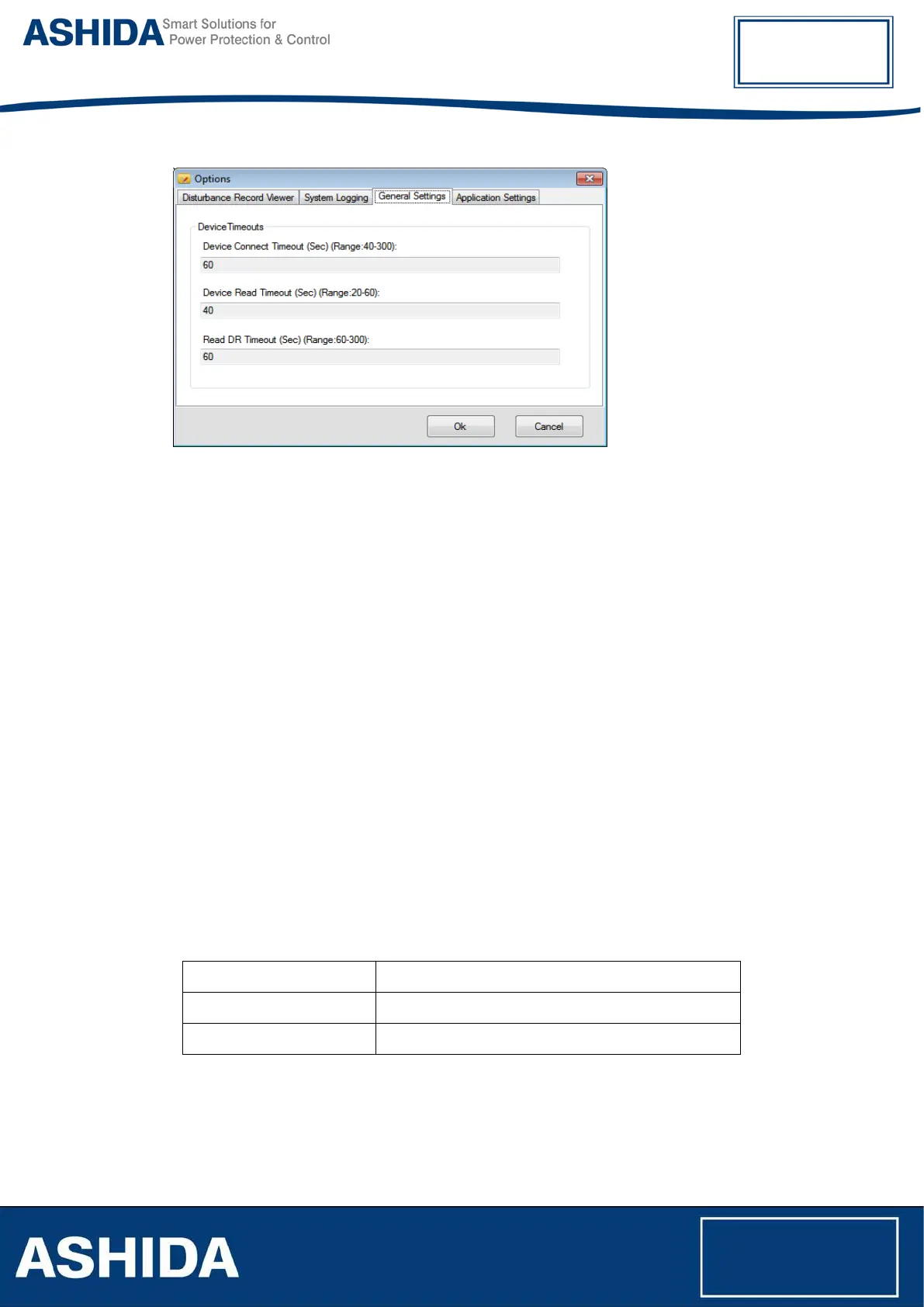

Figure 56: General Settings Information
3.18.4 Introduction
IEC 61850 Configurator is a software tool specifically designed to interface with ASHIDA relays.
This section provides a brief overview of IEC 61850 Configurator is intended to get you up and
running.
3.18.5 Overview of the IEC 61850 Configurator
IEC 61850 Configurator provides online as well as offline utility to configure GOOSE interface of
ASHIDA Relay series.
3.18.6 Key Features
• Configuration of GOOSE publisher interface
• Configuration of GOOSE subscriber interface
• Ability to export ICD file for configured device
• Ability to import SCL files with data of GOOSE publishers from other devices
3.18.7 Environment
IEC 61850 Configurator requires the following hardware/software platform to run the application.
Requirement Description
Operating System Windows XP/7/8/8.1/10
Dot net Framework .Net Framework 3/3.5
3.18.8 IEC 61850 Configurator
This section will guide the user on how to use IEC 61850 Configurator, do the configuration for
ASHIDA devices and interface with the device.
