ADR233B
3.18.16 Each GCB can be enabled or disabled.

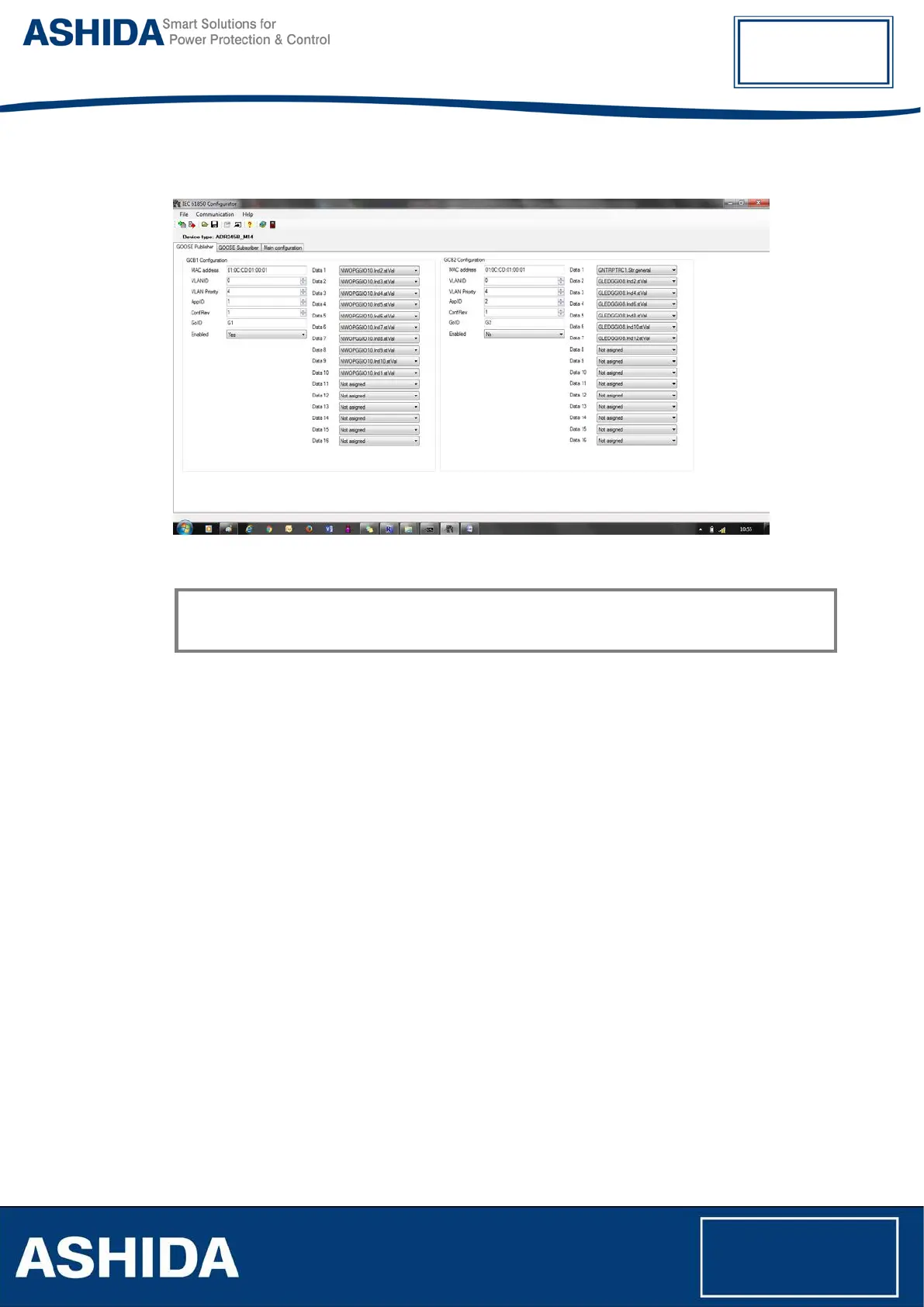

Figure 59: Goose Publisher
Note: Network output (NWOPGGIO10.Ind1.sTVal) signal is Goose Publisher which can be published
to any other make device or to Ashida make IED’s
3.18.17 GOOSE subscriber view
GOOSE Subscriber tab shows filtering parameters that will be used to receive and accept for
processing (subscribe) GOOSE messages published by other devices. Message filter is
composed of following parts:
• Ethernet Destination MAC address (common for all subscribed signals).
• For each input signal
• Application ID.
• Data index in GOOSE message (index in published dataset)
