Ashida ADR233B - Relay Connection and Diagram; Before Energizing Following Things Should be Checked

ADR233B
Doc ID : ADR233B/IM/01
Ref ID : ADR233B/IM/I&P
Rev No. : 05
Page No. : 47 of 479

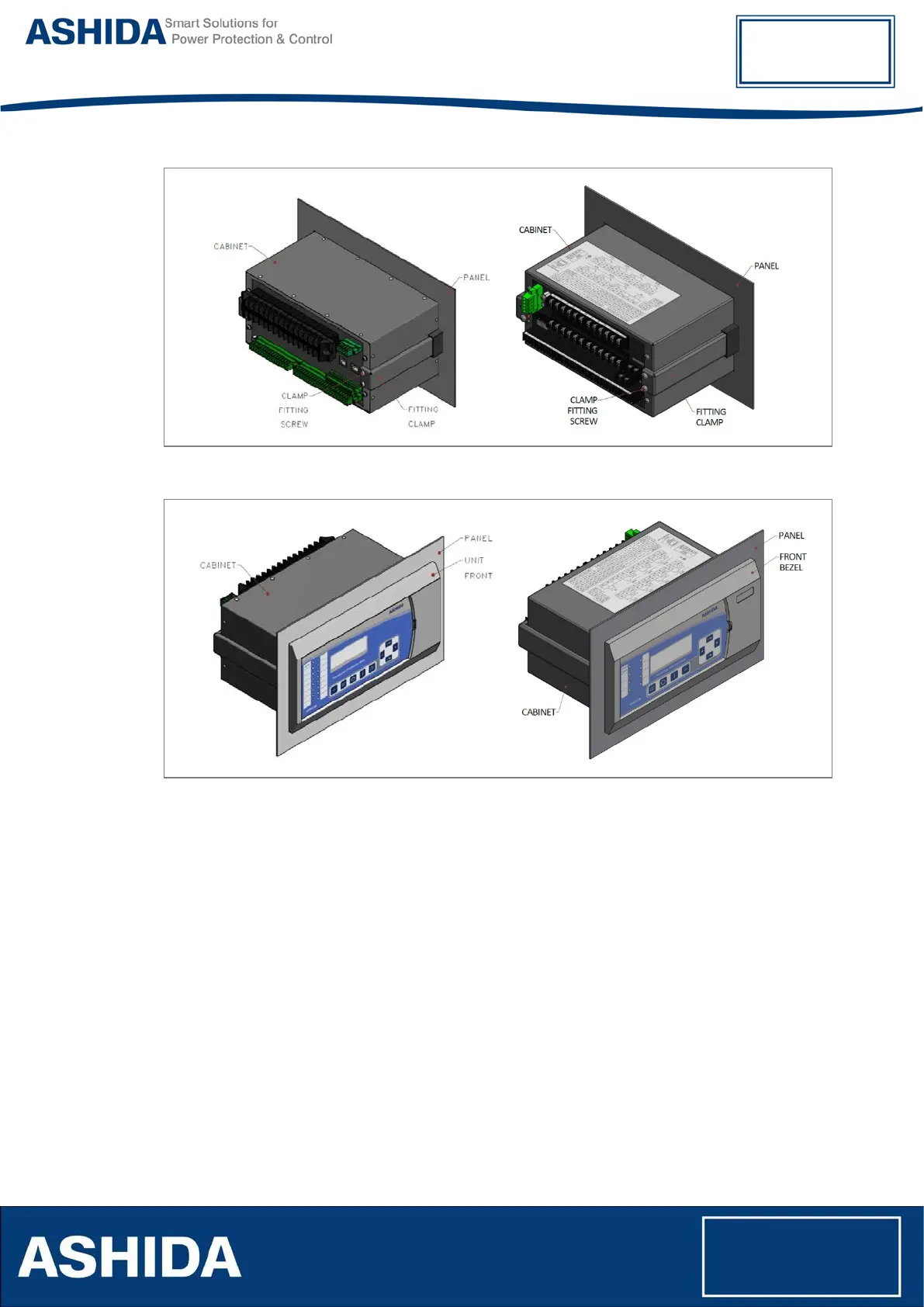

Figure 5: Relay mounted on the panel-front view
Figure 6: Relay mounted on the panel-front view
2.3.3 Relay Connection and Diagram
Refer proper connection Diagram before starting installation process. Avoid exposing any bare
terminals, as it could be hazardous. Follow ESD Precautions. Voltage and Current connections
should be done with insulated crimp termination for safety purpose
2.3.4 Before Energizing following things should be checked
1. Voltage rating and polarity.
2. CT circuit rating and integrity of connection.
3. Protective fuse rating.
4. Integrity of the earthing connection.
5. Voltage and current rating of external wiring, applicable as per application.
