3.5.2 Import Bay
To import bay right click on substation. Following context menu will appear.

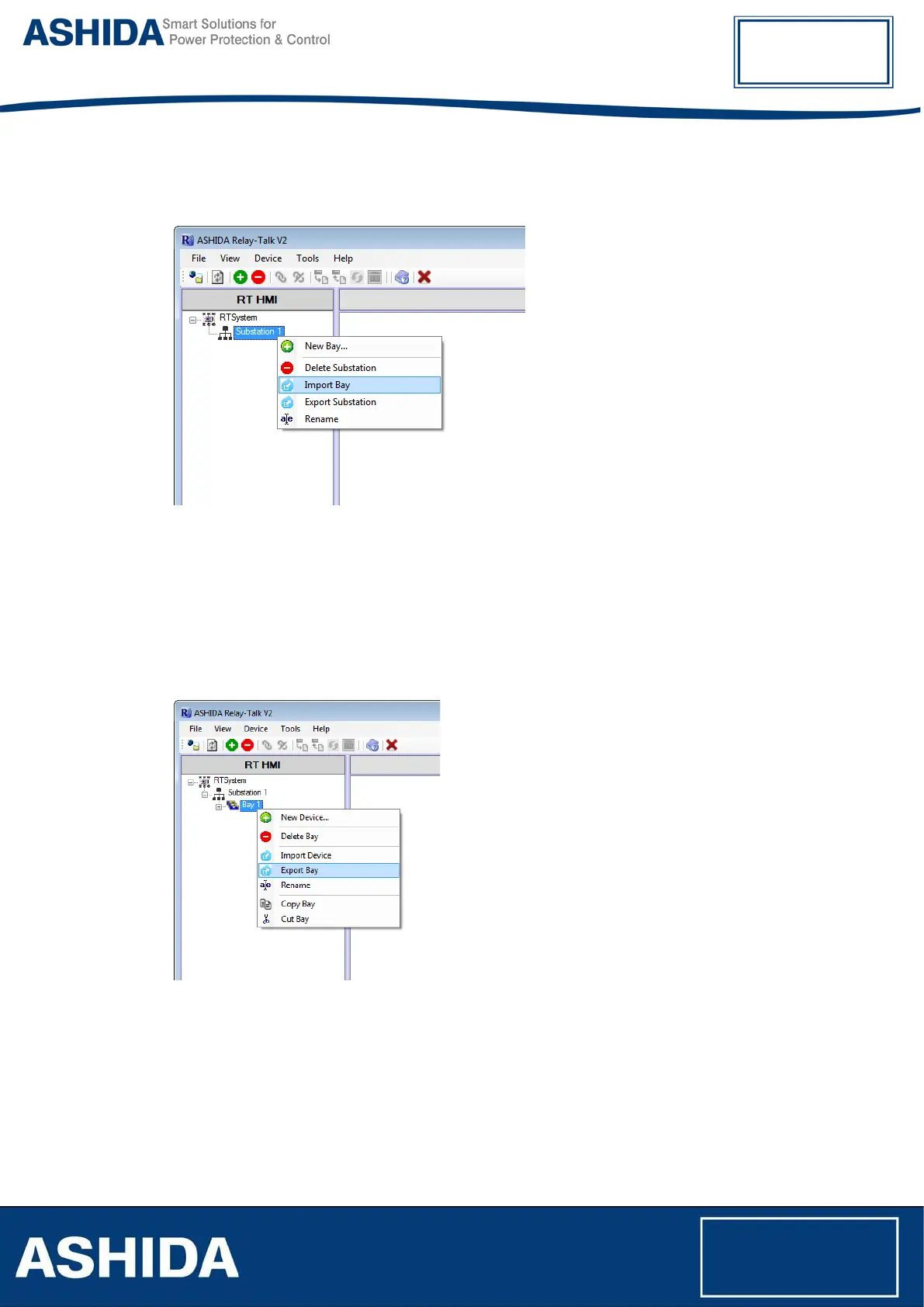

Figure 18: Import Bay
Now click on “Import Bay”. In the “Import Bay” dialogue select a system archive to import and
click Open.
3.5.3 Export Bay
To export bay right click on Bay. Following context menu will appear.
Figure 19: Export Bay
Now click on “Export Bay” following window will appear.
