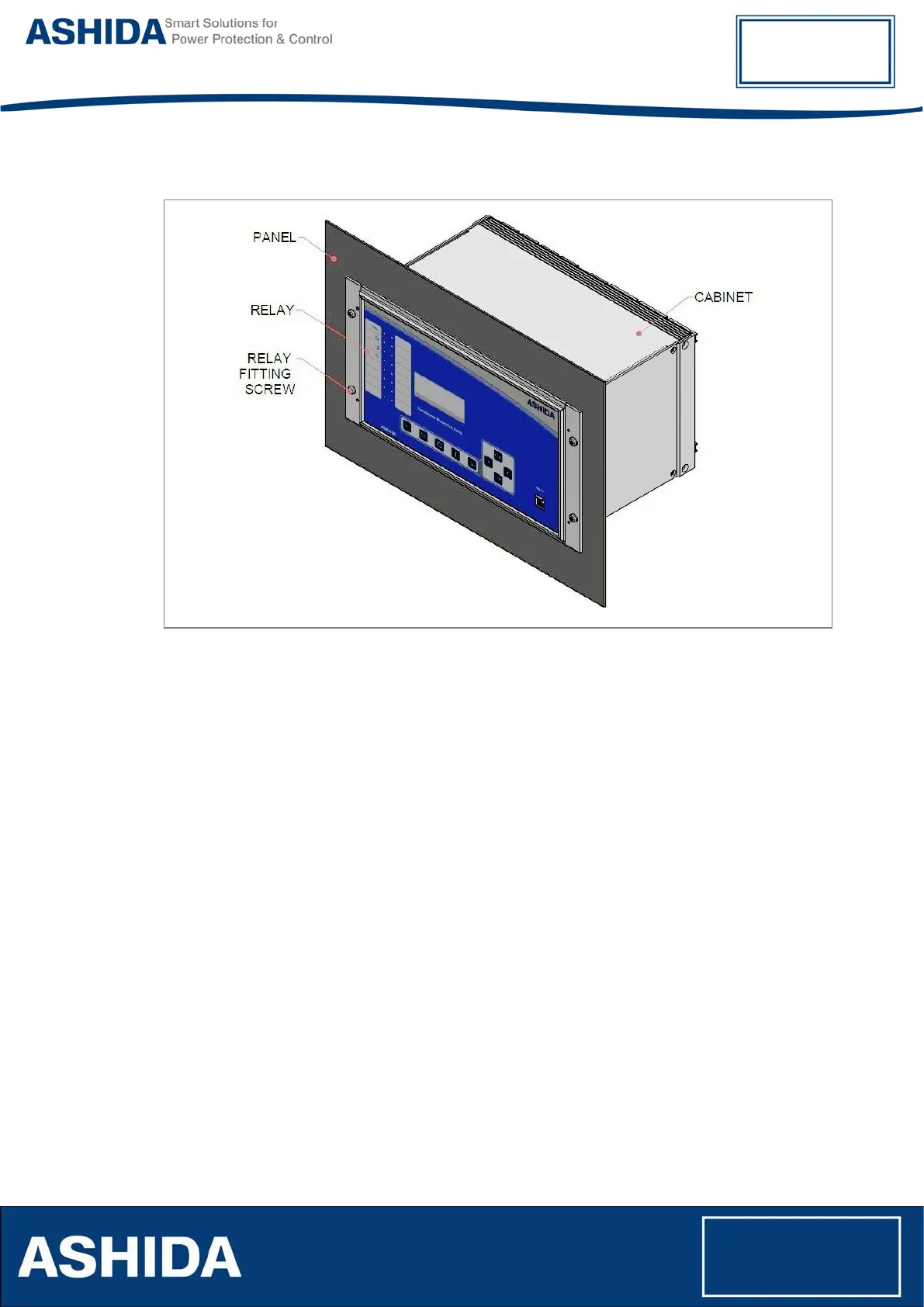

The Relay after fastening to the Panel with M6 X 15 Screws is shown below.
Figure 2: Relay mounted on the panel
2.3.2 Safe Mounting of Enhanced and Basic version
ADR233B E0 & B0 relay’s supports flush mounting and can be mounted into panels using fitting
clamps with M5 X 10 screws.
The fitting clamp and screws are supplied along with the relay.
Procedure for mounting the device into panel:
By loosening the M5 x 10 screws, remove the fitting clamps on the relay and then insert the
relay in to the panel cut-out as show below.
