MULTIPLE OF PICKUP SETTING
A : IEC S INVERSE, B : S INVERSE 1.3Sec, C : IEC V INVERSE, D : IEC E INVERSE, E: UK LT INVERSE
IEC INVERSE CURVE
TIME IN SECONDS

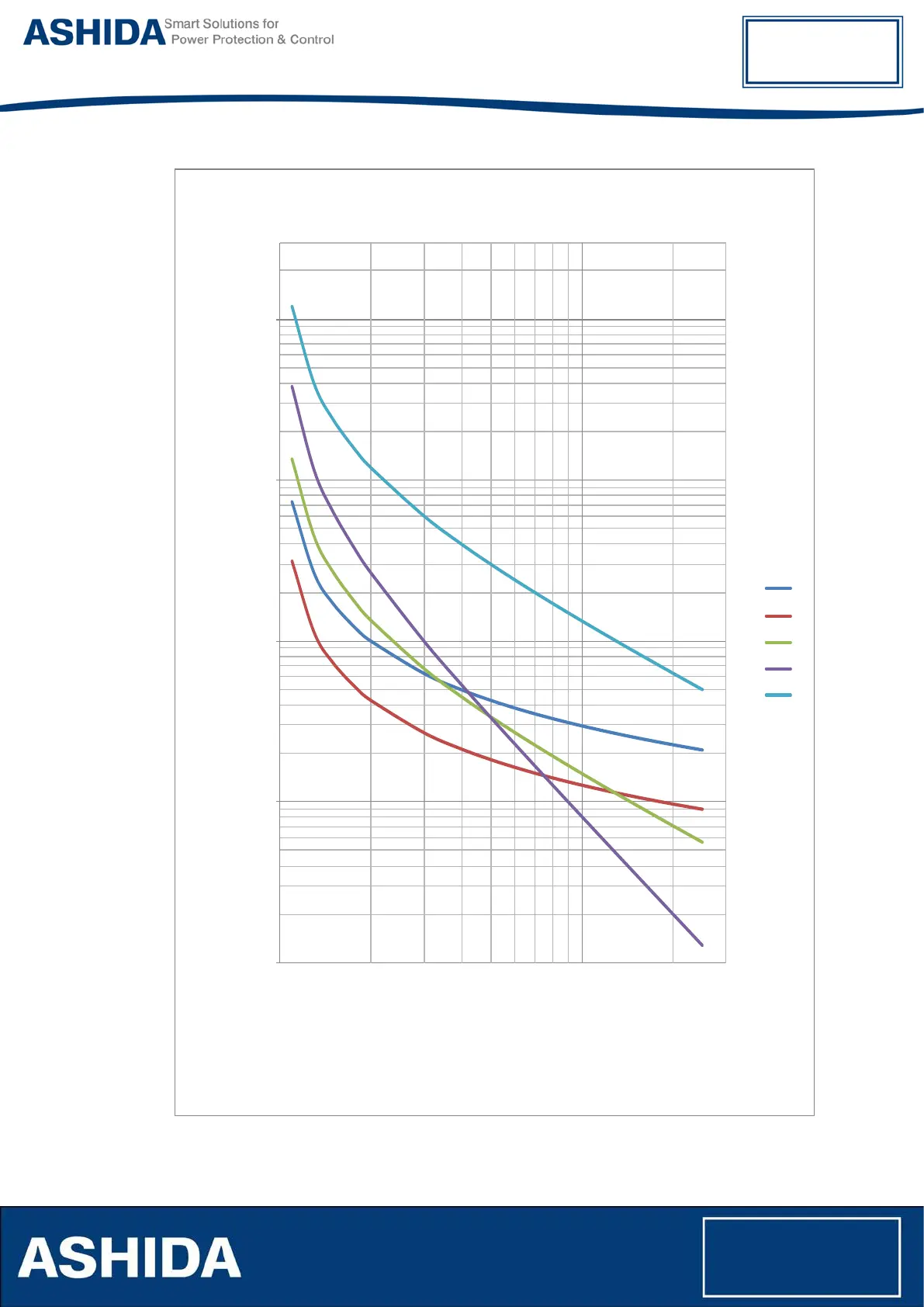

Figure 19: IDMT Characteristic Graph for IEC Curves
