IEEE IDMT PICK-UP / RESET CHARACTERISTIC
M. Inverse
V. Inverse
E. Inverse
Inverse
ST. Inverse
MULTIPLE OF PICKUP SETTING
TD = 1.00, RTMS = 1.00
TIME IN SECONDS

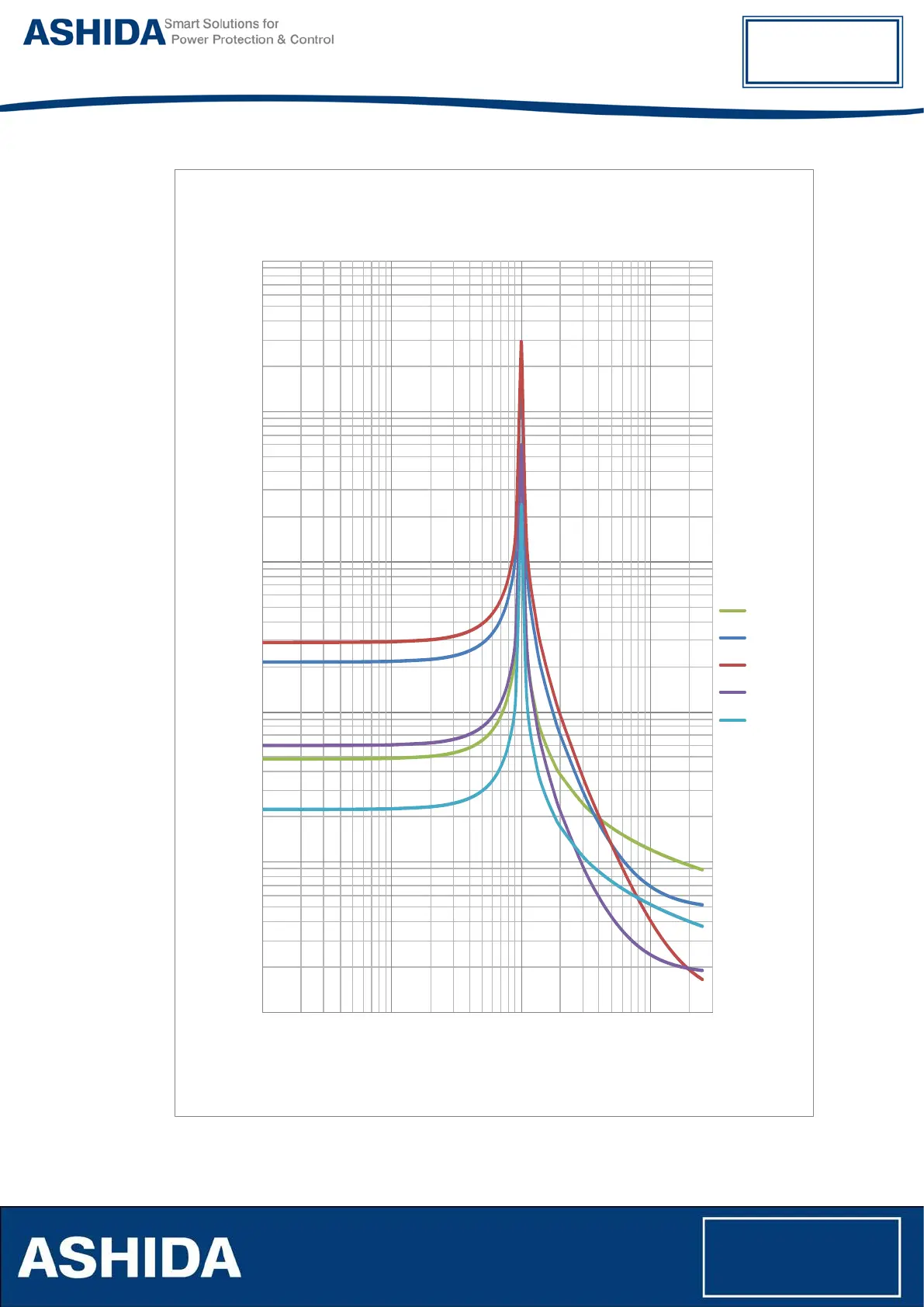

Figure 23: IDMT RESET Characteristic for IEEE/ANSI Curves
