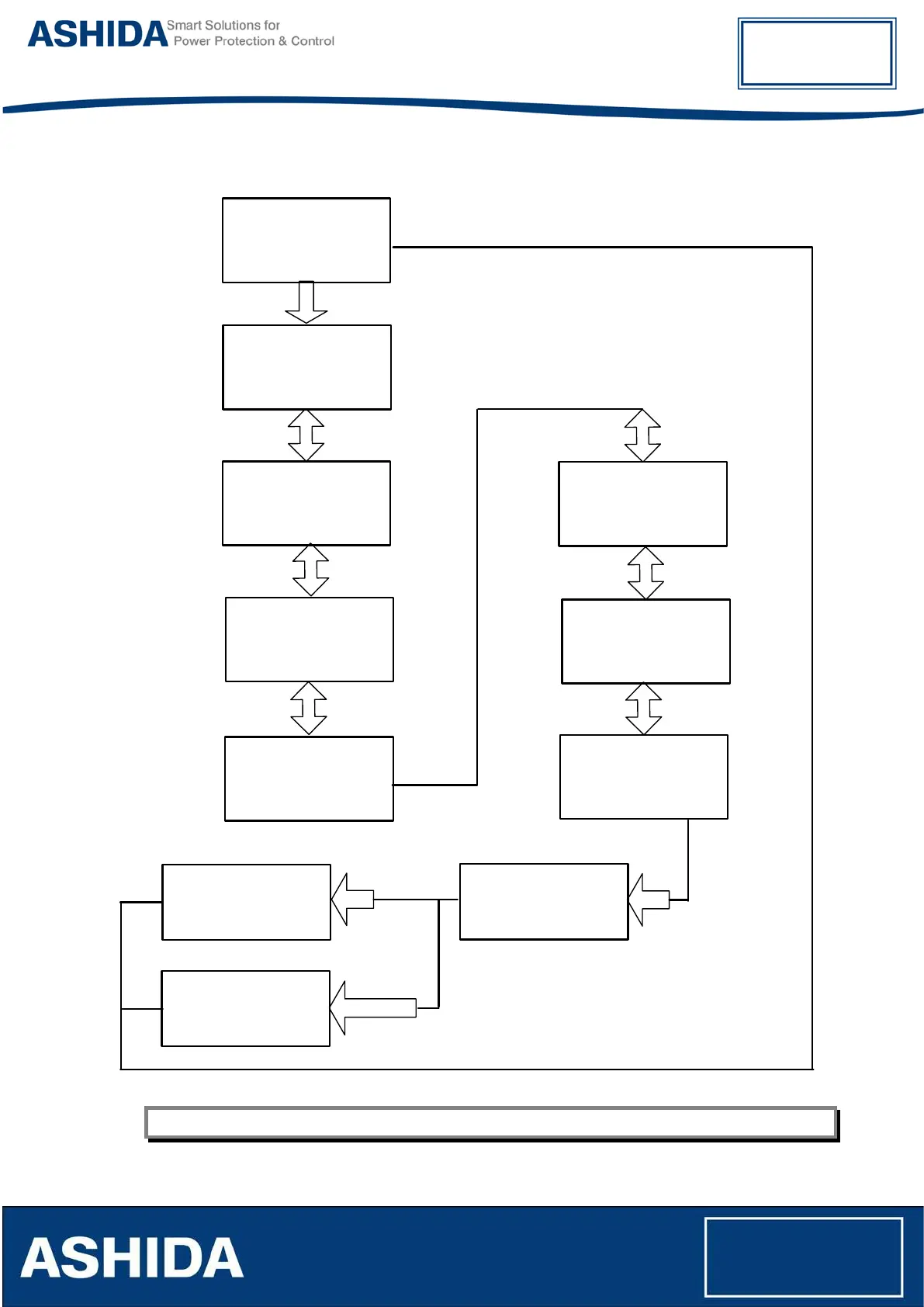

9.11.11.2 W1 50 BF (If Enabled)
W1 50 BF
50BF Reset
CB Open + I<
W1 50 BF
50BF Delay
0.10 s
Range 0 – 50s
3 4
W1 50 BF
Remove IP> P
Enabled
W1 50 BF
50BF_IP<
1.00 A
Range 0.05 – 3.20 xIn
6 5
3 4
SAVE Settings
DISCARD Settings
4
Target Reset
3
Press 3 Key
For Save
Press Target Reset
Key For Cancel
W1 50 BF
W1 50BF Enable
Enabled
6 5
Under Voltage
Over Voltage
V/Hz Protection
Breaker Failure
4
6
PROTECTION
CLEAR RECORDS
OUTPUT & LED TEST
GROUP 1
4
Breaker Failure
W1 50 BF
4
W2 50 BF
6 5
3 4
Note: The settings for 50 BF i.e. W2 50 BF will be similar to W1 50 BF Settings.
