Baumuller b maXX BM3000 User Manual

Description of the Software Modules and Parameters
Parameter manual b maXX BM3000
Document no.: 5.12001.07
333
of 820
4
Introduction to the Description of the Device Control System

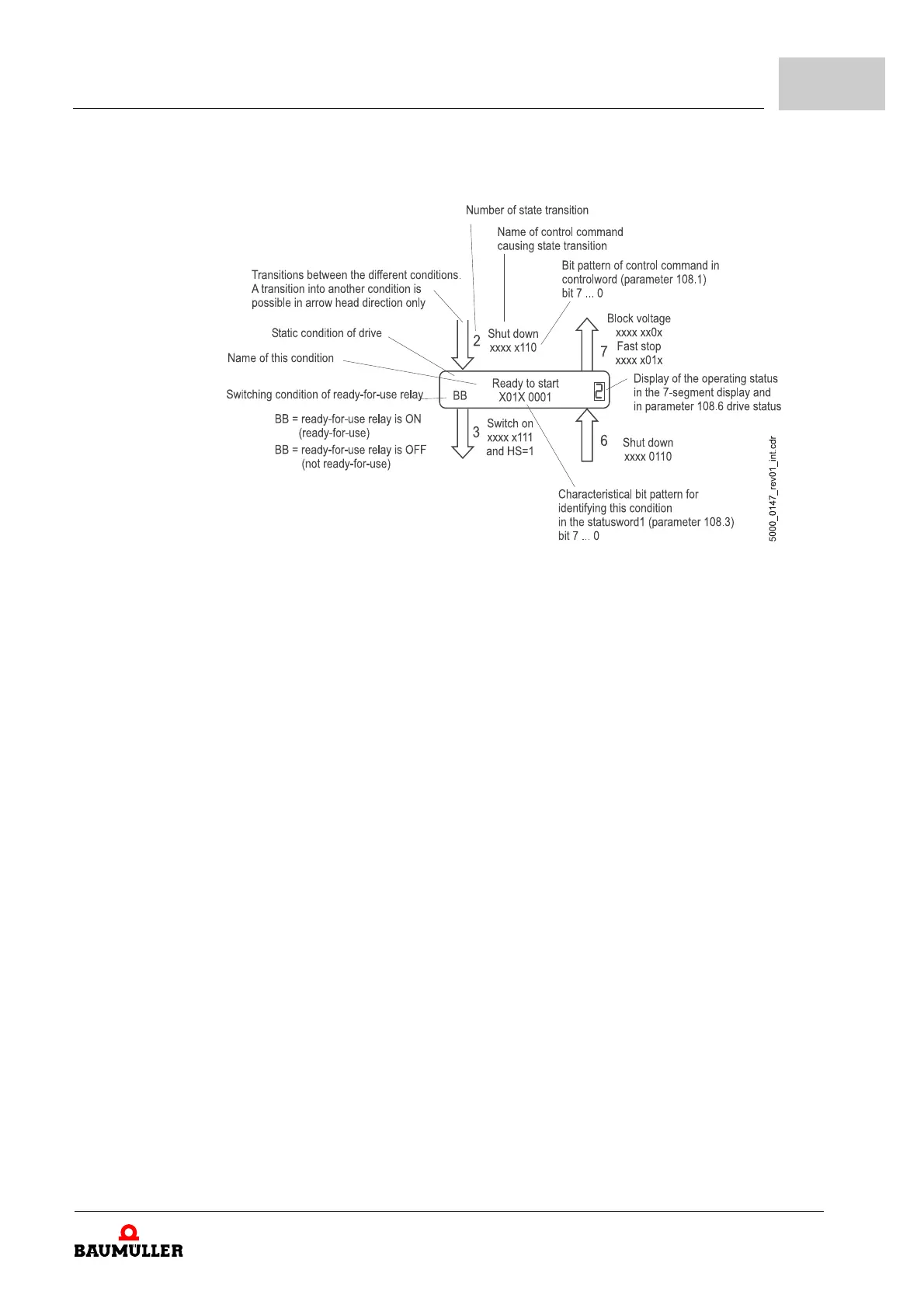

Figure 125: Introduction to the Device Control System
Within the states (see ZFig. 125–), Bits 7...0 of Status Word 1 Z108.3– are represented
in binary form as XXXX XXXX.
At the state transitions (arrowed, see ZFig. 125–), Bits 7...0 of the Control Word Z108.1–
are represented in binary form as xxxx xxxx.
None of the bits labeled X (i.e. the bits of the status word) or x (i.e. the bits of the control
word) have any significance for the control of the state machine or the representation of
the current state.
