INSTALLATION AND STARTUP
4-64 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Loading Optional Top Wheel Whisper Wheel®
Removing the Hub

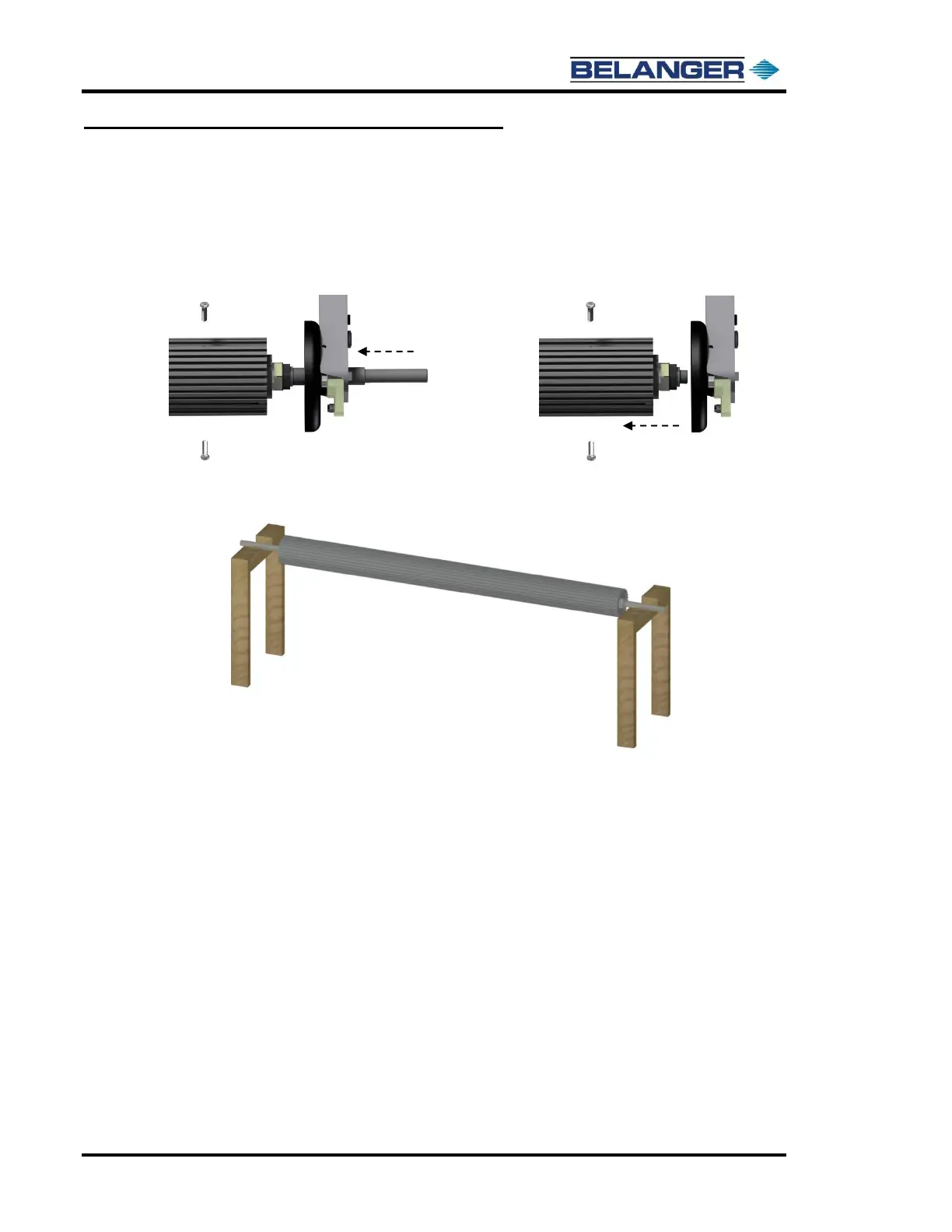

7) Loosen the (3) button head screws and slide the shaft toward the center of the hub, through
the Trans Torque, until it clears the bearing and the Compression Cap.
Repeat this procedure on the other side as shown below.
8) Using an assistant, remove the hub and set it on work horses as shown below.
To Next Page
