INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 15-7
Chapter 15 Wheel Cleaning and CTA Options
Wheel Stingers® and Freestanding CTA - Installation of Cross-Over

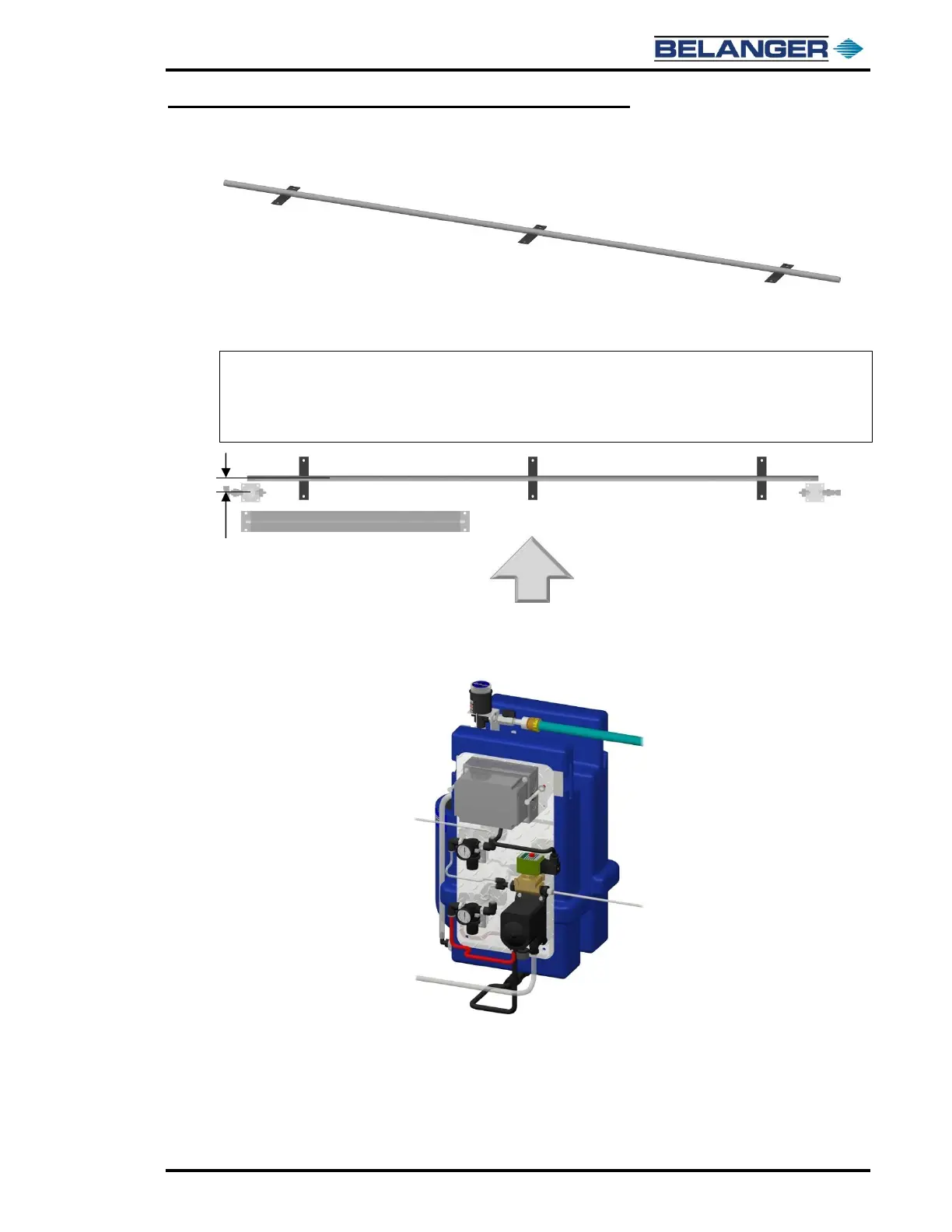

1) Locate the Cross-Over Tube as shown below.
2) Mount the Cross-Over Tube to the floor after the applicators so that the utilities run through
the stainless-steel tube between the applicators. The center of the Cross-Over Tube should
be 3-1/4” from the center of each Applicator. See the image below.
Note: A 1/2” poly-flow tube will deliver the chemical / water mixture and a 1/4” poly-flow tube will
deliver the air from the Primary Applicator to the Secondary Applicator.
Note: The cross over tube will act as a stop so that the wheel of the vehicle will sit in the spray path
as the pump is running.
Mounting the MixStir® Tank
See the MixStir® Manual that ships with every MixStir® for details.
