Chapter 15 Wheel Cleaning and CTA Options
Wheel Stingers® and Freestanding CTA - Connecting the MixStir®

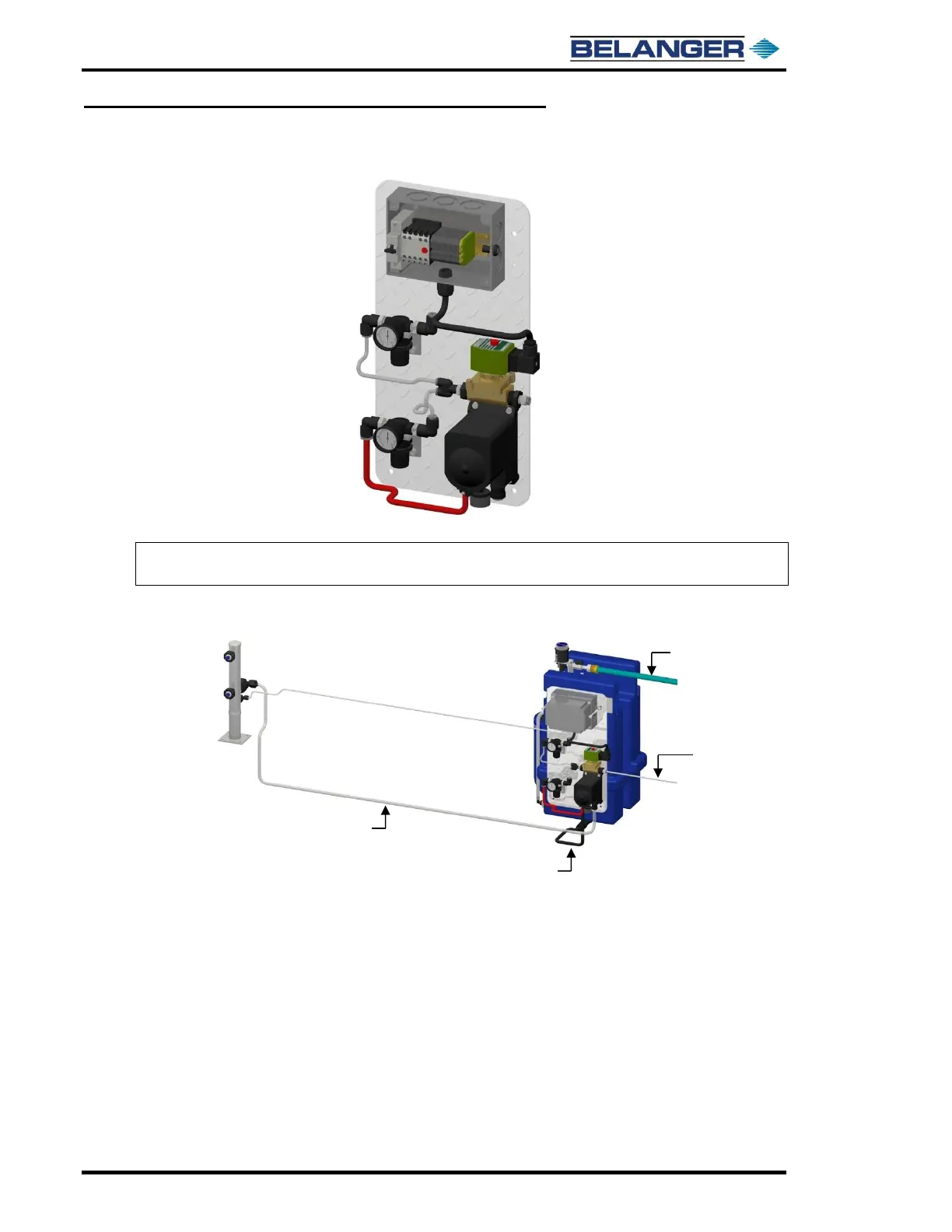

1) Locate the supplied Pumping Panel assembly as shown below.
Note: A 1/2” tube will pull the mixture from the tank and supply the mixture to the applicators. See
the image below.
2) Install 1/2” poly-flow tubing into the inlet port on the air pump and run it into the tee on the
bottom of the Hydro-Minder holding tank. See the image below for an overview.
1/2" Poly-Flow Tube
to the Tee on the
Back of the CTA
1/2" Poly-Flow Tube from the Air
Pump Inlet (Behind the Factory
Installed Red 3/8” Hose) to the
Tee on the Bottom of the Hydro-
Minder™ Tank
Main Water Supply (3/4”)
Main Air Supply (1/4”)
