INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 15-9
Chapter 15 Wheel Cleaning and CTA Options
Wheel Stingers® and Freestanding CTA - Utility Connections
Field Supplied Items
1/2” Poly-flow Tube
1/4” Poly-flow Tube
1/4” Ball Valve
3/4” Ball Valve
Applicators

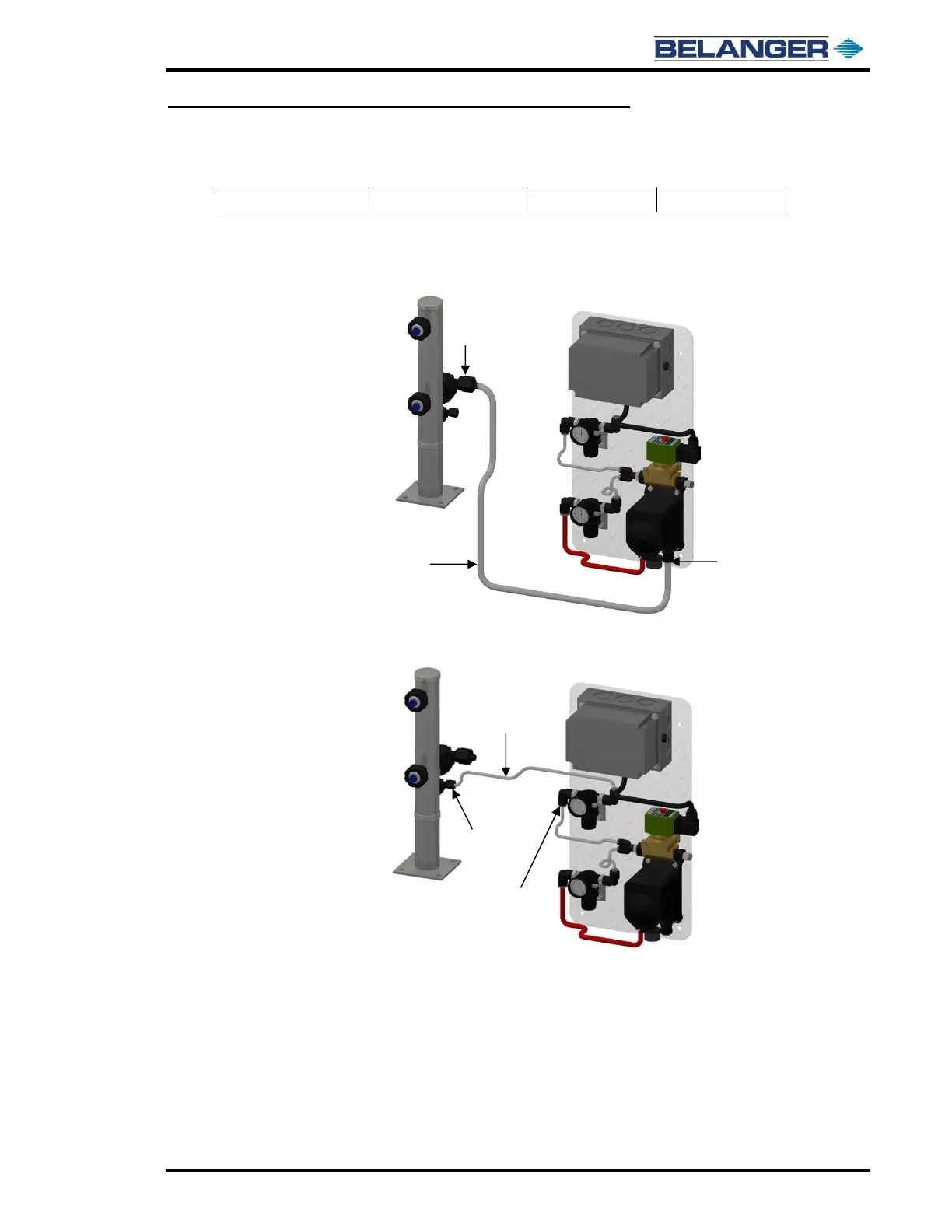

1) Run 1/2” poly-flow tube from the outlet of the air pump to the 1/2" tee mounted into the
back of the Primary Applicator. See the image below.
2) Run 1/4” poly-flow tube from the foam air regulator outlet to the 1/4” tee mounted into the
back of the Primary Applicator. See the image below.
See Nozzle Chart at the end of this chapter for more details.
1/2" Poly-Flow Tube
Air Pump Outlet
Primary
Applicator
1/2" Tee
1/4" Poly-
Flow Tube
Foam Air
Regulator
Primary
Applicator
1/4" Tee
