Chapter 15 Wheel Cleaning and CTA Options
Deluxe Wheel Stinger® with On-Board CTA Installation

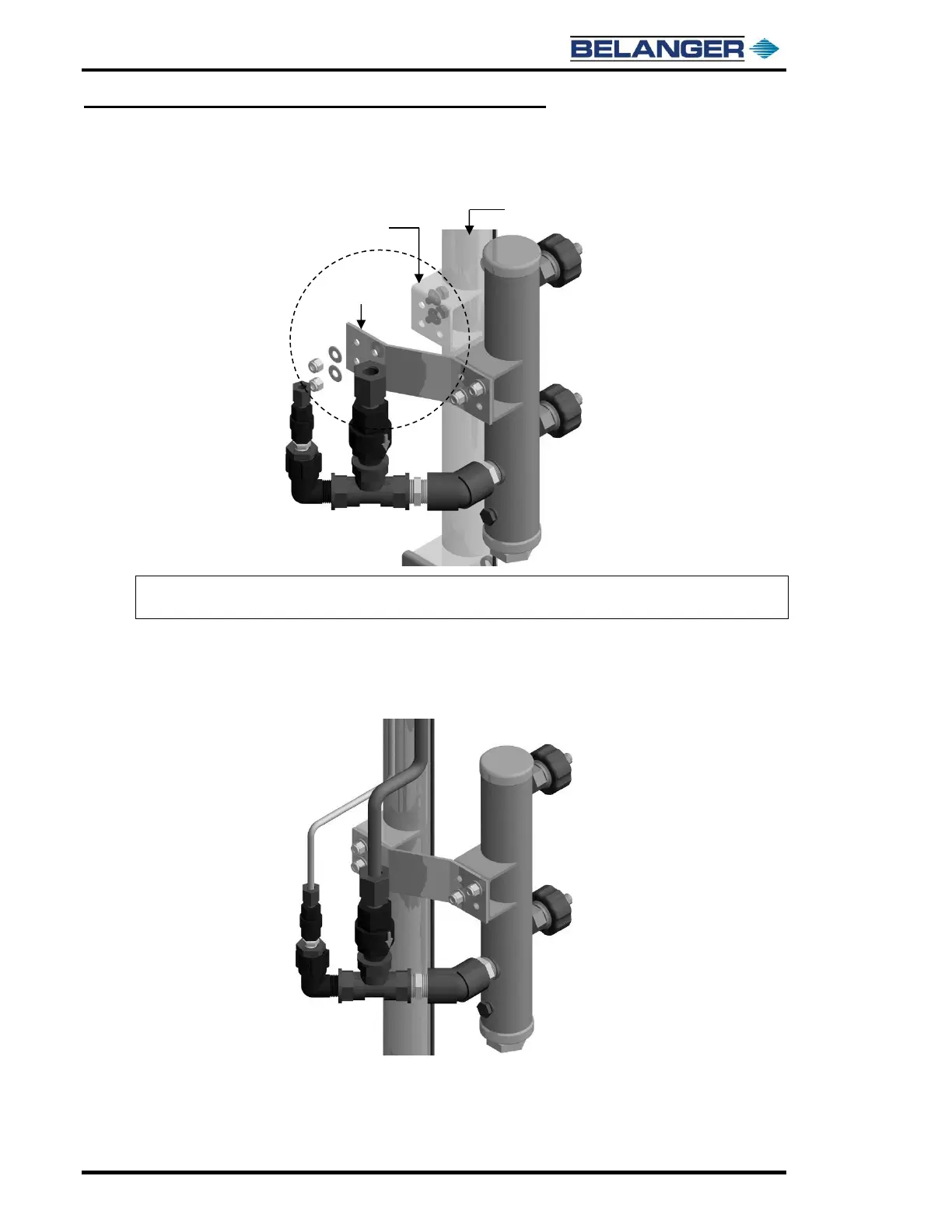

7) Using two of the 1/4-20 x 5/8” fasteners attach the On-Board CTA Bracket to the On-
Board Manifold Mount located about 14” from the bottom of the Wheel Stinger® Manifold
Weldment.
Note: The On-Board CTA Bracket should be positioned on the entrance side of the water manifold
and with the bend oriented toward the center of the FreeStyler®.
8) Locate the supplied 1/4” poly-tube (natural) and 1/2” polytube (black). Secure them to the
fittings shown below.
Route the two hoses and the feed from the Photo Eye up the manifold using the
supplied wire-ties to secure them to the manifold.
To Next Page
