Chapter 15 Wheel Cleaning and CTA Options
Deluxe Wheel Stinger® with On-Board CTA Installation

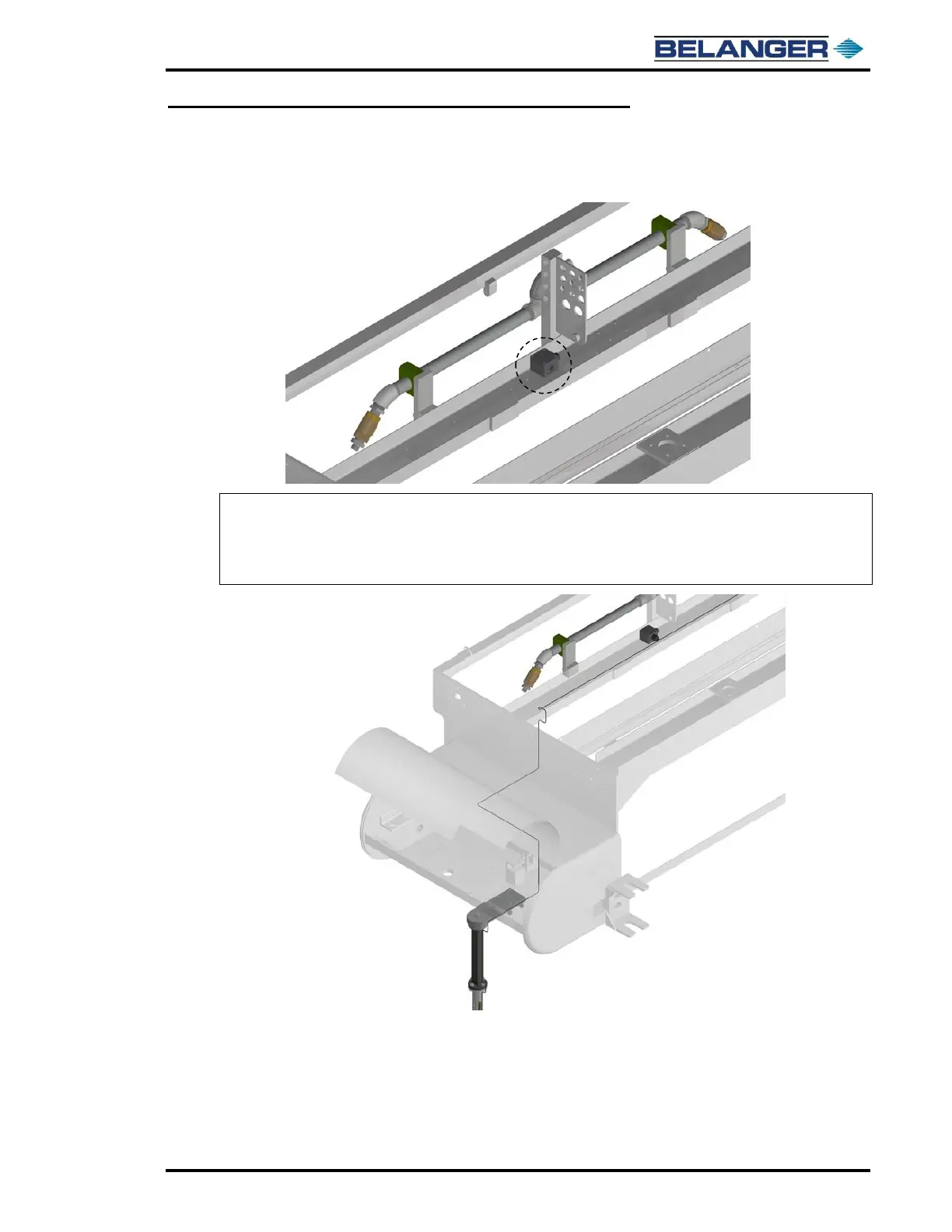

9) Run the Photo Eyes electrical lines up into the central carriage of the FreeStyler® to the
gray plastic junction box as shown below.
Note: There are two cord grips in the junction box. One has a single hole and the other has a
“multi-hole”.
Note: The Photo-Eyes are fed though the multi-hole cord grip as shown below. The location of the
cord grips in relation to the junction box may vary during factory installation.
See Nozzle Chart at the end of this chapter for more details.
See Chapter 20 for connection instructions.
