INSTALLATION AND STARTUP
4-4 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220

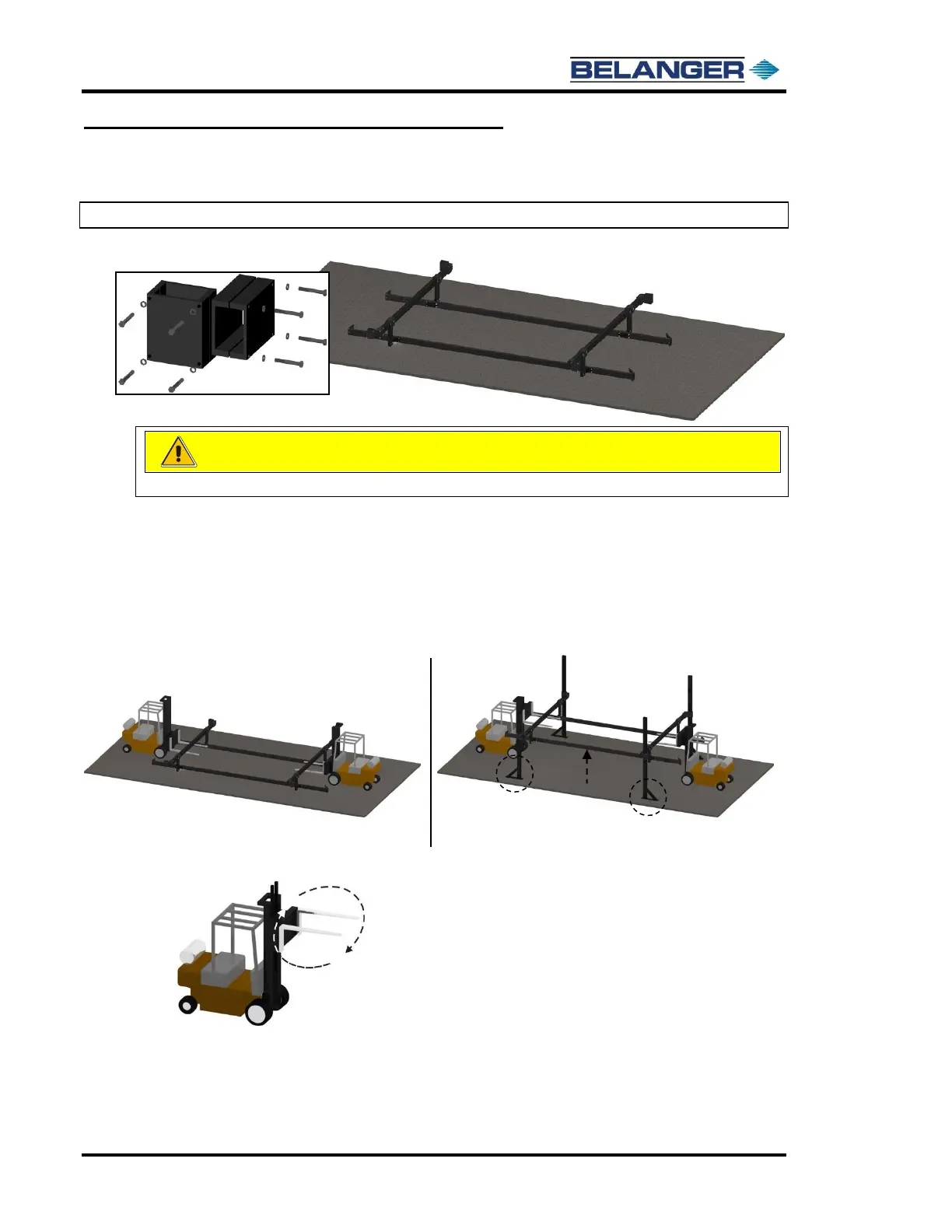

Chapter 4 Frame and Carriage Assembly
Floor Mounted Frame
9) Locate the four corner clamps and attach them to the head beam near the end.
Note: The corner clamps are located in their final position when the frame is in the air.
For safety, always clamp equipment to the forks before lifting.
10) Take the two forklifts and place one under each head beam in the center and carefully lift the
assembly 48’’ off the ground.
Locate the four legs and place them in the corner clamps with the base plates facing toward
the outside of the building.
If the forks do not need to be flipped then move on to step 14.
If the forks need to be flipped, tighten the corner clamps onto the legs.
11) Lower the forks and back away from the head beams and flip the forks (if necessary).
