INSTALLATION AND STARTUP
4-28 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Passenger Side Boom Install
Optional HydroBlade®/ Wheel Cleaner
Lexair™ Distribution Manifold

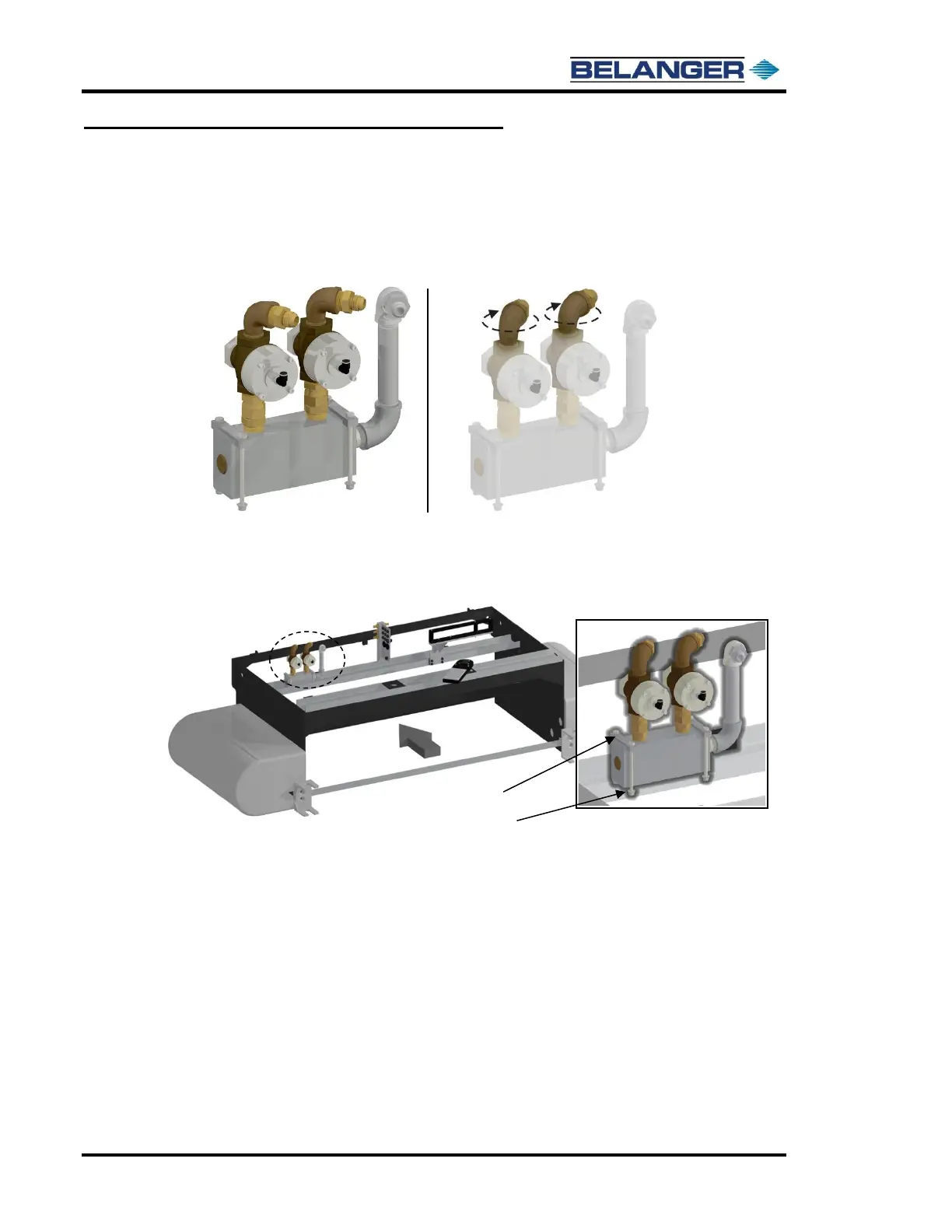

5) Tighten the Lexair™ Valves into place as shown below. Be sure that the fittings are facing in the shown
orientation.
6) Take the manifold assembly back up to the carriage and tighten it into place on the Driver side of the carriage
using the 5/16-18 fasteners, washers, Nylock™ nuts, and the clamps as shown below.
Verify that the valve orientations match the image below.
The following 2 pages show the other components related to this Distribution
Manifold that also need to have their orientation changes.
To Next Page
