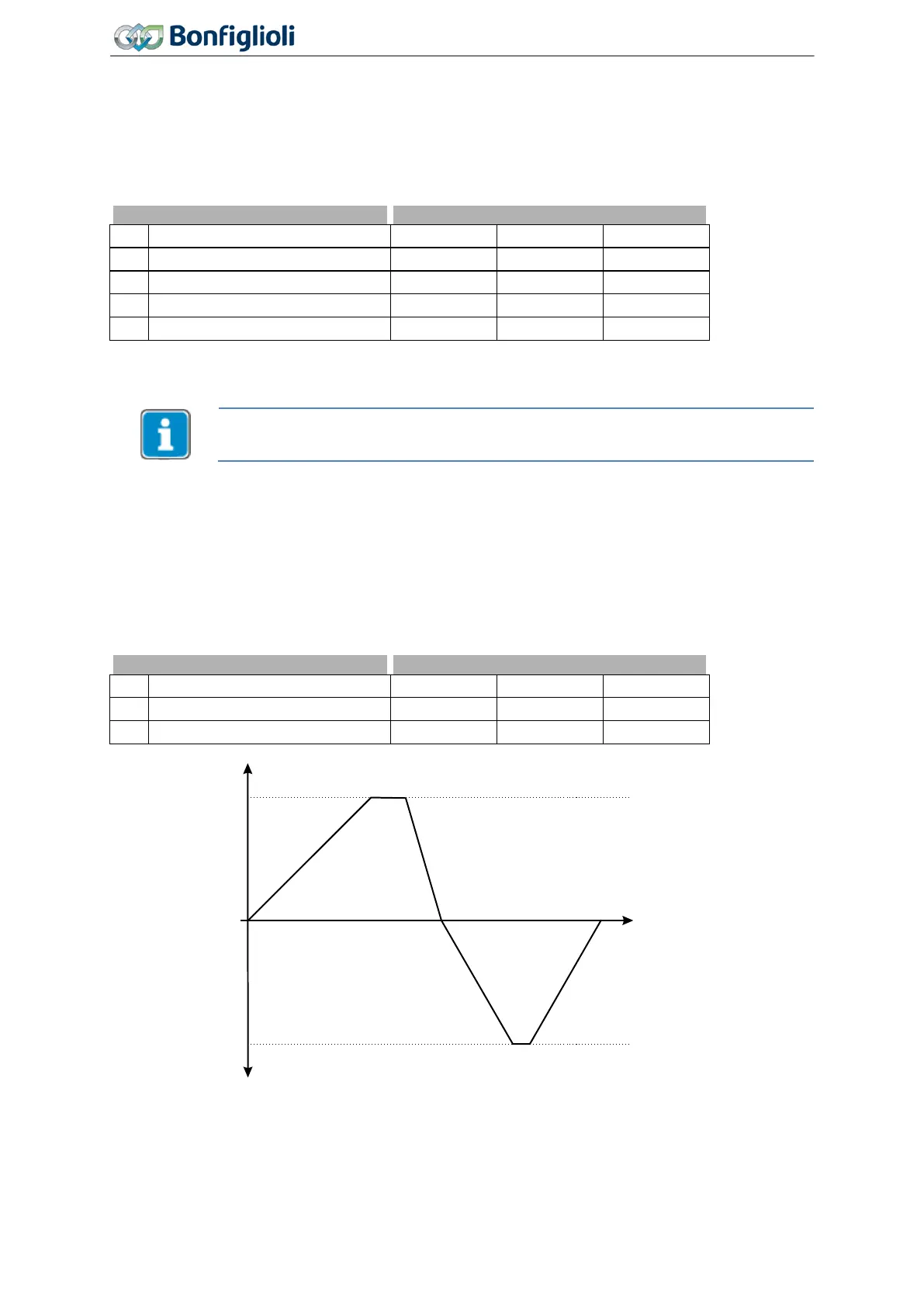

Parameter descriptions
For setting identical frequency ramps for both directions of rotation, the parameterization via the pa-
rameters
Acceleration (Clockwise) 420 and Deceleration (Clockwise) 421 is sufficient. The values of
the frequency ramps are taken over for
Acceleration Anticlockwise 422 and Deceleration Anticlock-
wise
423 if these have been parameterized to the factory setting of -0.01 Hz/s.
The parameter value of 0.00 Hz/s for the acceleration blocks the corresponding direction of rotation.
A set
Ramp Rise Time 430 affects the ramps.
No. Description Min. Max. Fact. sett.
420 Acceleration (Clockwise) 0.00 Hz/s 9999.99 Hz/s 5.00 Hz/s
421 Deceleration (Clockwise) -0.01 Hz/s
9999.99 Hz/s 5.00 Hz/s
422 Acceleration Anticlockwise -0.01 Hz/s
9999.99 Hz/s -0.01 Hz/s
Deceleration Anticlockwise
1)
Value -0.01 Hz/s means: Acceleration (Clockwise) 420 is applied.
2)
Value -0.01 Hz/s means: The ramps of clockwise operation are applied.
The setting 0.00 Hz/s won’t accelerate or decelerate the drive due to the limitation of
the ramp.
424 Emergency Stop Clockwise
425 Emergency Stop Anticlockwise
The ramps for the Emergency Stop Clockwise 424 and Emergency Stop Anticlockwise 425 of the
drive to be activated via
Operation Mode 630 for the stopping behavior must be selected according
to the application. The non-linear (S-shaped) curve of the ramps is not active in the case of an emer-
gency stop of the drive.
No. Description Min. Max. Fact. sett.
425 Emergency Stop Anticlockwise 0.01 Hz/s 9999.99 Hz/s 5.00 Hz/s
Clockwise
rotating field
Anticlockwise
rotating field
+f
max
-f
max
t
Acceleration
(Clockwise) 420
Deceleration (Clockwise)
Emergency Stop Clockwise
or
421
424
Acceleration Anticlockwise 422
Deceleration Anticlockwise
Emergency Stop Anticlockwise
or
423
425
