Parameter descriptions
730 Torque Limit
731 Torque Limit Generator Operation
The output value of the speed controller is limited by an upper and a lower torque limit, parameter
Torque Limit 730 and parameter Torque Limit Generator Operation 731. The limit values are input
as a percentage of the rated motor torque. The assignment of fixed values or analog limit values is
done via the parameters
Torque Limit Source Motor Op. 736 and Torque Limit Source Gen. Op.
737.
Parameters
Setting
No. Description Min. Max. Fact. sett.
730 Torque Limit 0.00% 650.00% 650.00%
731 Torque Limit Generator Operation 0.00% 650.00% 650.00%
732 P-Comp. Torque Upper Limit
733 P-Comp. Torque Lower Limit
The output value of the P component of the torque controller is limited by parameter P-Comp. Torque
Upper Limit
732 and P-Comp. Torque Lower Limit 733. The limit values are input as torque limits as
a percentage of the rated motor torque.
Parameters
Setting
No. Description Min. Max. Fact. sett.
732 P-Comp. Torque Upper Limit 0.00% 650.00% 650.00%
733 P-Comp. Torque Lower Limit 0.00% 650.00% 650.00%
739 Power Limit
740 Power Limit Generator Operation
The power output by the motor is proportional to the product of speed and torque. This output power
can be limited at the speed controller output with
Power Limit 739 and Power Limit Generator Op-
eration
740. The power limits are entered in kW.
Parameters
Setting
No. Description Min. Max. Fact. sett.
739 Power Limit 0.00 kW
2⋅ o
c
⋅P
FIN
2⋅ o
c
⋅P
FIN
740 Power Limit Generator Operation 0.00 kW
2⋅ o
c
⋅P
FIN
2⋅ o
c
⋅P
FIN
P
FIN
= Nominal Frequency inverter power
o
c
: Overload capacity of frequency inverter
motor
motor
generator
generator

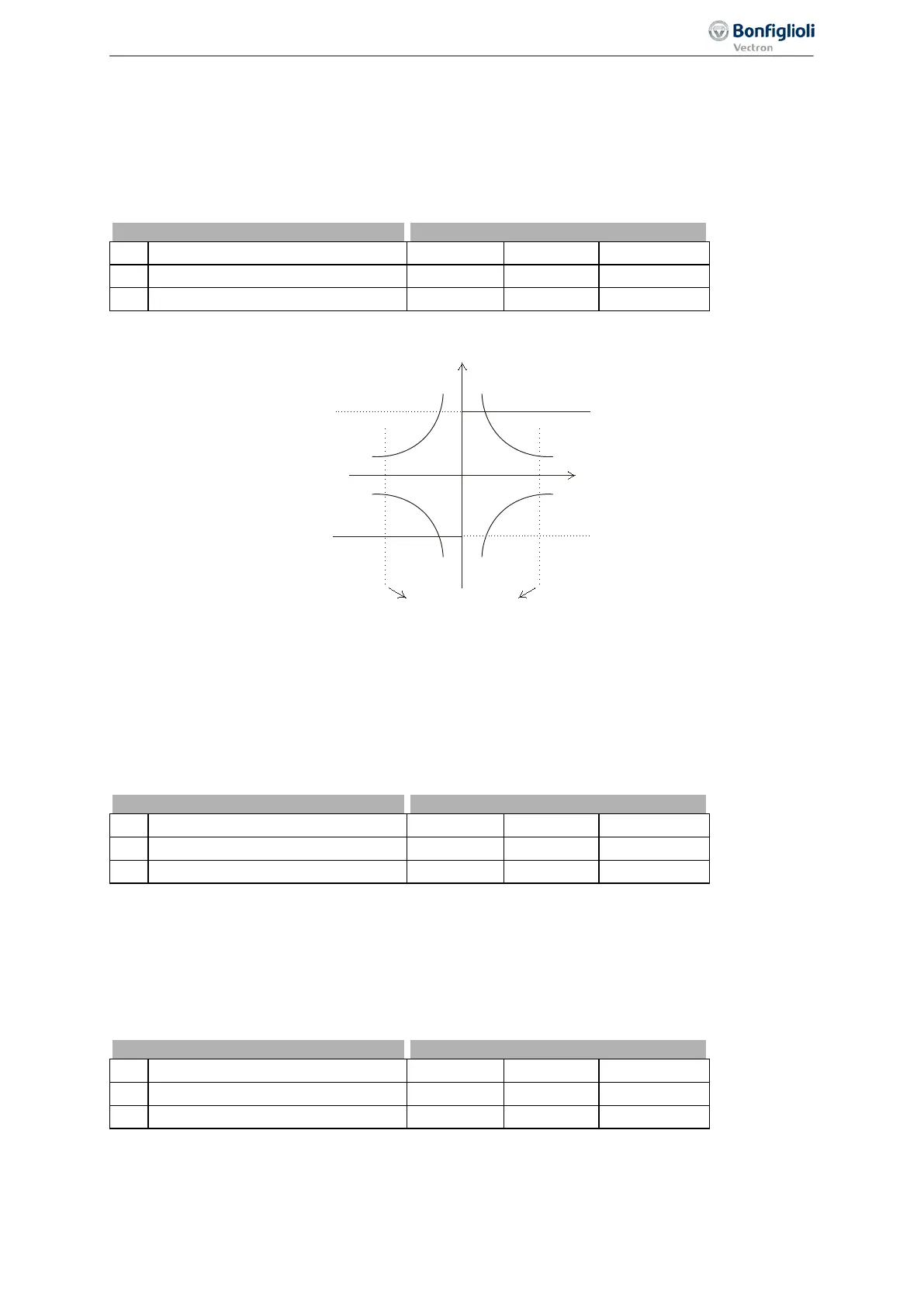

Torque Limit 730
Torque Limit 730
Torque Limit Generator
Operation
731
Torque Limit Generator
Operation
731
M
n
Anticlockwise
operation
Clockwise
operation
Speed is limited by
Maximum Frequency 419
235
