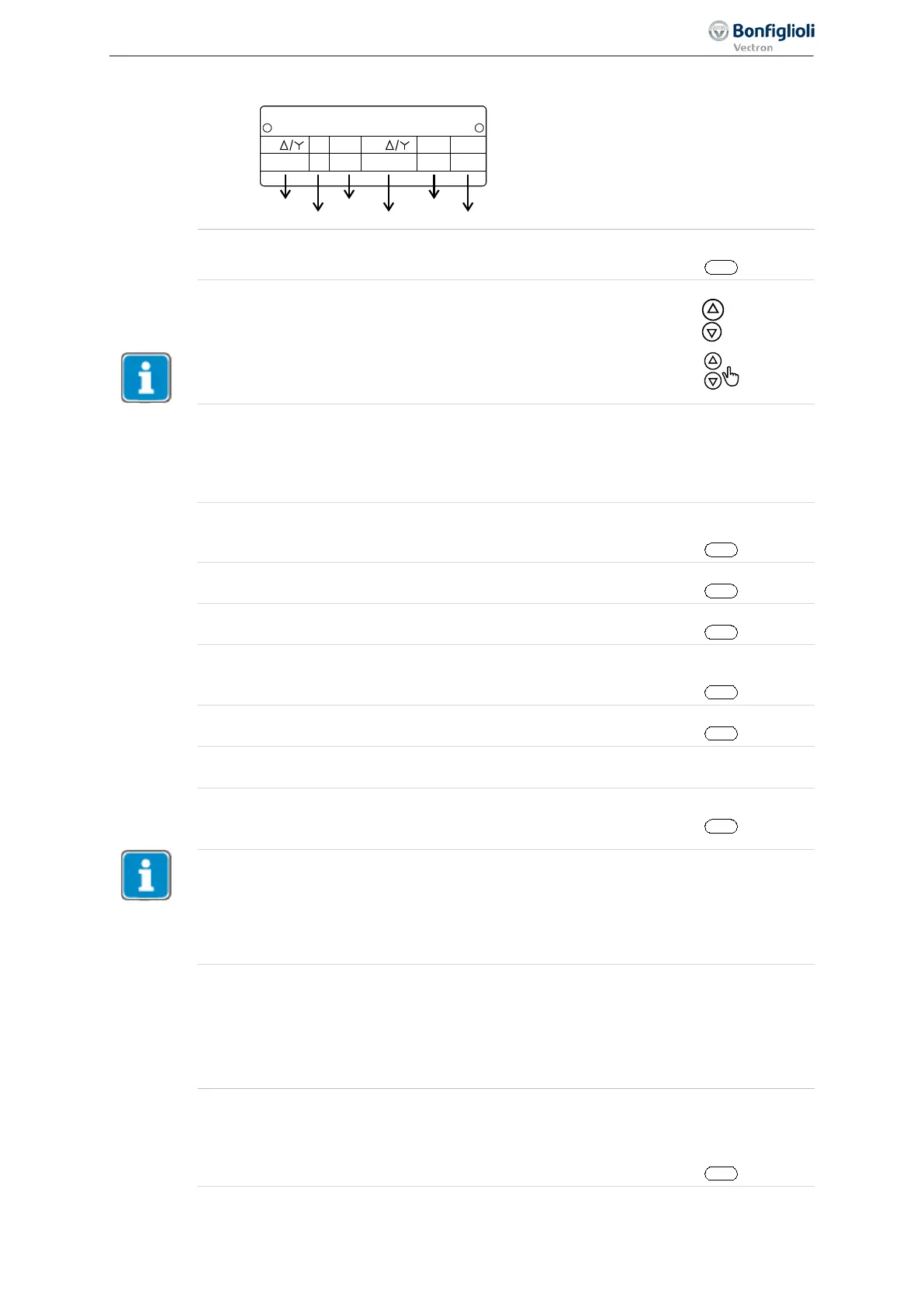

Commissioning
Enter motor data according to motor rating plate:
(Example of rating plate)
Set the value using the arrow keys.
Press the arrow keys for 1 s to set each figure individually.
The following rated values are automatically preset if the last set
value of rated mechanical power corresponds to a BONFIGLIOLI mo-
tor. If a BONFIGLIOLI motor is connected check and confirm the
Rated Cos-Phi
(Enter if 110 “UF” or 410 “FOC” was selected for P30.)
If “STO” is displayed, enable must be switched on via STOA (X11.3)
and STOB (X13.3).
Auto-tuning (auto set-up). Confirm to start the measurement of fur-
ther motor parameters. Consider the following note for another set-
If a BONFIGLIOLI motor is connected and the rated values have been
confirmed, “Calc” instead of “tune” is displayed. In this case further
motor parameters are not measured. The data is loaded and stored.
If instead an auto-tuning should be done, use the arrow keys to
switch from “Calc” to “tune”.
Auto-tuning (auto set-up). Further motor parameters are measured
automatically if “tune” was selected.
Wait until the auto-tuning operation is complete and the next param-
eter prompt is displayed.
If "Motor" (measurement of motor data only) was selected at the
beginning of the setup procedure, "ready" is displayed.
Acceleration (clockwise) in Hz/s.
Ramp gradient. Change rate [Hz/s] of output frequency after a
change of the reference value or after a start command.
Deceleration (clockwise) in Hz/s.
Hz kW min
-1
230/400
V
50 0.25 1375
cos
ϕ
1.32-0.76
A
0.77
63
First commissioning 06/2013 Operating Instructions
