66. Check turning torque using Differential Bearing Torque Tool C-4995A (2) and an inch pound torque
wrench (1). Turning torque for the remote pinion gear should be 2 to 8 in-lbs (drag). If more than 8 in-lbs
(drag) decrease shim size under the remote pinion bearing cover cup. If turning torque is less than 2 in-lbs
(drag) increase the shim size under the remote pinion bearing cover cup.

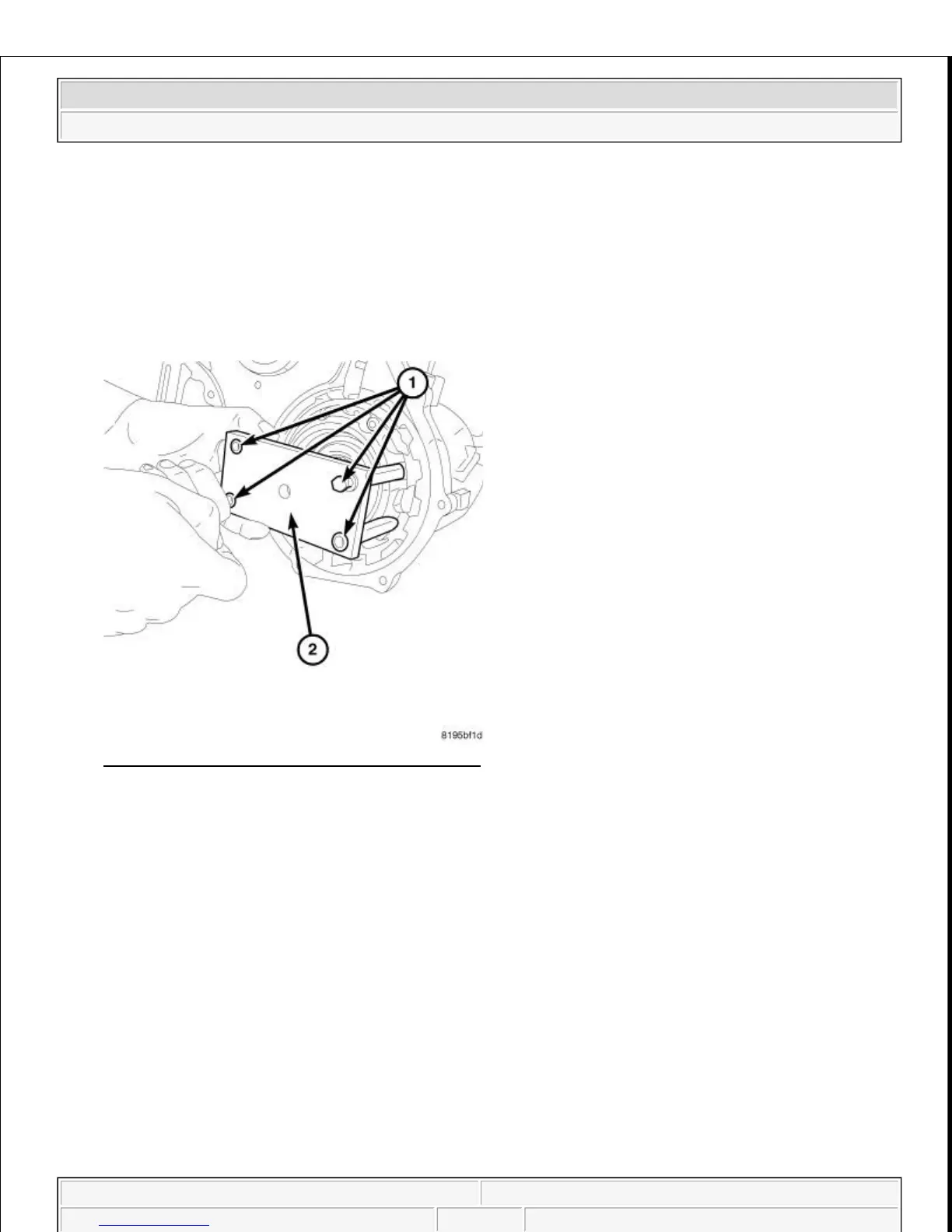

Fig. 165: Tool 9908 Bearing Retainer Assembly
Courtesy of CHRYSLER LLC
67. Install Holder 9908 (2) onto the compounder bearing retainer to help in installation.
68. Install the compounder bearing retainer into the transaxle case.
NOTE: Differential assembly must not be installed when checking for pinion drag
torque.
