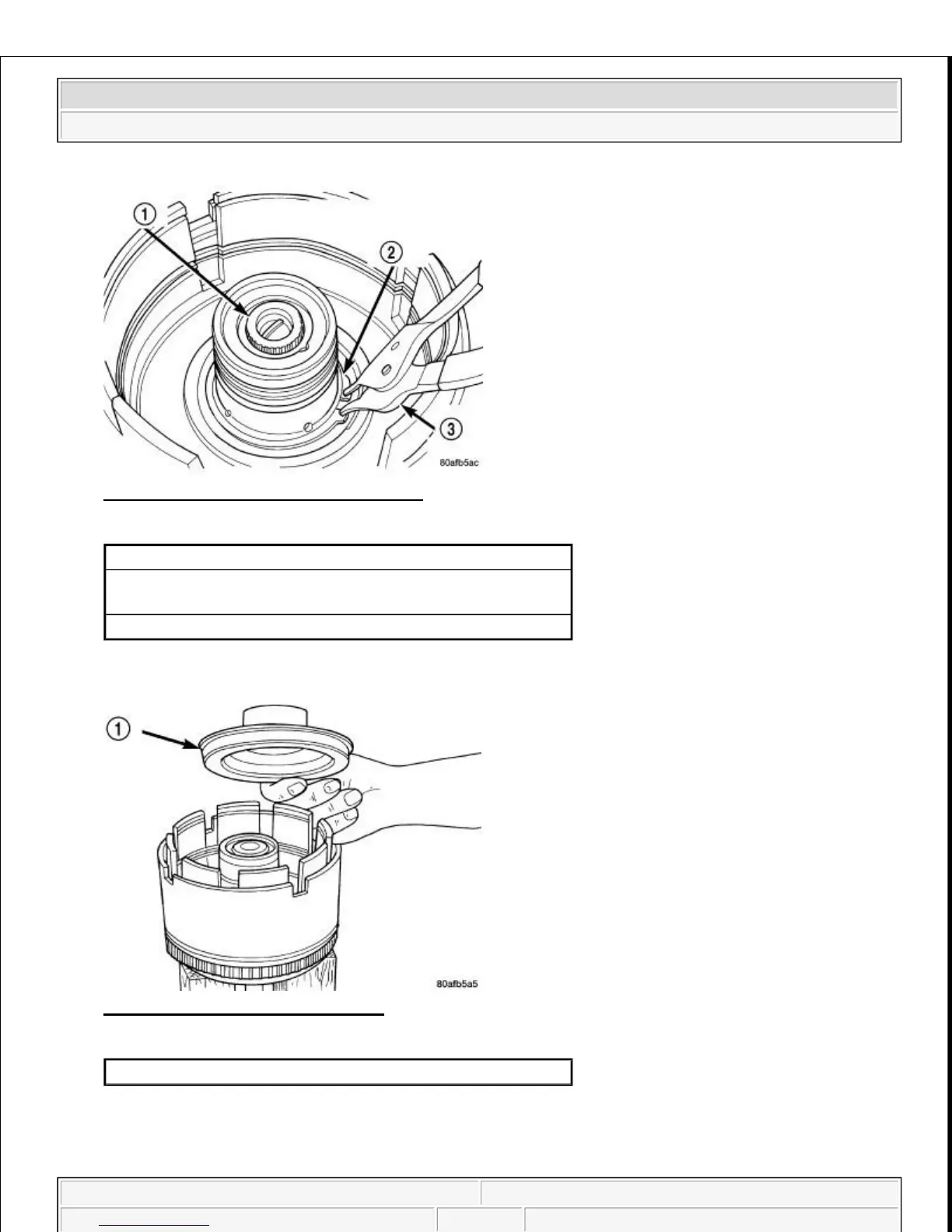

Fig. 326: Input Hub Tapered Snap Ring
Courtesy of CHRYSLER LLC
8. Install input hub tapered snap ring (tapered side up with tabs in cavity) (2).
Fig. 327: Underdrive Clutch Piston
Courtesy of CHRYSLER LLC
9. Install UD clutch piston (1).
1 - INPUT SHAFT
2 - INPUT HUB SNAP RING (TAPERED SIDE UP WITH
TABS IN CAVITY)
3 - SNAP RING PLIERS
1 - PISTON
