20. Install the needle bearing (1) onto the transfer shaft.

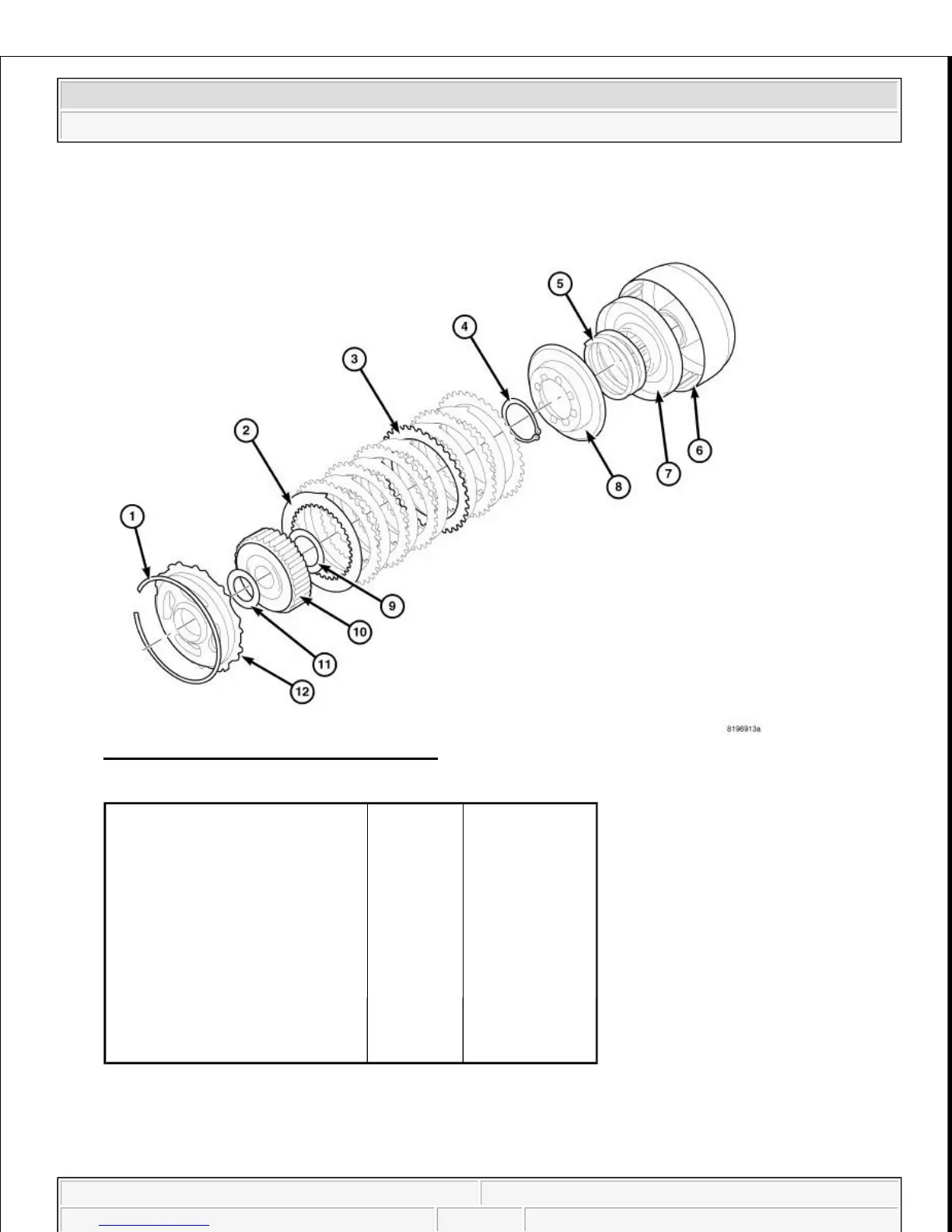

Fig. 397: Exploded View Of Direct Clutch
Courtesy of CHRYSLER LLC
21. Install the direct clutch retainer (8) onto the retainer (7).
22. Install the return coil spring (5) onto the balance piston (8).
23. Install the direct clutch piston (7) into the balance piston (8) usin
g
the Direct Clutch Piston Guide 9727.
1 - INTERNAL SNAP RING 5 -
RETURN
COIL
SPRING
9 - #2 THRUST
BEARING
2 - FRICTION (INNER SPLINE)
6 -
RETAINER
10 - HUB
3 - FRICTION (OUTER SPLINE) 7 - PISTON
11 - #1
THRUST
BEARING
4 - RETAINER SNAP RING 8 -
BALANCE
PISTON
12 - REACTION
PLATE
(SELECTABLE)
