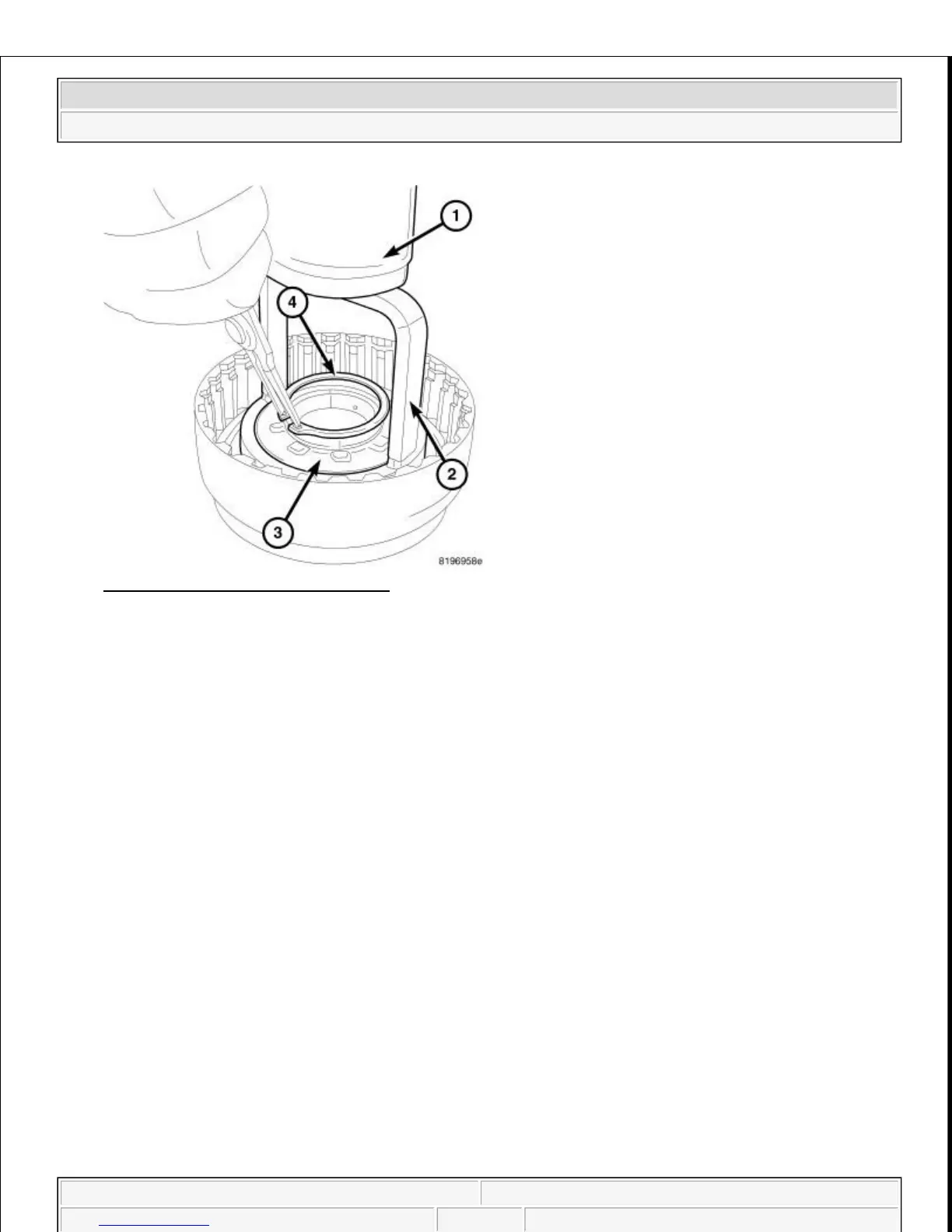

Fig. 398: Direct Clutch Compressed
Courtesy of CHRYSLER LLC
24. Install compressor 8250 (2) over the direct clutch balance piston (3) and place onto a press (1).
25. Compress spring to install the snap ring (4) at the direct clutch balance piston.
26. Install the inner and outer spline frictions (2, 3).
27. Install the number two thrust bearing (9).
28. Install the hub (10).
29. Install the number one thrust bearing (11).
30. Install the selectable reaction plate (12).
31. Install the internal snap rin
(1).
