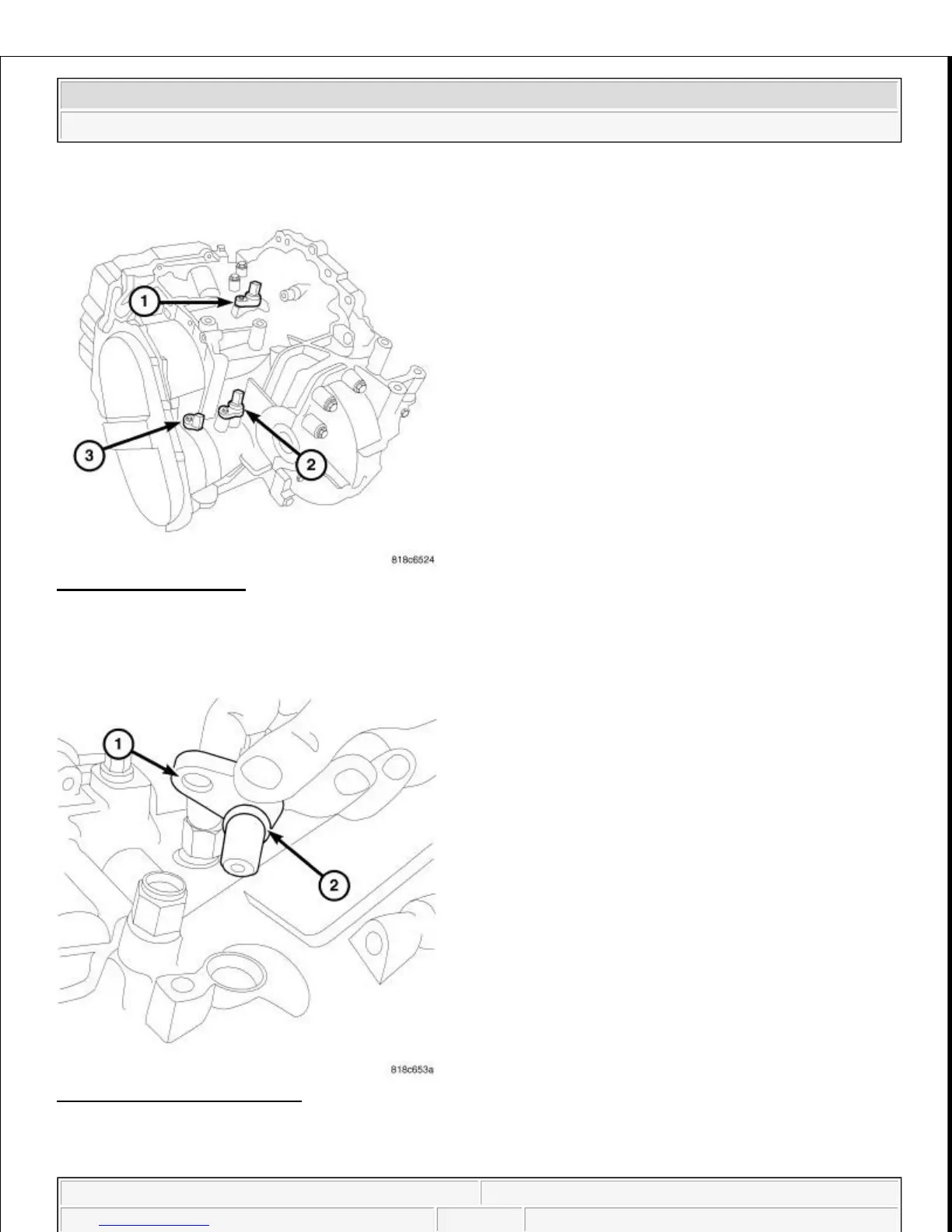

Fig. 495: Speed Sensors
Courtesy of CHRYSLER LLC
The Transfer Shaft Speed Sensor (3) is a two-wire magnetic pickup device that generates AC signals as rotation
occurs.
Fig. 496: Speed Sensor O-Ring
Courtesy of CHRYSLER LLC
The Transfer Shaft Speed Sensor (1) is bolted to the transaxle case and uses a O-ring (2) to seal it to the
