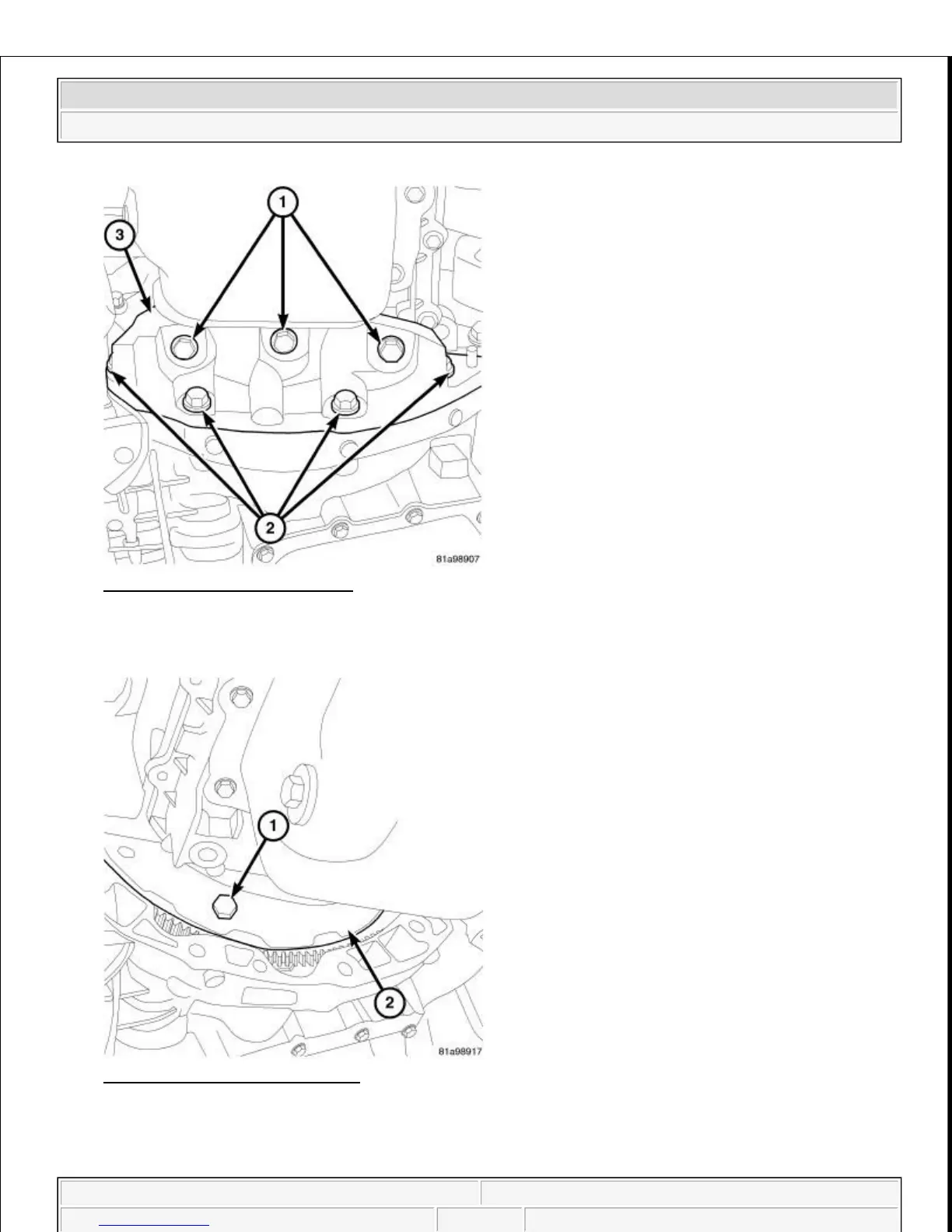

Fig. 36: Structural Collar Bolts
Courtesy of CHRYSLER LLC
46. On 3.8L engine, remove the bolts holding structural collar to the oil pan (1) and transmission (2).
Fig. 37: Torque Converter Bolts
Courtesy of CHRYSLER LLC
47. Remove the torque converter-to-drive plate bolts (1). Upon removing bolts, a tight-tolerance (slotted) bolt
will be encountered. Mark this location (drive plate and converter) with paint for assembly reference.
