Chrysler 62TE - Valve Body Disassembly

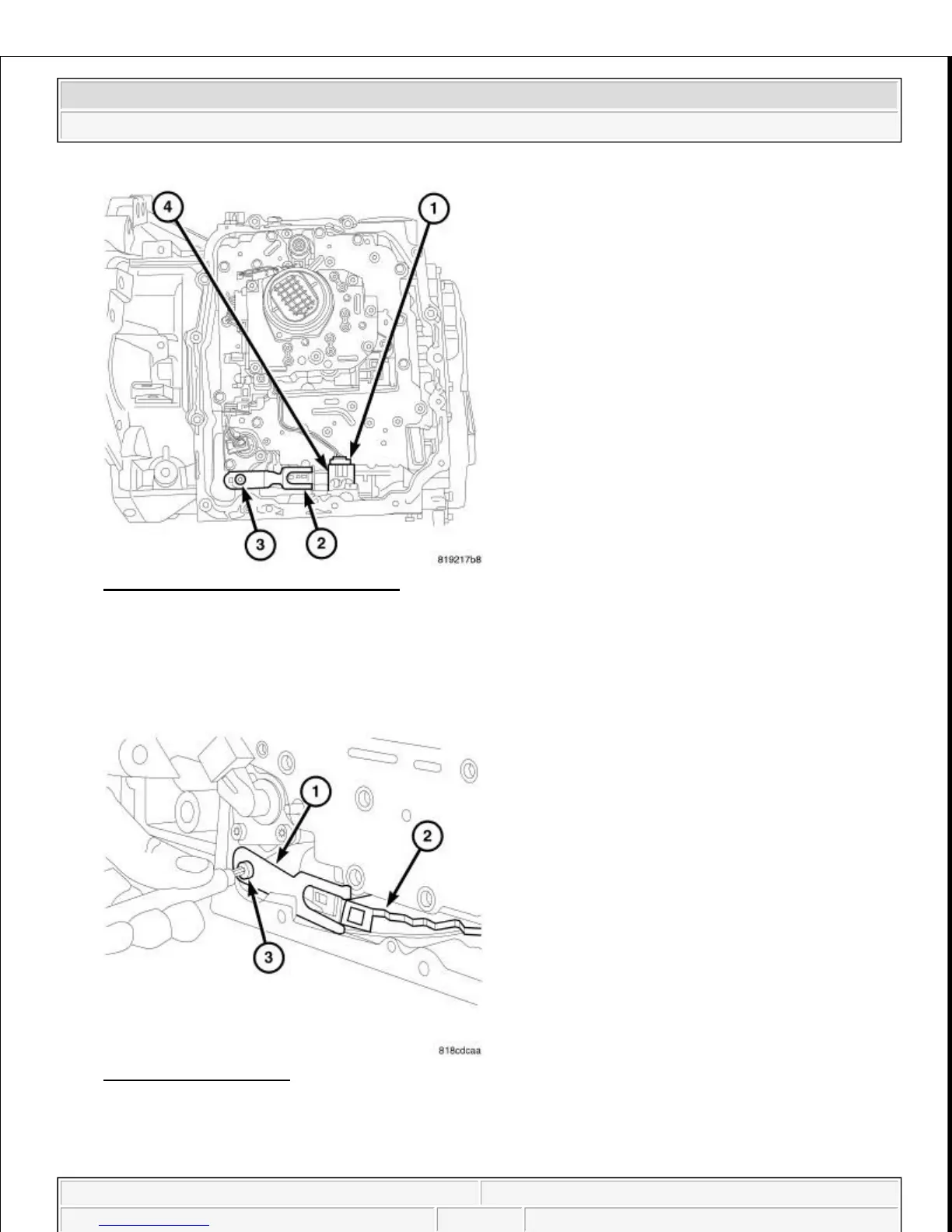

Fig. 585: Connector At Transmission
Courtesy of CHRYSLER LLC
16. Remove the electrical connector (1) at the valve body (2).
Fig. 586: Detent Spring
Courtesy of CHRYSLER LLC
17. Remove screw at detente arm (2).
18. Remove detente arm (1).
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
