24. Install tapered snap ring (with tapered side up) (2).

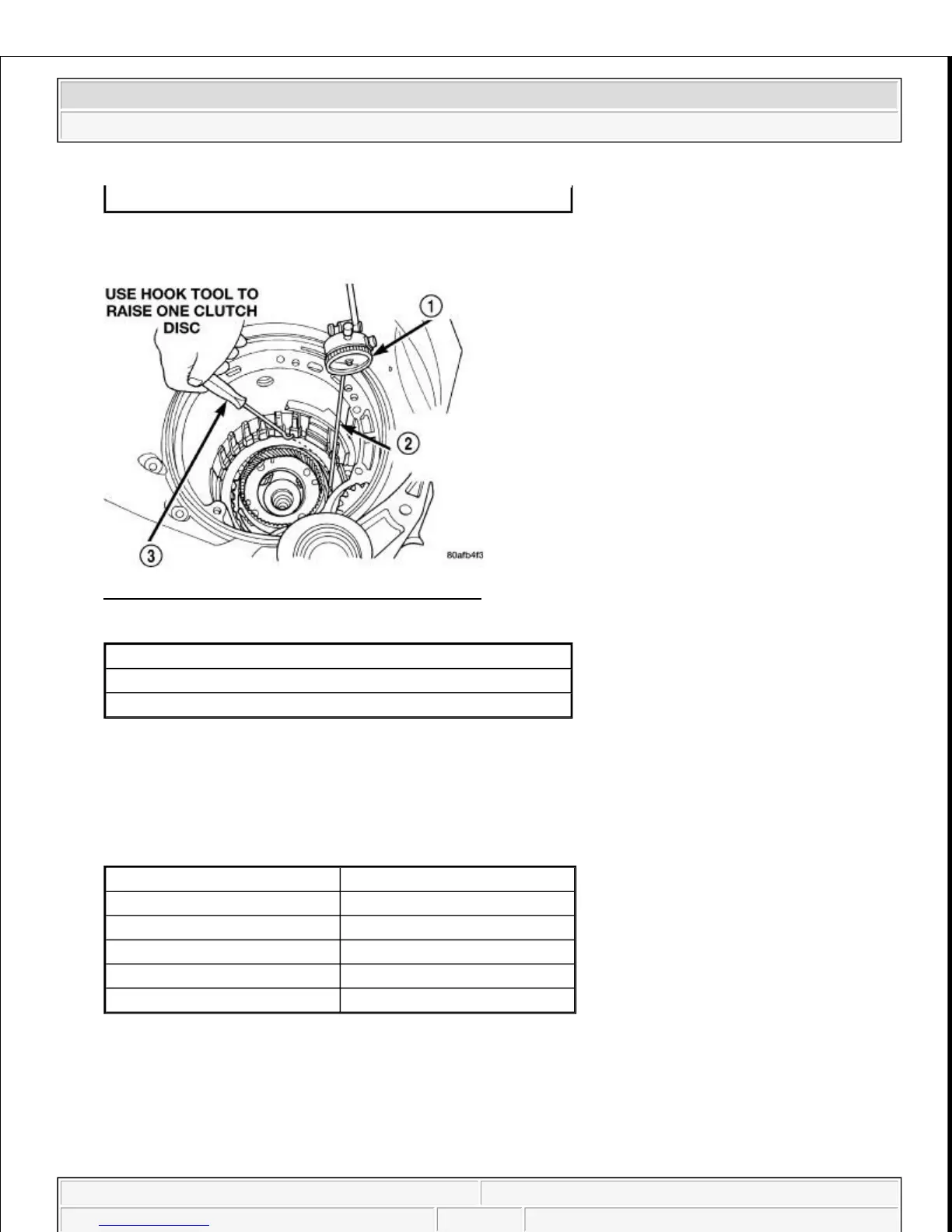

Fig. 134: Check Low/Reverse Clutch Clearance
Courtesy of CHRYSLER LLC
25. Set up dial indicator (1) to measure low/reverse clutch clearance. Press down on clutch pack with finger
and zero dial indicator. Low/Reverse clutch pack clearance is 0.89-1.47 mm (0.035-0.058 in.) . Set up
indicator and record measurement in four places. Take average of readings and select the proper
low/reverse reaction plate to achieve specifications.
LOW/REVERSE REACTION PLATE
26. Install 2/4 clutch pack (1, 2).
ILLUSTRATION)
1 - DIAL INDICATOR
2 - DIAL INDICATOR TIP TOOL 6268
3 - HOOK TOOL
PART NUMBER THICKNESS
4799846AA 5.88 mm (0.232 in.)
4799847AA 6.14 mm (0.242 in.)
4799848AA 6.40 mm (0.252 in.)
4799849AA 6.66 mm (0.262 in.)
4799855AA 6.92 mm (0.273 in.)
