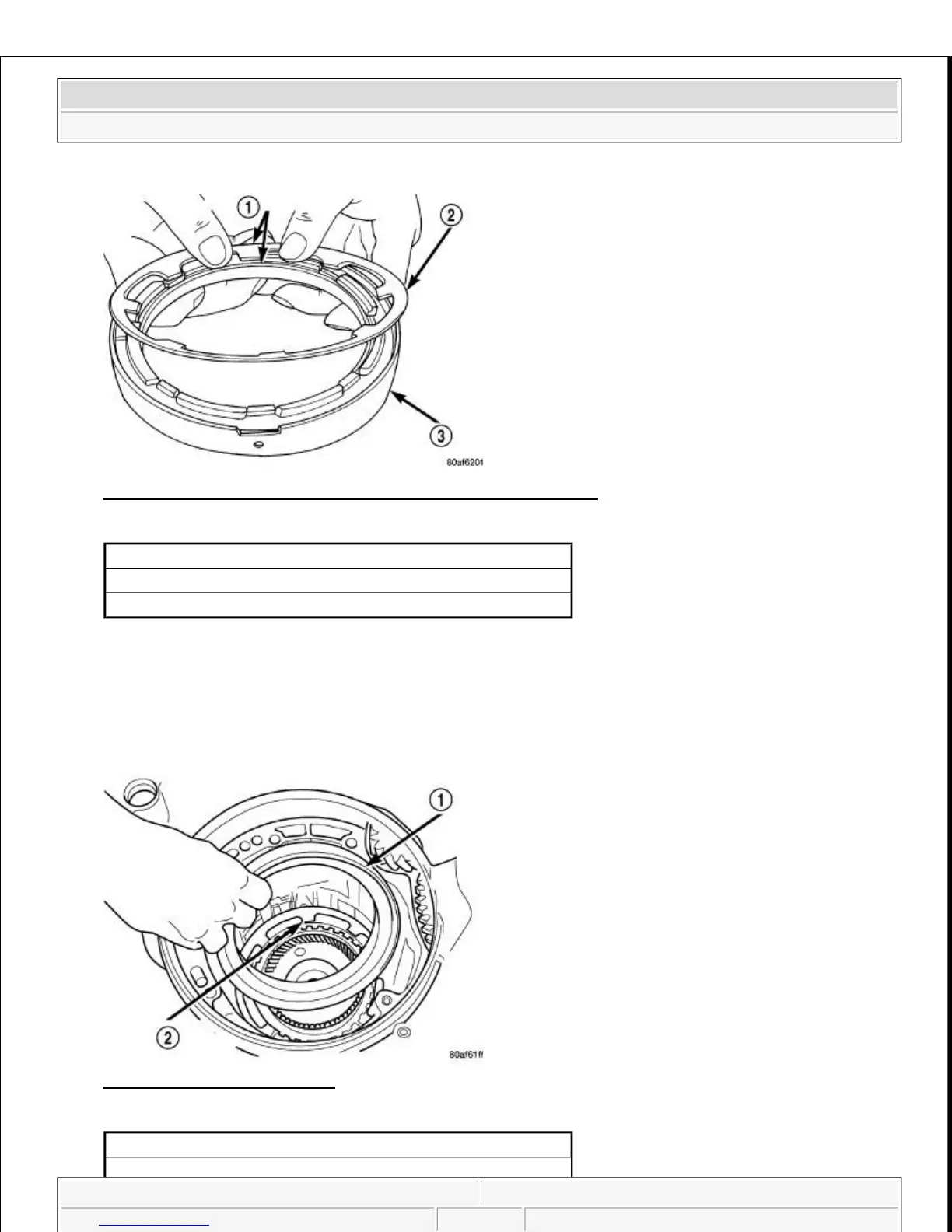

Fig. 135: Proper Orientation Of 2/4 Clutch Retainer & Spring
Courtesy of CHRYSLER LLC
27. Orient 2/4 clutch return spring to retainer (3).
Fig. 136: 2/4 Clutch Retainer
Courtesy of CHRYSLER LLC
1 - NOTE POSITION
2 - RETURN SPRING
3 - 2/4 CLUTCH RETAINER
NOTE: The 2/4 Clutch Piston has bonded seals which are not individually
serviceable. Seal replacement requires replacement of the piston
assembly.
