AC Power Supply LEDs and Connector for Cisco ASR 1013
This section provides information about the AC power supplies on the rear of the Cisco ASR 1013 Router.
The power supply module contains three fans. A total of six fans are used to cool the ASR 1013 system and
power supply. The airflow direction is front to back.
The information in this section applies to the ASR1013/06-PWR-AC power supply. The Cisco ASR 1013
Router and the Cisco ASR 1006 Router support this power supply.
Note
Power supply modules with internal fan modules install into the rear of the chassis. These modules contain
integral handles to ease installation and removal (no insertion or extraction levers are provided).
Guide pins located at the rear of these modules help center locate the modules and reduce stress to the midplane
and module mounted connectors. Four captive screws (tool operated latches) are provided on the modules

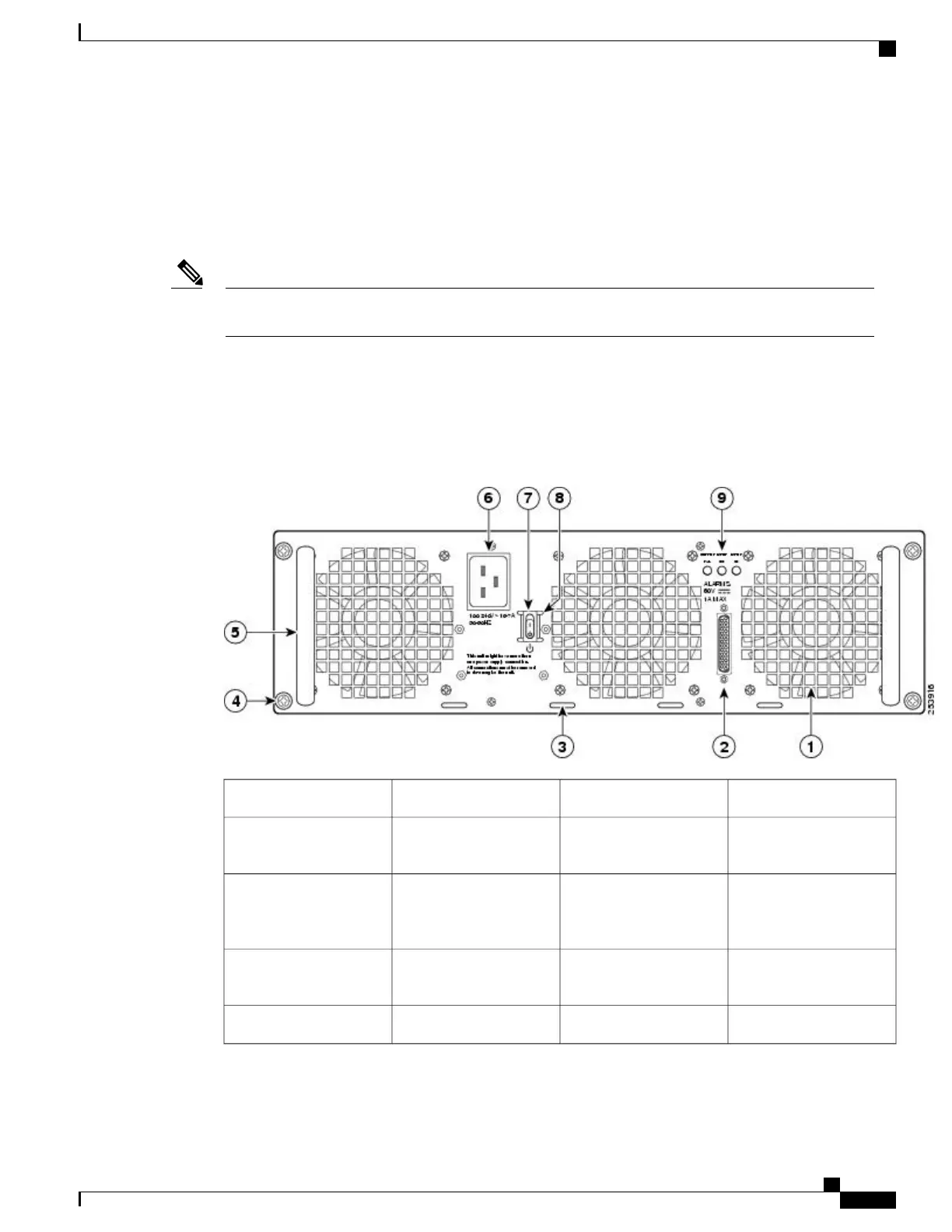

face plate (chassis rear) to secure these modules into the chassis. The following figure shows the AC power
supply for the Cisco ASR 1013 Router. The Cisco ASR 1013 Router supports up to four power supplies.
AC power inlet6AC power supply fan1
AC power supply standby
switch
7DB-25 alarm connector2
Protective shielding on
both sides of the standby
switch
8Tie-wrap tab3
AC power supply LEDs9AC power supply captive
screw
4
——
AC power supply handle5
Cisco ASR 1000 Series Router Hardware Installation Guide
77
Cisco ASR 1000 Series Routers Component Overview
AC Power Supply LEDs and Connector for Cisco ASR 1013

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
