Cisco ASR 1002

——
Slot 1 connected to the
half-height SPA slot
2
Cisco ASR 1002-X Router
In the Cisco ASR 1002-X Router, the integrated SIP supports:
•
Three removable half-height SPAs in Bays 1, 2, and 3
•
A built-in 6xGE SPA
The SPAs on the Cisco ASR1002-X support online insertion and removal. However, the SIP on the Cisco
ASR 1002-X Router is built into the chassis and is not a field-replaceable unit.
Note

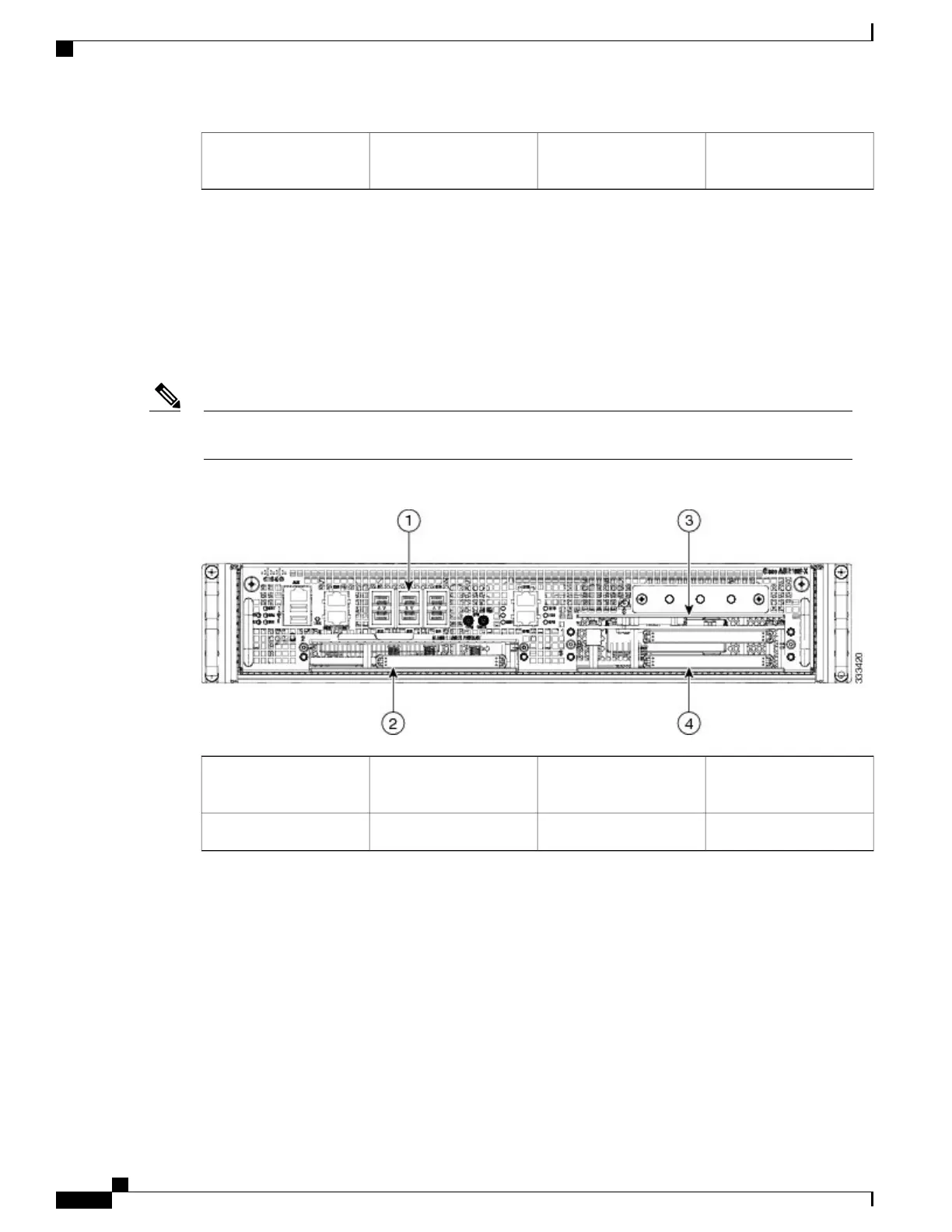

Figure 4-8 shows the slot numbering for the Cisco ASR 1002-X Router.
Cisco SPA subslot 136xGE Built-in SPA in
Subslot 0
1
Cisco SPA subslot 34Cisco SPA subslot 22
Cisco ASR 1000 Series Router Hardware Installation Guide
110
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002-X Router
