Cisco ASR 1002 Hardware Installation Guide

•
The Cisco ASR 1002 Router should be installed off the floor. Dust that accumulates on the floor is drawn
into the interior of the router by the cooling fans. Excessive dust inside the router can cause
overtemperature conditions and component failures.
•
There must be approximately 19 inches (48.3 cm) of clearance at the front and rear of the chassis to
install and replace FRUs, or to access network cables and equipment.
•
The Cisco ASR 1002 Router needs adequate ventilation. Do not install it in an enclosed cabinet where
ventilation is inadequate.
•
Have the cable-management bracket available if you plan to install it on the front of the chassis.
•
An adequate chassis ground (earth) connection exists for your router chassis (see the Attaching a Chassis
Ground Connection, on page 249 section ).
• Always follow proper lifting practices as outlined in the Electrical Safety” section on page 5-21 , when
handling the chassis.
Equipment Shelf or Tabletop Installation
To mount your Cisco ASR 1002 Router on an equipment shelf or tabletop, follow these steps.
Remove any debris and dust from the tabletop or platform, as well as the surrounding area. Lift the chassis
into position on the equipment shelf or tabletop (see Equipmet Shelf for Tabletop Installation image .
At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep
your back straight and lift with your legs, not your back. Statement 164 The chassis in the follwing image
does not represent the Cisco ASR 1002 Router.
Warning

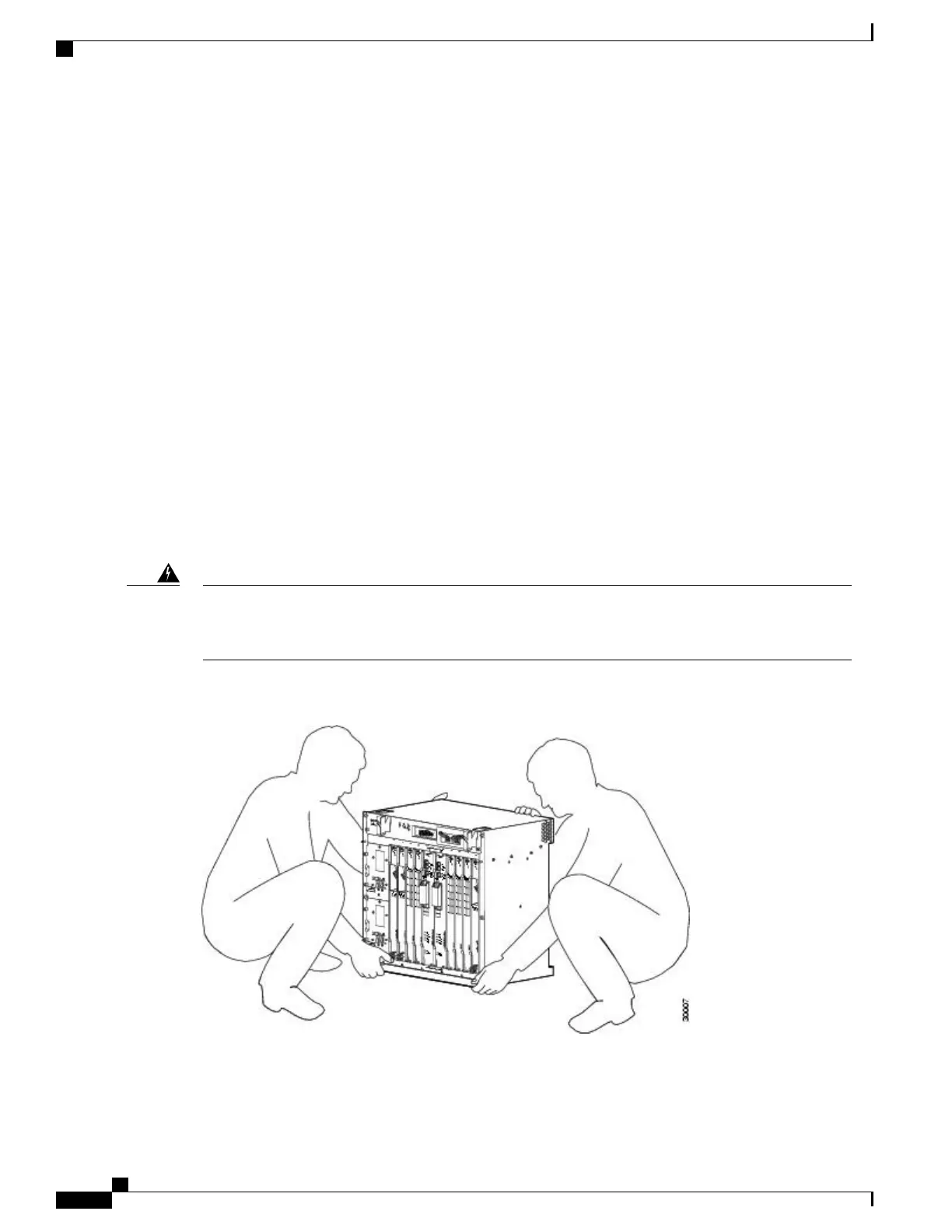

Figure 87: Lifting the Chassis
Cisco ASR 1000 Series Router Hardware Installation Guide
236
Cisco ASR 1002 Router Overview and Installation
Equipment Shelf or Tabletop Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
