Cisco ASR 1002 Hardware Installation Guide

The Cisco ASR 1002 Router supports three half-height SPAs and an optional built-in 4xGE SPA. The Cisco
ASR 1002 Router supports all the general-purpose routing and security features of the Cisco ASR 1000 Series
Routers. It uses the same internal control and data-plane architecture as the other Cisco ASR 1000 Series
Routers.
The Cisco ASR 1002 Router supports:
•
Cisco ASR1000-ESP5 or Cisco ASR1000-ESP10 as a field-replaceable unit (FRU)
•
The Cisco Embedded Route Processor which supports 2MB upgradeable BootROM and 8 GB eUSB
bulk storage.
•
1 + 1 redundant AC or DC power supplies.
•
Stratum-3 network clocking per GR-1244-CORE, with T1/E1 BITS interface or SPAs as timing sources.
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
The Cisco ASR 1002 Router supports upgradeable Cisco ASR1000-ESP5 or ASR1000-ESP10 assembly and
the power supply modules as field-replaceable units. The Cisco integrated ASR1000-SIP10 and Cisco built-in
ASR1000-RP1 assemblies are fixed into the chassis and are not upgradeable; but the shared port adapters in
the SIP are field upgradable.
This section contains the following topics:
•
Front View, on page 220
•
Rear View, on page 221
•
Cisco ASR 1002 Router Slot Numbering, on page 222
Front View

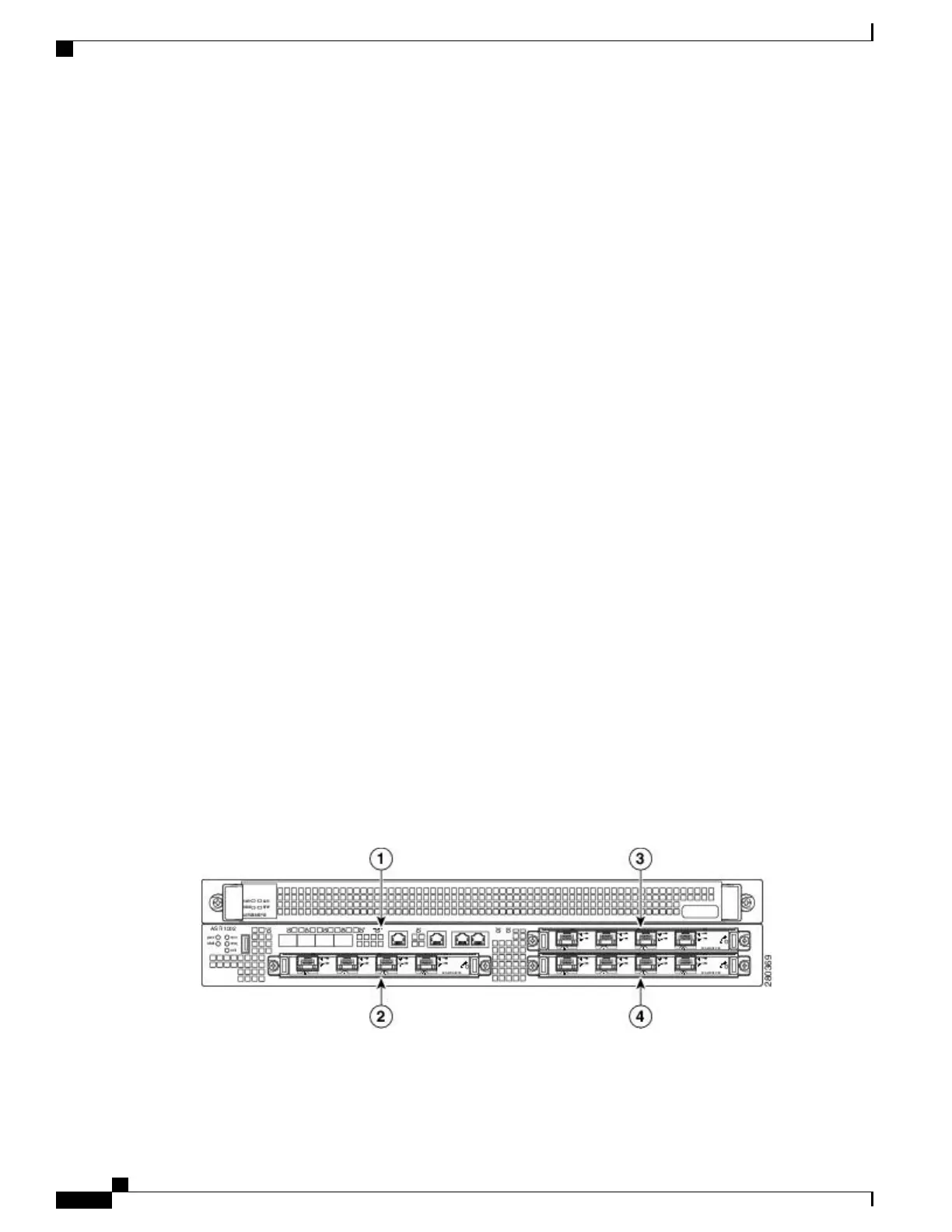

Cisco ASR 1002 router front view shows the Cisco ASR 1002 Router with modules installed.
Figure 79: Cisco ASR 1002 Router — Front View
Cisco ASR 1000 Series Router Hardware Installation Guide
220
Cisco ASR 1002 Router Overview and Installation
Front View

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
