Rear View of the Cisco ASR 1002-X Router
The following image shows the Cisco ASR 1002-X Router AC power supply.

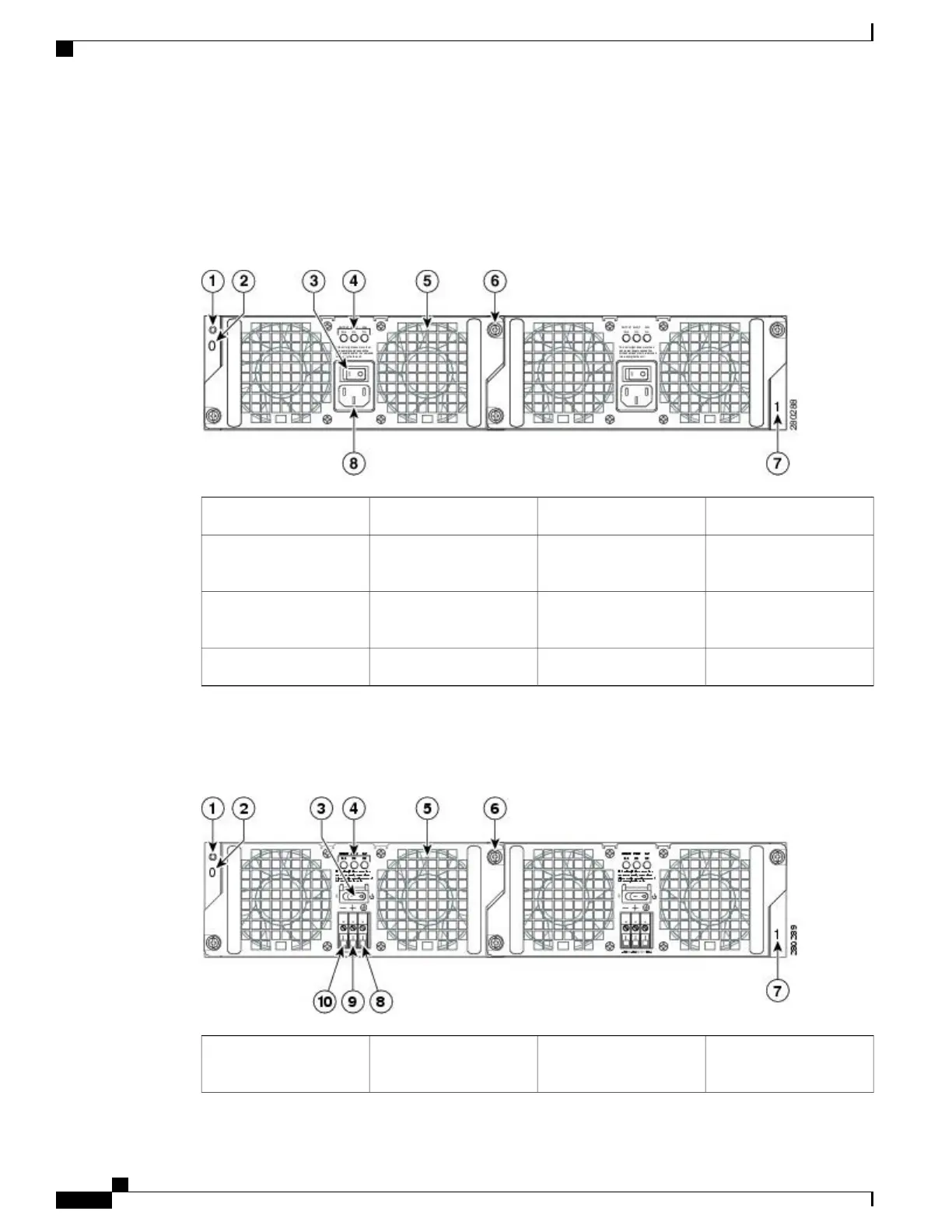

Figure 145: Cisco ASR 1002-X Router AC Power Supply
AC power supply fan5Chassis ESD socket1
AC power supply captive
installation screw
6AC power supply slot
number 0
2
AC power supply slot
number 1
7AC power supply On
(|)/Off (O) switch
3
AC power inlet8AC power supply LEDs4
The following imave shows the Cisco ASR 1002-X Router DC power supply.
Figure 146: Cisco ASR 1002-X Router DC Power Supply
DC power supply captive
installation screw
6Chassis ESD socket1
