Cisco ASR 1002 Hardware Installation Guide

Bottom slot of chassis is
Bay 0
—
One half-height SPA Bay
1
7

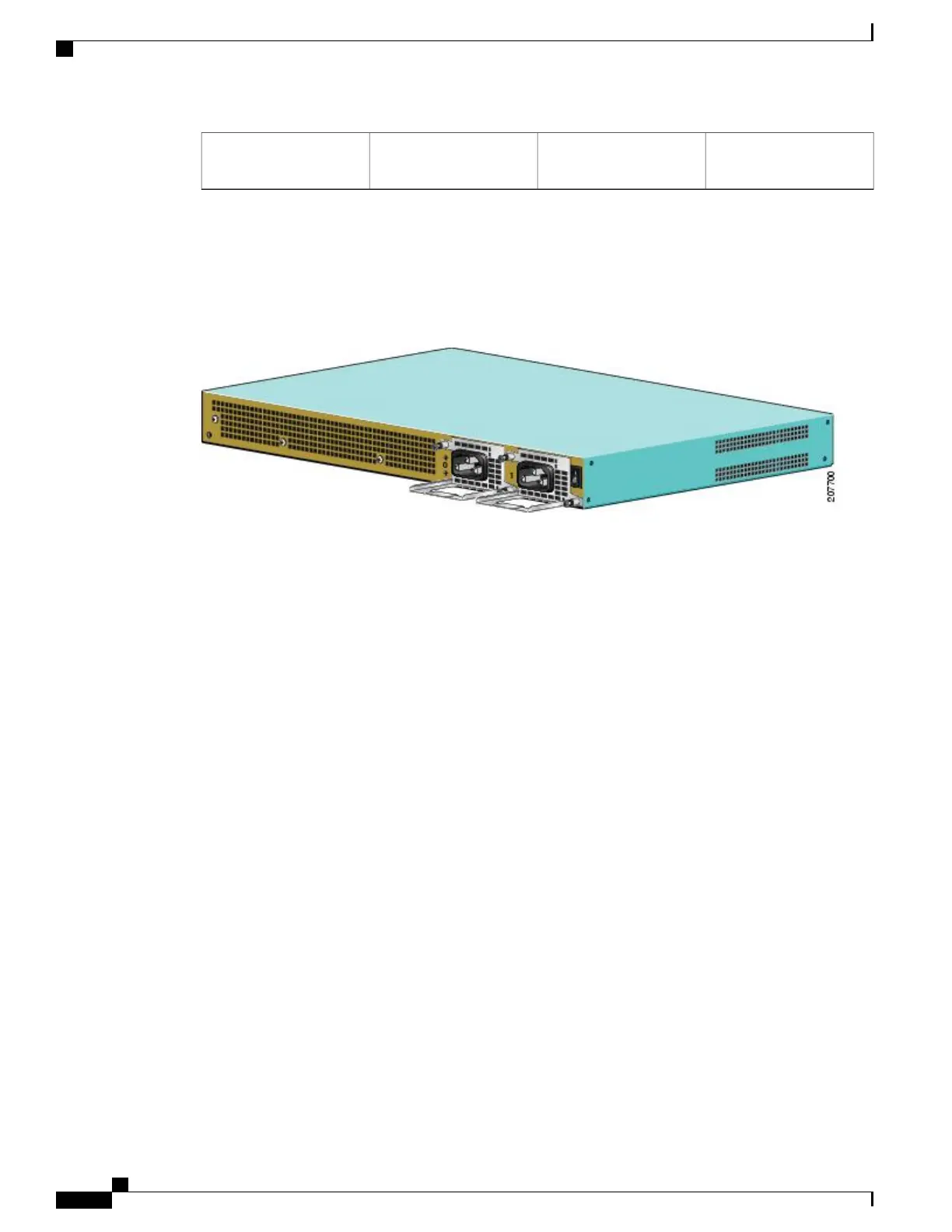

Cisco ASR 1001 Chassis Rear View
The following ima shows the rear of the Cisco ASR 1001 Router with seven fans and two AC or DC power
supplies.
Seven internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. The fans are located at the rear of the chassis. A two-hole grounding lug is located on
the side of the chassis. Each individual fan also has a fan fail status signal. The fan fail signal is asserted if
the fan speed falls below 50% of the rated speed. The fans are numbered from zero (0) to 6, left to right.
Two power supplies, either two AC power supplies or two DC power supplies are accessed from the rear of
the router.
Cisco ASR 1001 Router Slot Numbering
The SPA bay numbering scheme for Cisco ASR 1001 Router is different from the Cisco ASR 1000 SIP card.
The SPA ordering is: Built-in GE ports (SPA 0), SPA Bay 1 (SPA 1), and I/O Board (SPA 2).
The integrated daughter card is not necessarily a SPA; it could be any I/O, such as a harddrive or USB. When
the daughter card is not a SPA, then SPA Bay 2 will be left blank and not present in the system.
The built-in GE ports are logically SPA bay 0 and will be addressed as GE 0/0/x. The half-height SPA slot
is logically SPA bay 1 and ports will be addressed as 0/1/x. Ports on the integrated daughter card are logically
in SPA bay 2 and will be addressed as 0/2/x.
Cisco ASR 1000 Series Router Hardware Installation Guide
418
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Chassis Rear View

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
