Cisco ASR 1002 Hardware Installation Guide

DETAILED STEPS
Step 1
Before connecting a terminal to the console port, configure the terminal to match the chassis console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
After you establish normal router operation, you can disconnect the terminal.
Connecting the Ethernet Management Port Cable
When using the Fast Ethernet Management port in the default mode (speed-auto and duplex-auto) the port
operates in auto-MDI/MDI-X mode. The port automatically provides the correct signal connectivity through
the Auto-MDI/MDI-X feature. The port automatically senses a crossover or straight-through cable and adapts
to it.
However, when the Fast Ethernet Management port is configured to a fixed speed (10/100/1000 Mbps) through
command-line interface (CLI) commands, the port is forced to MDI mode.
When in a fixed-speed configuration and MDI mode:
•
Use a crossover cable to connect to an MDI port
•
Use a straight-through cable to connect to an MDI-X port
The following figure shows the MGMT Ethernet port connector.

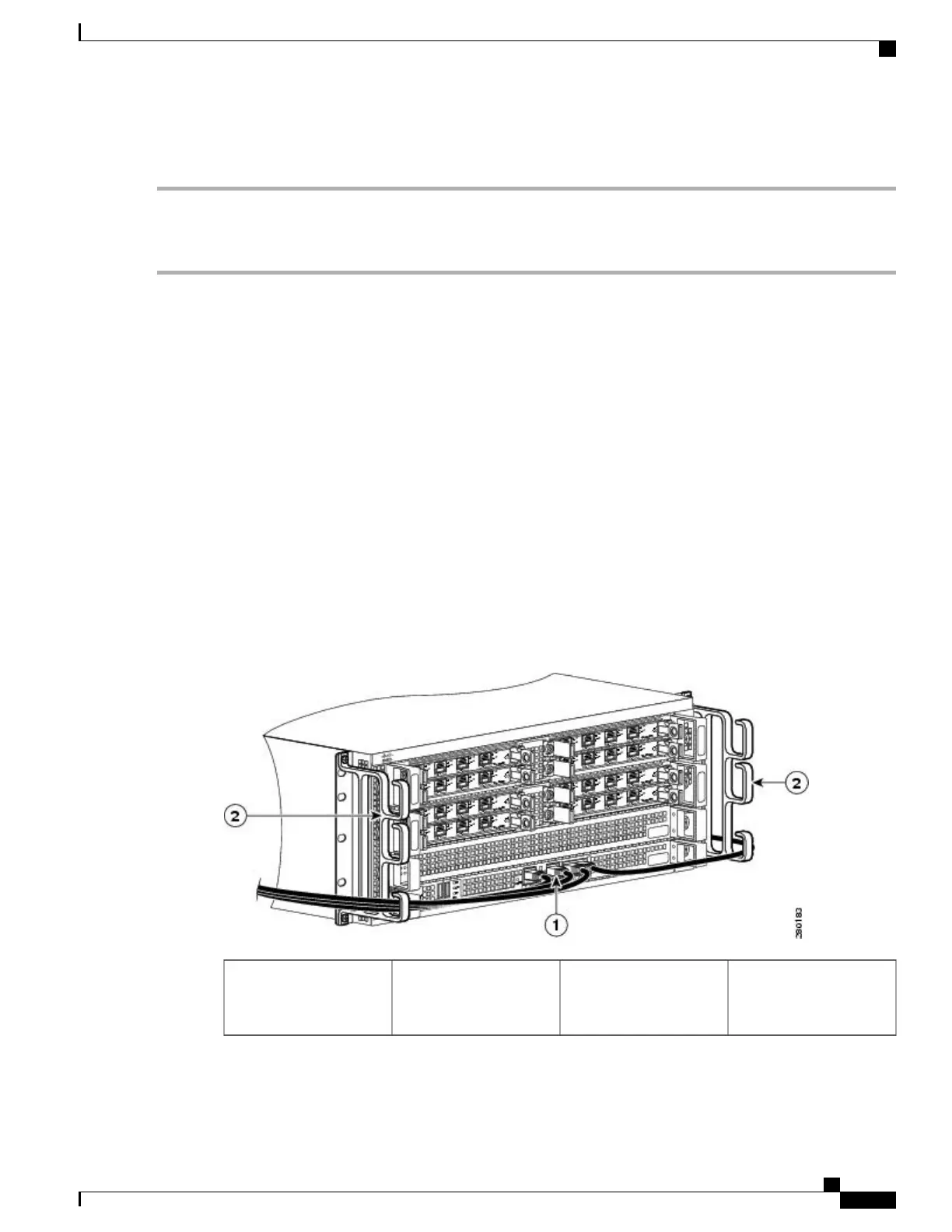

Figure 72: Cisco ASR 1000 Series Route Processor MGMT Ethernet Port Connector
Cable-management
bracket and U feature
device
2MGMT Ethernet port1
Cisco ASR 1000 Series Router Hardware Installation Guide
207
Cisco ASR 1004 Router Overview and Installation
Connecting the Ethernet Management Port Cable

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
