Cisco ASR 1002 Hardware Installation Guide

The folowing image shows the Cisco ASR 1002-F Router on a two-post rack.

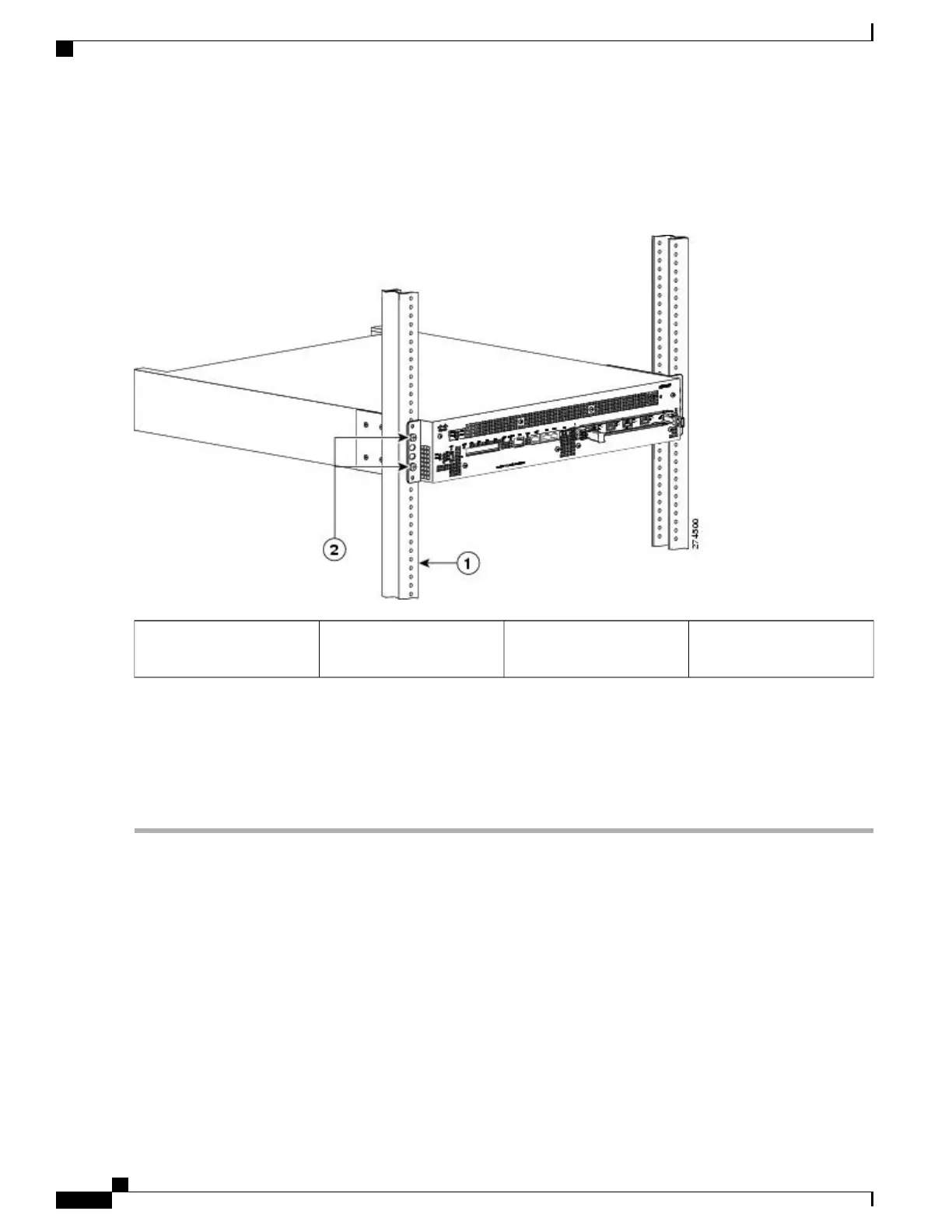

Figure 129: Installing the Cisco ASR 1002-F Router on a Two-Post Equipment Rack
Front rack-mount bracket ear
and holes
2Rack equipment rail1
Step 2
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 3
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack
or mounting strip.
Step 4
For each bracket, insert and tighten two screws to the rack on both sides.
What to Do Next
This completes the procedure for installing the chassis on a two-post rack. Proceed to the Attaching a Chassis
Ground Connection. to continue the installation.
Four-Post Rack Installation
The Cisco ASR 1002-F Router can be flush-mounted in a 19-inch equipment rack using the rack-mounting
kit provided with your system. When handling the chassis, always follow proper lifting practices. See the
“Chassis-Lifting Guidelines” section.
Cisco ASR 1000 Series Router Hardware Installation Guide
298
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
