Cisco ASR 1002 Hardware Installation Guide

Step 4
After the power supply fasteners are loosened, grasp the handle with one hand, support the weight of the power supply
with the other hand, and pull the power supply out of the slot. The following image shows how to remove the Cisco ASR
1001 Router AC power supply cables.

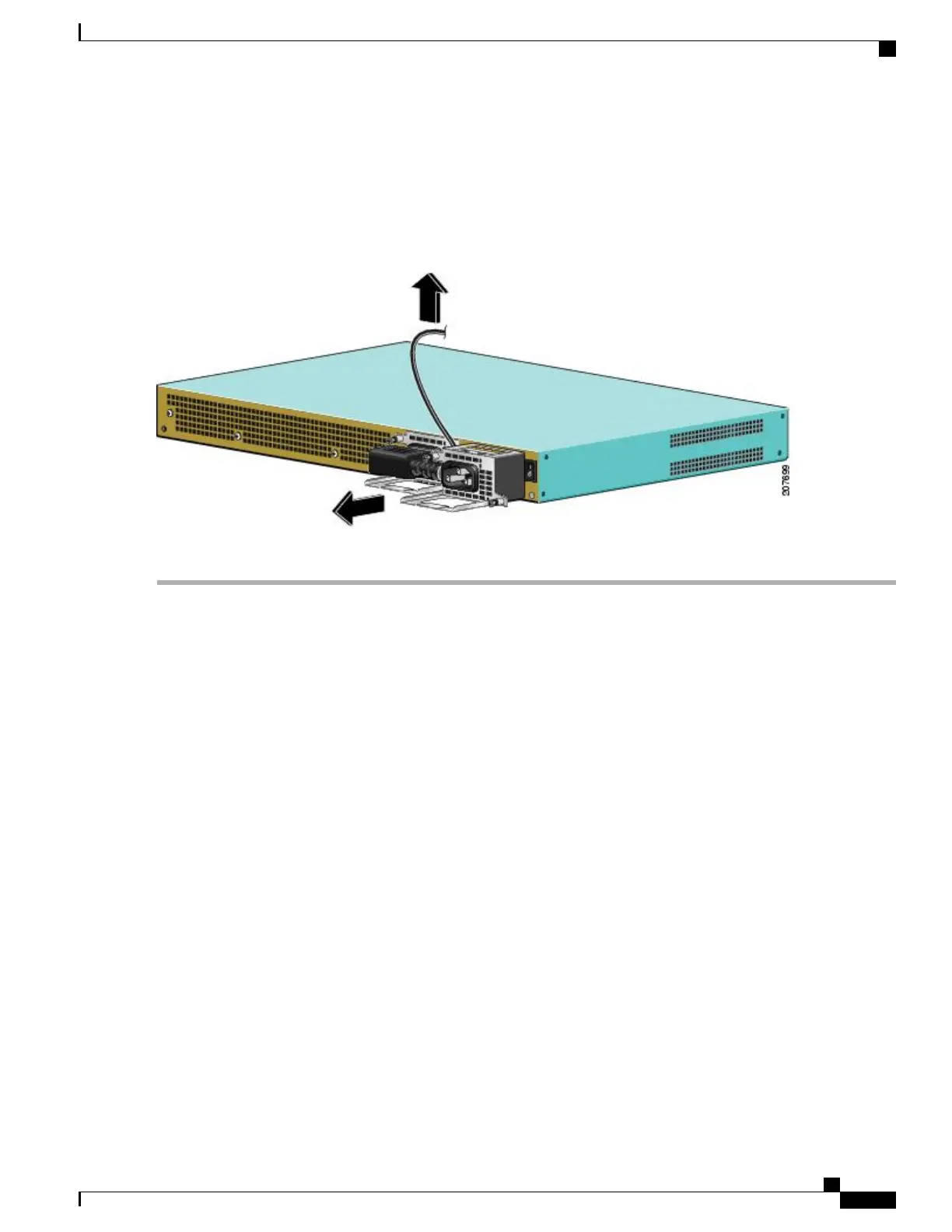

Figure 219: Removing the Cisco ASR 1001 Router AC Power Supply Cables
Step 5
Repeat these steps to remove the AC power supply from Slot PS0.
What to Do Next
This completes the procedure of removing the AC power supply from the Cisco ASR 1001 Router.
Installing DC Input Power on the Cisco ASR 1001 Router
The Cisco ASR 1001 Router DC input connector is compatible with a pluggable Euro-style plug. The input
connector and plug must be UL recognized under UL 486 for field wiring. The connection polarity shall be
from left to right: negative (–), positive (+), and ground. See “Cisco ASR 1001 Router AC Power Supply and
DC Power Supply” figure in the Cisco ASR 1001 Router Power Supply Installation section.
Cisco ASR 1000 Series Router Hardware Installation Guide
451
Cisco ASR 1001 Router Overview and Installation
Installing DC Input Power on the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
