Cisco ASR 1002 Hardware Installation Guide

d) Place the cover aside while wearing an antistatic device, such as a wrist strap.
Step 3
Position the chassis so that you are facing the front of the chassis to remove the DIMM.
Step 4
Locate the DIMM on the ASR 1001 Router. See Figure 14-20, callout 1.
Step 5
Pull down the lever on the DIMM socket to release the corresponding DIMM from the socket. See the following figure.

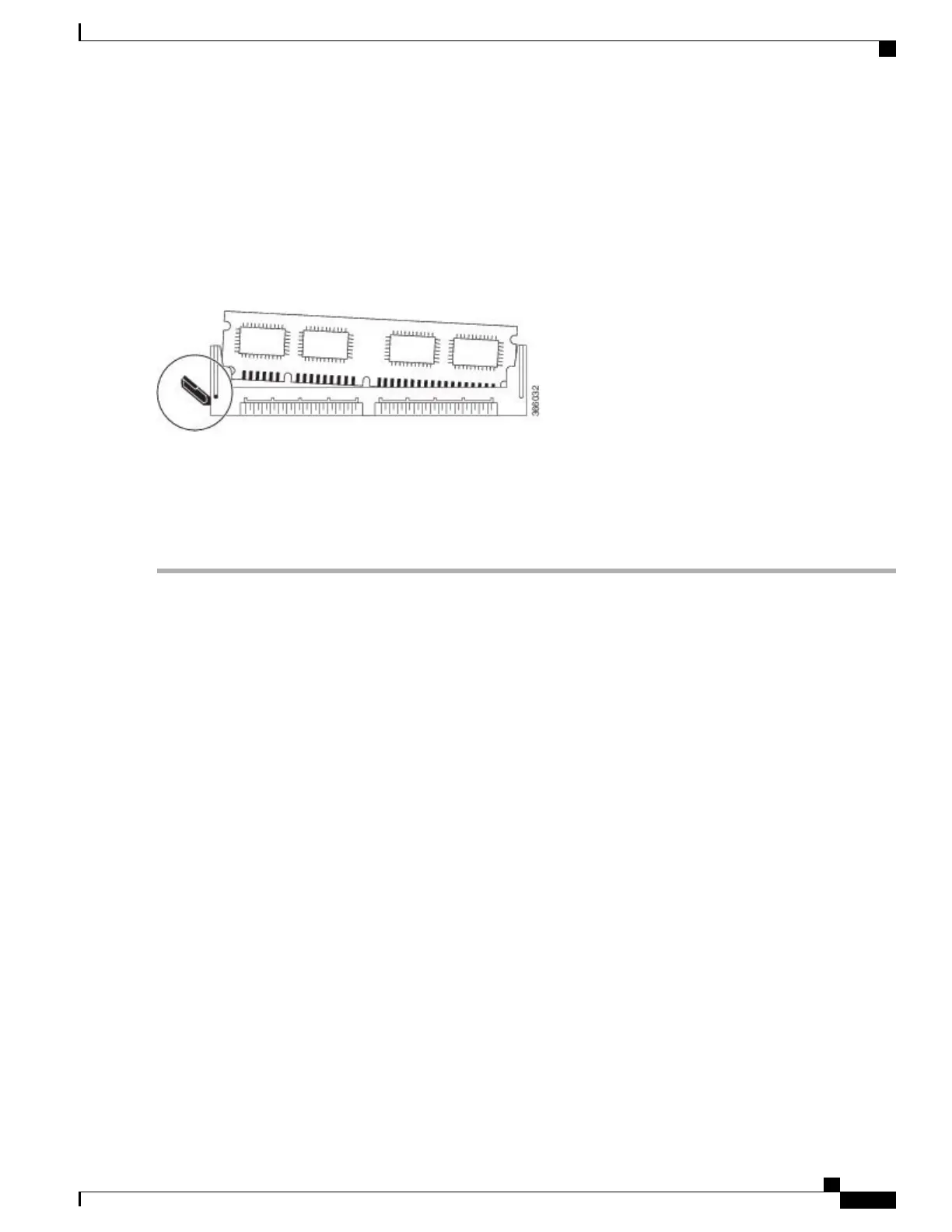

Figure 248: DIMM Socket Release Lever to Remove the DIMM from the Cisco ASR 1001 Router
Step 6
When one end of the DIMM is released from the socket, grasp each end of the DIMM with your thumb and forefinger
and pull the DIMM completely out of the socket. Handle only the edges of the DIMM; avoid touching the memory
module, pins, and the metal traces (the metal fingers along the connector edge of the DIMM) along the socket edge.
Step 7
Place the DIMM in an antistatic bag to protect it from ESD damage.
Step 8
Repeat Step 8 through Step 10 for the remaining DIMMs if required for your upgrade.
What to Do Next
This completes the steps for removing the Cisco ASR 1001 Router DIMMs from the chassis.
Replacing the Cisco ASR 1001 Router DIMM
This section lists the steps to replace a DIMM into the Cisco ASR 1001 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
511
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1001 Router DIMM Memory Modules

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
