Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
Place the DIMM on an antistatic mat or pad while wearing an antistatic device, such as a wrist strap.
2.
Remove the new DIMM from the antistatic bag.
3.
Hold the DIMM component side up, with the connector edge (the metal fingers) closest to you. Hold the
ends of the DIMM between your thumb and forefinger. See the following figure.
4.
Tilt the DIMM to approximately the same angle as the socket and insert the connector edge into the socket.
Note the two notches (keys) on the connector edge of the DIMM. These keys are intended to ensure correct
orientation of the DIMM in the socket.
5.
Note the orientation of the socket key on the DIMM and the DIMM socket, and gently push the DIMM
into the socket until the lever is flush against the side of the DIMM socket, and the DIMM edge connector
is fully inserted. If necessary, rock the DIMM gently back and forth to seat it properly. The following
figure shows how to install the DIMM in the socket for the Cisco ASR 1001 Router.
6.
After the DIMM is installed, check whether the release lever is flush against the side of the DIMM socket.
If it is not, the DIMM might not be seated properly. If the DIMM appears misaligned, carefully remove
it according to the removal procedure and then reseat it in the socket. Push the DIMM firmly back into
the socket until the release lever is flush against the side of the DIMM socket.
7.
Repeat Step 4 through Step 6 for the remaining DIMMs.
8.
Replace the Cisco ASR 1001 Router top cover:
9.
Install the power supplies into the chassis. See: xref Installing AC Input Power to Cisco ASR 1001 Router,
xref Installing DC Input Power on the Cisco ASR 1001 Router
DETAILED STEPS
Step 1
Place the DIMM on an antistatic mat or pad while wearing an antistatic device, such as a wrist strap.
DIMMs are sensitive components that can be shorted by mishandling; they are susceptible to ESD damage.
Handle the DIMM by the edges only, and avoid touching the pins.
Caution
Step 2
Remove the new DIMM from the antistatic bag.
Step 3
Hold the DIMM component side up, with the connector edge (the metal fingers) closest to you. Hold the ends of the
DIMM between your thumb and forefinger. See the following figure.

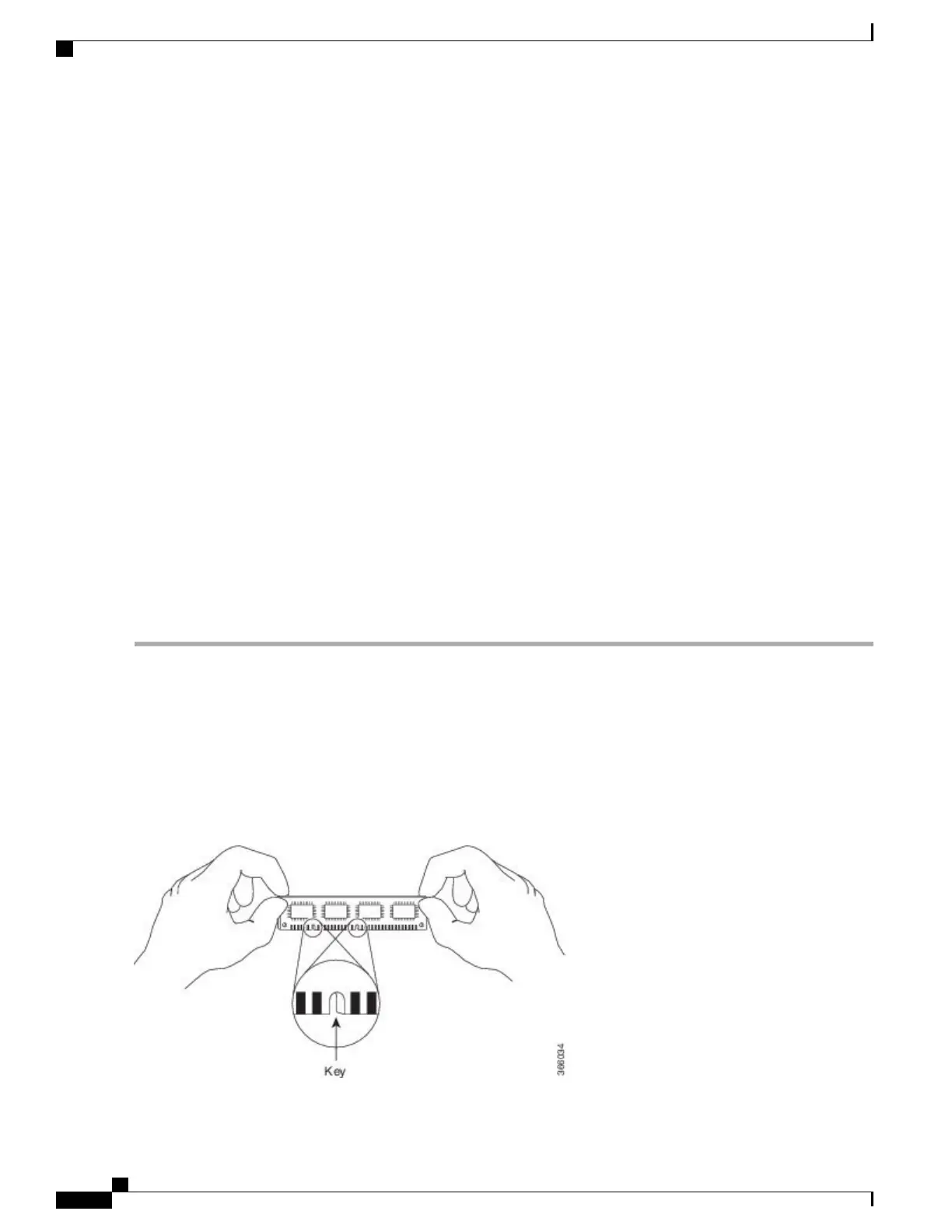

Figure 249: Handling the Cisco ASR 1001 Router DIMM
Cisco ASR 1000 Series Router Hardware Installation Guide
512
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1001 Router DIMM Memory Modules

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
