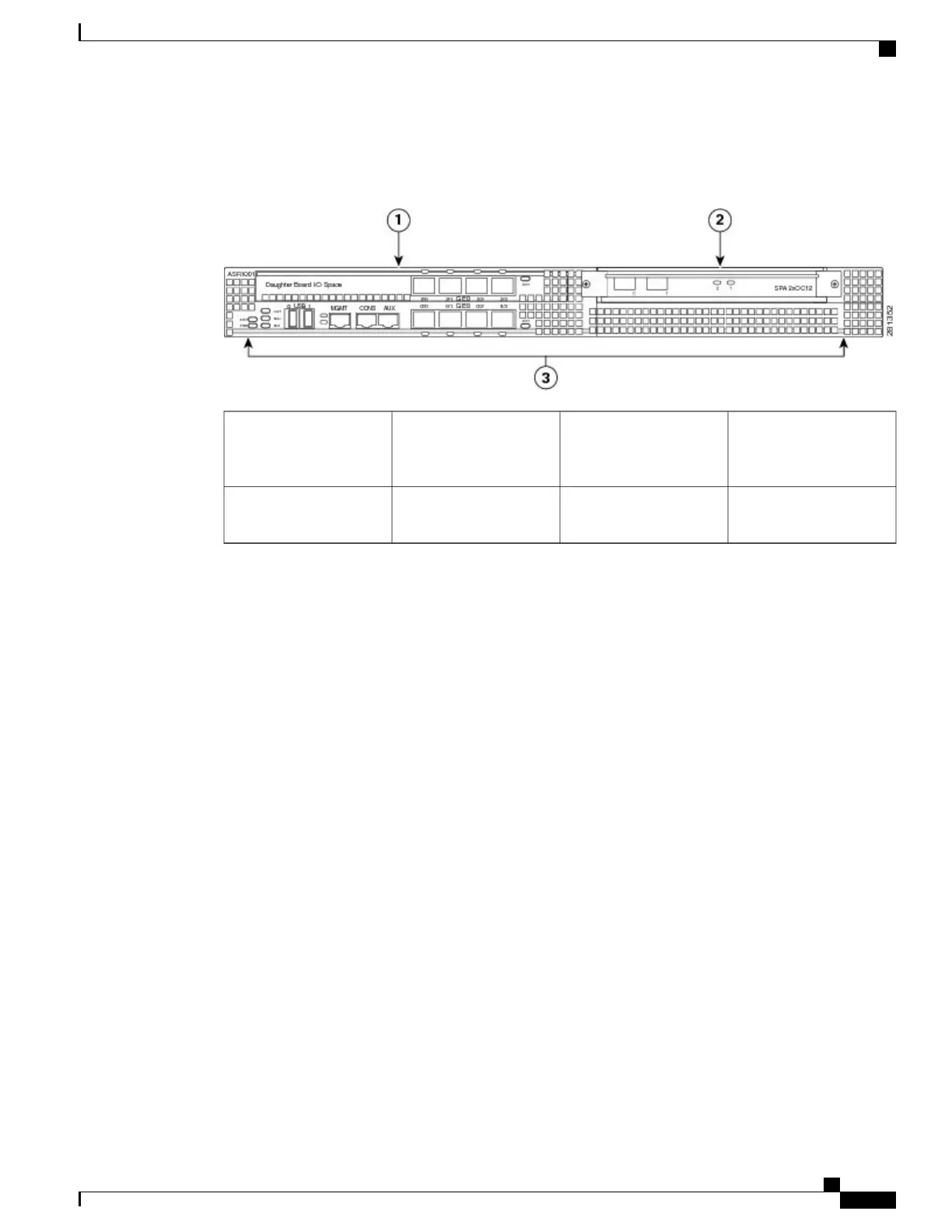

The following image shows slot numbering for the Cisco ASR 1001 Router.
Figure 204: Cisco ASR 1001 Router Slot Numbering
Slot 0 connected to the
built-in 4x1GE SPA on
the mainboard
3Slot 2 connected to the
flexible integrated
daughter card
1
——
Slot 1 connected to the
half-height SPA slot
2
Cisco ASR 1001 Router Components
The Cisco ASR 1001 Router system is derived from the architecture of the other Cisco ASR 1000 Series
routers. The Cisco ASR 1001 Router contains a single mainboard that provides all the functions of a Cisco
ASR1000-RP (route proce4ssor), a Cisco ASR1000-SIP (carrier card), and a Cisco ASR1000-ESP (forwarding
processor). This mainboard assembly also contains a built-in 4x1 GE SPA providing four SFP ports. The
Cisco ASR1000-RP section of the mainboard provides all the traditional management interfaces (Ethernet,
Console, Aux) and a storage interface (USB only). The Cisco ASR1000-SIP section provides one half-height
SPA bay and a supports a flexible integrated daughter card. The Cisco ASR1000-ESP section provides a CPP
based forwarding engine including a security coprocessor.
The main components of the Cisco ASR 1001 Router, ASR1000-RP1, ASR1000-ESP5, and ASR1000-SIP10
are fixed in the chassis and are not upgradeable, except for the power supplies and SPAs.
Cisco Embedded ASR1000-RP1 for Cisco ASR 1001 Router Description
The Cisco ASR 1000 Series route processor (embedded for the Cisco ASR 1001 Router) is the central control
processor and runs the network operating system.
The Cisco embedded ASR1000-RP1 supports management interfaces such as the Ethernet network management
port and console and auxiliary serial ports. It has LED status indicators and one USB port that can be used
with smart cards for either secure key distribution or image or configuration file updates.
The Cisco embedded ASR1000-RP1 deviates from the other ASR Series Route Processor 1 for the Cisco
ASR 1006 router and the Cisco ASR 1004 Router in the following ways:
•
Bulk file storage is on a large eUSB device (to 8 GB supported) with no SATA hard-drive supported.
Cisco ASR 1000 Series Router Hardware Installation Guide
419
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Components

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
