• SPA-5x1GE-V2—slot 0/1
The following figure shows the slot numbering for the Cisco ASR 1002-F Router.

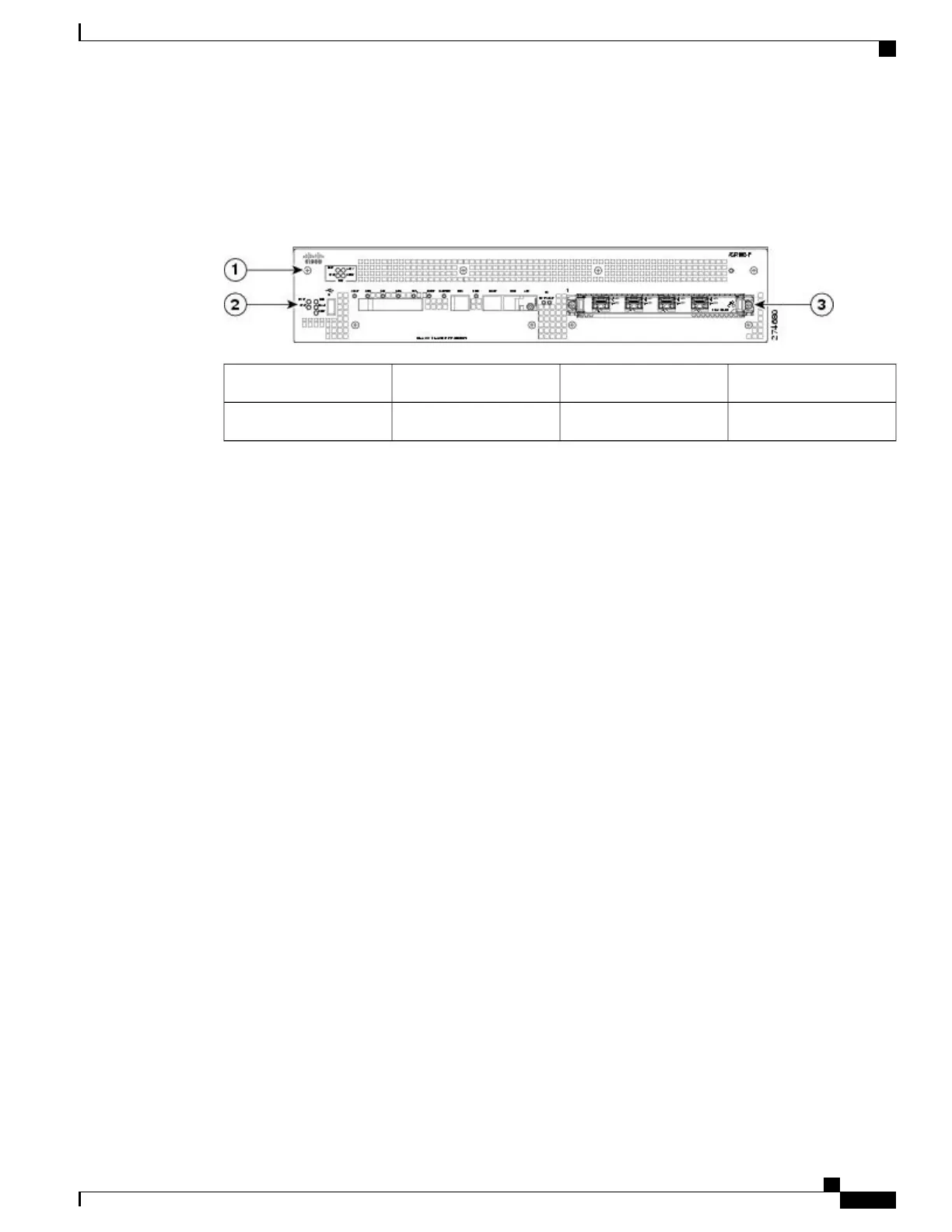

Figure 118: Cisco ASR 1002-F Router Slot Numbering
Slot 23Slot 01
——
Slot 12
Cisco ASR 1002-F Router Components
The Cisco ASR 1002-F Router system is derived from the architecture of the Cisco ASR 1002 Router. The
main components of the Cisco ASR 1002-F Router are:
•
Cisco integrated RP
•
Cisco integrated ASR 1002-ESP-F
•
Cisco ASR 1002-SIP10-F
•
AC or DC power supplies
Cisco Integrated RP and Cisco ASR 1002-ESP-F Description
The Cisco ASR 1002-F Router supports the following integrated components:
• Cisco integrated RP—The Cisco ASR 1000 Series integrated Route Processor (RP) for the Cisco ASR
1002-F Router is the central control processor and runs the network operating system. The Cisco integrated
RP supports management interfaces such as the Management Ethernet port and console and auxiliary
serial ports. It has LED status indicators, an RJ-45 plug for a BITS timing reference, and one USB port
that can be used with smart cards for secure key distribution or for image or configuration file updates.
• Cisco ASR 1002-ESP-F services processor (does not support online insertion and removal)—The Cisco
embedded services processor is based on the Cisco QuantumFlow Processor for next-generation
forwarding and queuing. It performs all baseline packet routing operations, including MAC classification,
Layer 2 and Layer 3 forwarding, quality of service (QoS) classification, policing and shaping, security
access control lists (ACLs), VPNs, load balancing, and NetFlow. The Cisco ASR 1002-ESP-F can only
be used in the Cisco ASR 1002-F Router and has forwarding performance of 2.5 Gbps and does not
support online insertion or removal.
Cisco ASR 1000 Series Router Hardware Installation Guide
279
Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Components

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
