Cisco ASR 1002 Hardware Installation Guide

–48 VDC Power Supply LEDs and Connectors for Cisco ASR 1006
The information in this section applies to the ASR1006-PWR-DC power supply. If you are using the
ASR1013/06-PWR-DC power supply, see the xref
c_–48_VDC_Power_Supply_LEDs_and_Connectors_for_Cisco_ASR_1013_1206865.xml.
Note
The maximum branch circuit for the –48 VDC power supply module is 60 A and the minimum is 50 A. The
–48 VDC power supply operates within specification from –48 VDC to –60 VDC continuously. The Cisco
ASR 1006 Router has two of the same type power supplies in power supply slot 0 and power supply slot 1.
The power supply slot numbers are on the left side of the chassis and the power supplies are located on the
floor of the chassis.
The –48 VDC input connector is a terminal block style that supports a AWG #6 wire. The terminal block is
compliant with safety agencies’ guidelines and electrical requirements of the supply. Use the tie wraps to dress
the input cable wires. There are three tie wrap tabs on the power supply.
The terminal block accepts two double-hole lugs, one for –48 V input and another for –48 V RTN. A plastic
cover fits over the terminal block to prevent accidental contact. See xref figure.
The studs on the terminal block are similar to the safety ground device on the side of the Cisco ASR 1006
Router. For information on the safety ground lug on the side of the chassis.
Note
The unit requires a power switch circuit breaker to serve as the main disconnect for the –48 VDC input to the
power supply. The circuit breaker meets international safety requirements and supports 80 VDC and has a
current rating of 50 A. The power supply unit is secured into the system chassis with four captive screws
mounted on the faceplate.
The following figure shows the –48 VDC power supplies at the rear of the Cisco ASR 1006 Router. The Cisco
ASR 1006 Router supports up to two power supplies.

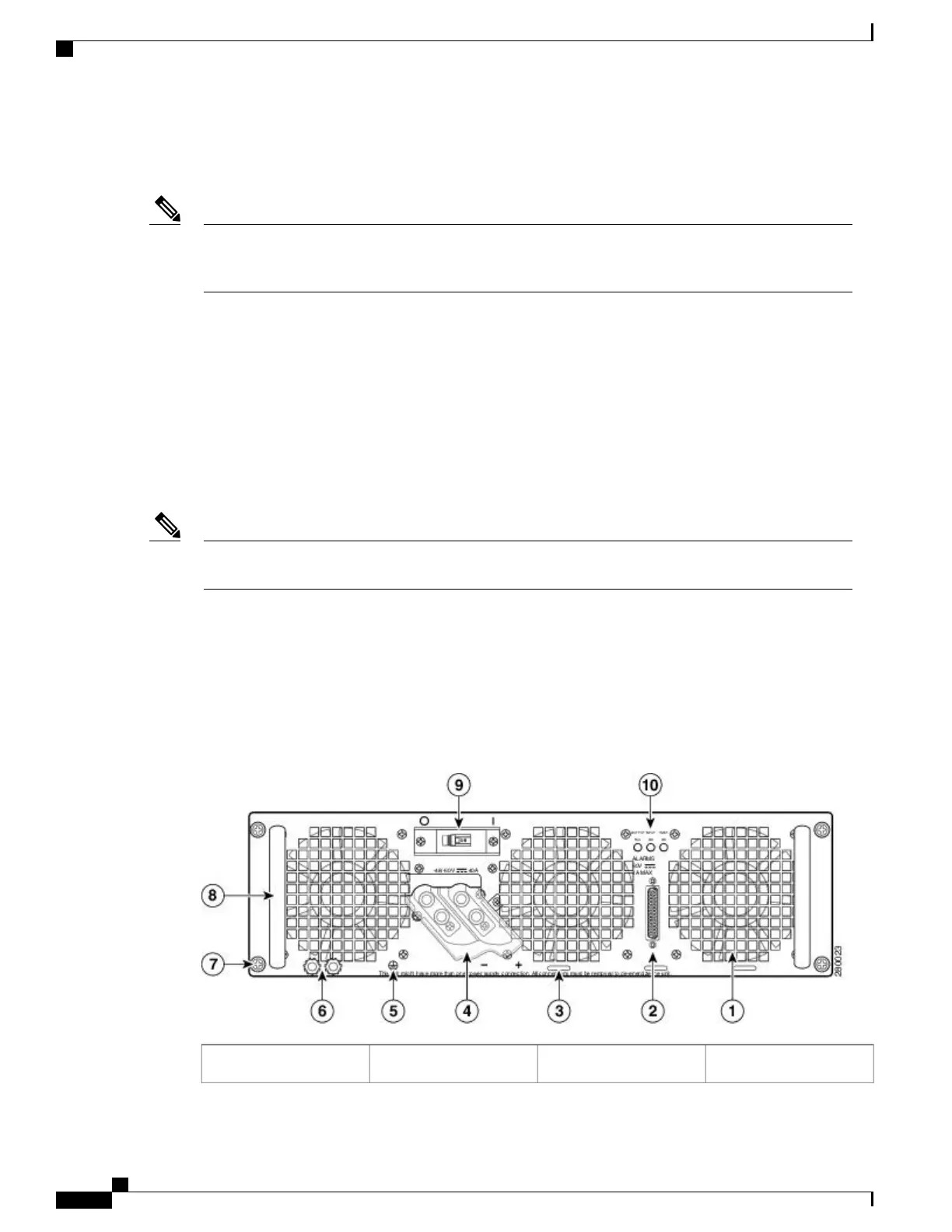

Figure 12: Cisco ASR 1006 Router – 48 VDC Power Supply
Ground lugs6Fans1
Cisco ASR 1000 Series Router Hardware Installation Guide
56
Cisco ASR 1000 Series Routers Component Overview
–48 VDC Power Supply LEDs and Connectors for Cisco ASR 1006

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
