Cisco ASR 1002 Hardware Installation Guide

Do not run the AC power cord through the power supply handles as shown in Connecting AC Input Power
to Cisco ASR 1002 router image.
Caution

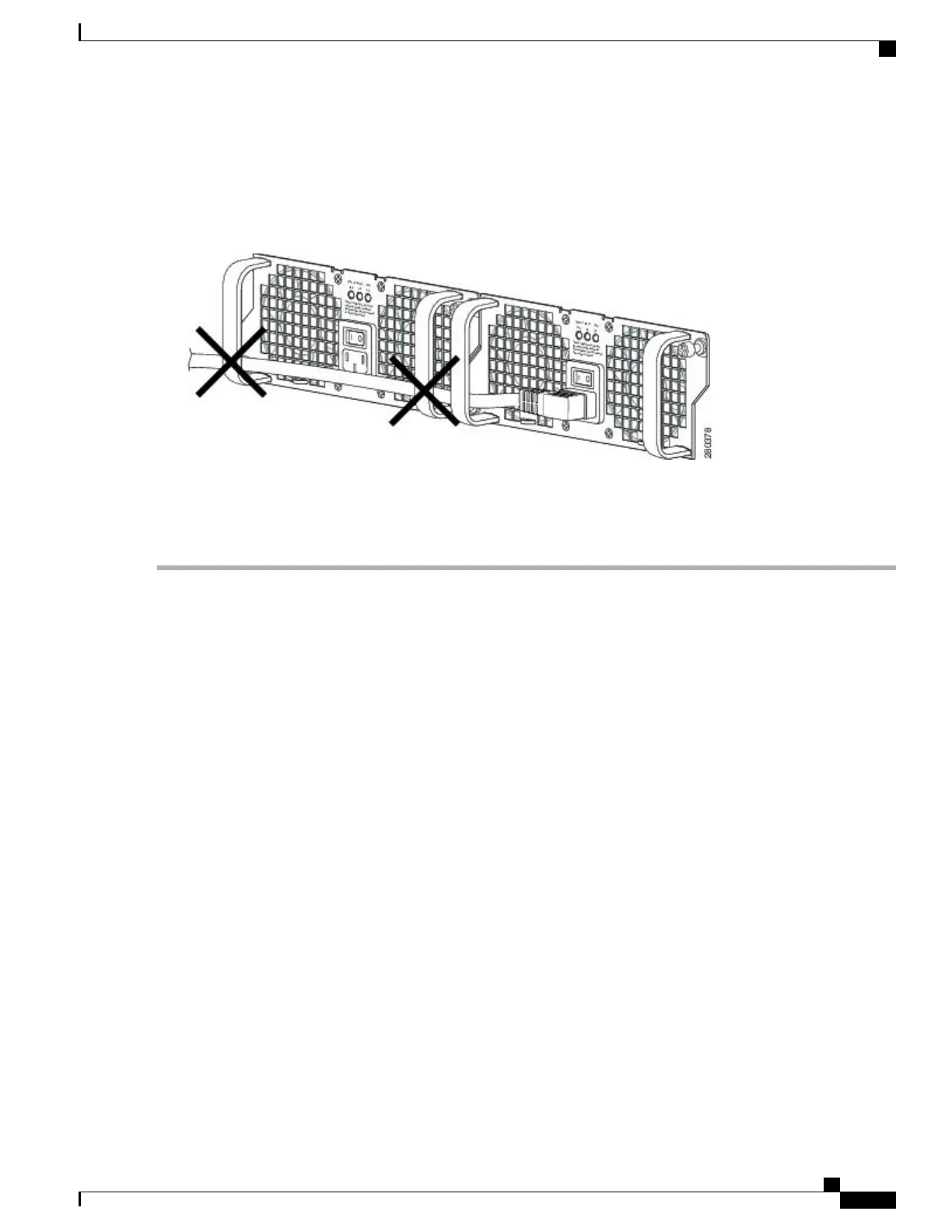

Figure 103: Incorrect Cabling on Cisco ASR 1002 Router AC Power Supply
Using a tie wrap for the AC power cable is optional and not necessary. However, if you do attach the AC
power cable to a power supply tab and then you remove the AC power cable for some reason, check for any
damage to the cable after you cut the tie wrap off. If the power cord is damaged, replace it immediately.
Note
Step 4
Plug the AC power supply cable into the AC power source.
What to Do Next
This completes the procedure for connecting an AC power supply in the Cisco ASR 1002 Router.
Connecting 48 VDC Input Power to Cisco ASR 1002 Router
The –48 VDC power supply input connector is a Euro-style terminal block. A means to provide strain relief
to the input wires is provided on the power supply. The connection order is negative (–), positive (+), and
GND; but this is the order from left to right that the terminals appear on the power supply, not the order in
which the leads should connected during installation. The order the leads should be attached is GND, positive
(+), and negative (-).
The recommended branch circuit breaker for the Cisco ASR 1002 Router –48 VDC power supply is 30 A.
Use a AWG #10 wire gauge on the 30 A circuit.
Cisco ASR 1000 Series Router Hardware Installation Guide
259
Cisco ASR 1002 Router Overview and Installation
Connecting 48 VDC Input Power to Cisco ASR 1002 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
