Cisco ASR 1002 Hardware Installation Guide

The following image shows the –48 VDC power supply for the Cisco ASR 1002 Router.

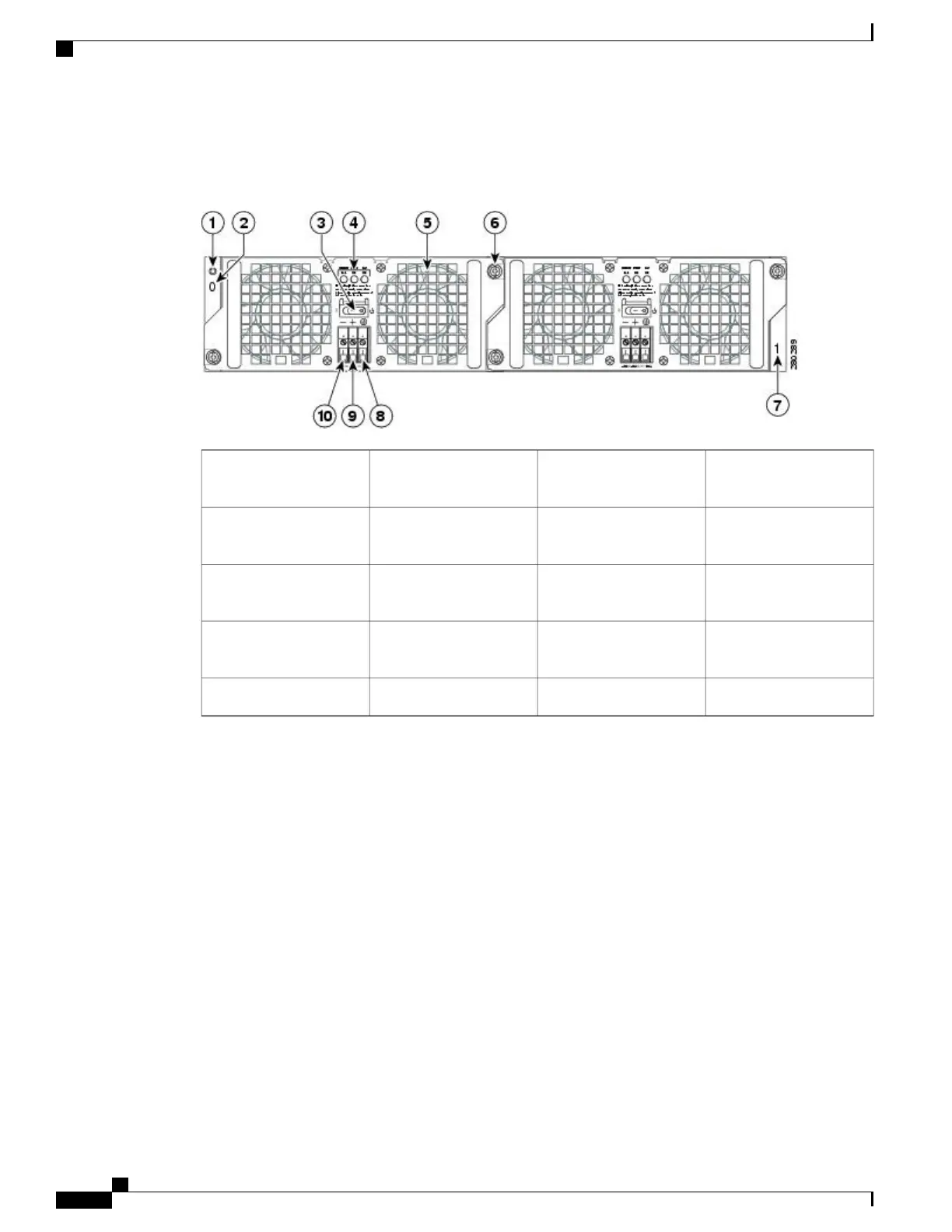

Figure 104: – 48 VDC Power Supply for the Cisco ASR 1002 Router
–48 VDC power supply
captive installation screw
6Chassis ESD socket1
–48 VDC power supply
slot 1 label
7
–48 VDC power supply
slot 0 label
2
Ground lead8
–48 VDC power supply
switch Standby/On
3
Positive lead9
–48 VDC power supply
LEDs
4
Negative lead10Fan5
Table 61: Cisco ASR 1002 Router –48 VDC Power Supply LEDs , on page 261 describes the LEDs on the
Cisco ASR 1002 Router –48 VDC power supply.
Cisco ASR 1000 Series Router Hardware Installation Guide
260
Cisco ASR 1002 Router Overview and Installation
Connecting 48 VDC Input Power to Cisco ASR 1002 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
