Cisco ASR 1002 Hardware Installation Guide

The eUSB panel door on
the side of the Cisco ASR
1002 Router must not be
opened. There is a Do Not
Tamper label on the panel
door. Do not remove the
label. If there is a problem
with eUSB flash card, the
chassis should be
returned.

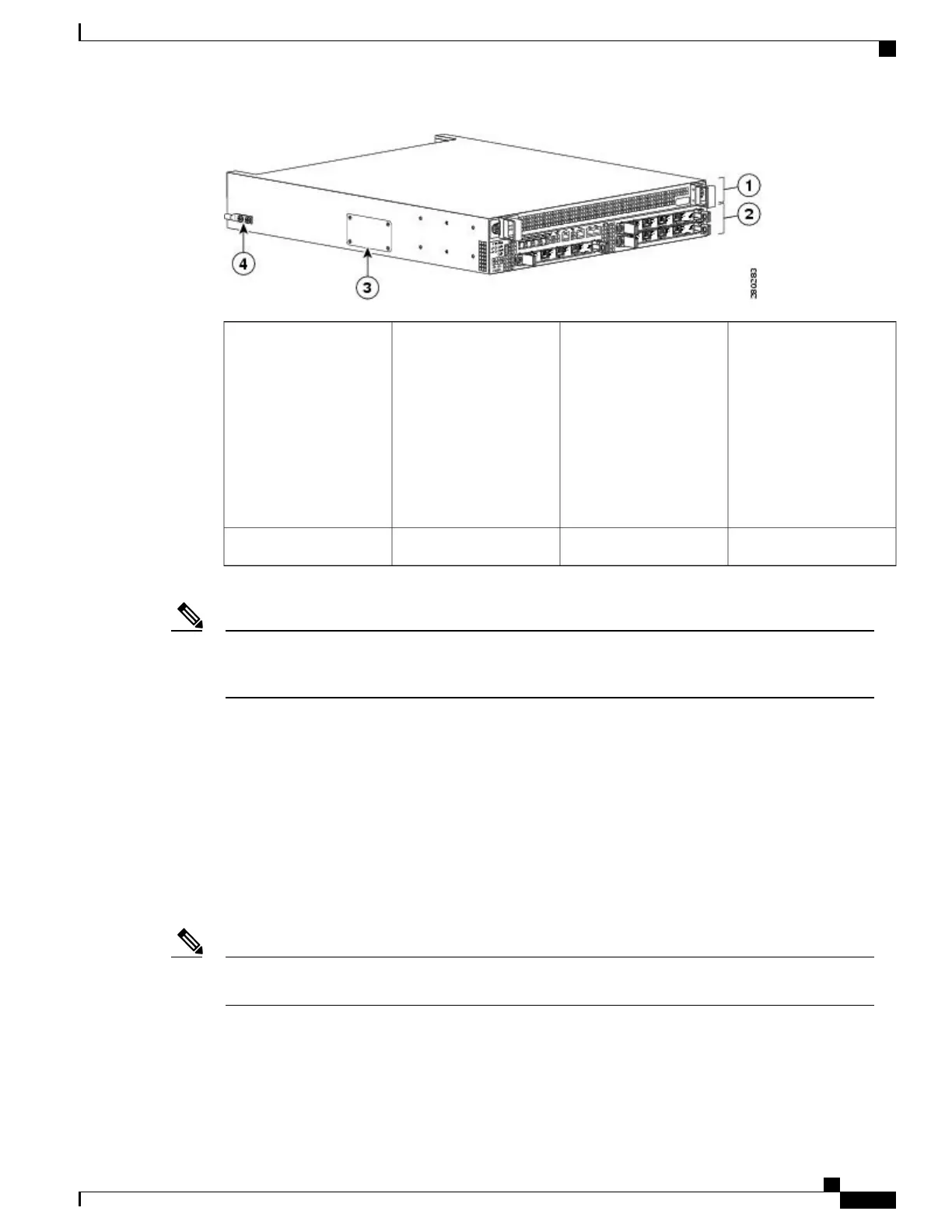

3F0 slot1
Grounding stud location4R0 slot2
Unless otherwise noted, features for the Cisco ASR 1002-F Router are the same as the Cisco ASR 1002
Router. The Cisco ASR1002-ESP-F supports 2.5 Gbps, and it is integrated in the chassis. It is not a
field-replaceable unit.
Note
How Cisco ASR1000-RP Alarm Monitoring Works
The Cisco ASR1000-RP1 or Cisco ASR1000-RP2 faceplate displays the CRIT, MAJ, and MIN alarm indicator
LEDs. An external element can be connected to a power supply using the DB-25 alarm connector on the
power supply. The external element is a DC light bulb for a visual alarm and a bell for an audible alarm.
If an alarm illuminates the CRIT, MIN, or MAJ LED on the Cisco ASR 1000 Series Route Processor (RP)
faceplate, and a visual or audible alarm is wired, the alarm also activates an alarm relay in the power supply
DB-25 connector (on the Cisco ASR 1006 Router and Cisco ASR 1004 Router). The bell rings or the light
bulb flashes and alerts site personnel that a router alarm condition exists.
Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power
supplies, in order to comply with the FCC/EN55022/CISPR22 Class A emissions requirements.
Note
The alarm signals sent to this DB-25 connector are identical in function to those sent to the system LEDs on
the Cisco ASR1000-RP1 and Cisco ASR1000-RP2. Each alarm consists of three contact pins that are switched
when an alarm becomes active which causes a corresponding contact closure between the DB-25 connector
Cisco ASR 1000 Series Router Hardware Installation Guide
47
Cisco ASR 1000 Series Routers Component Overview
How Cisco ASR1000-RP Alarm Monitoring Works

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
